- Page 1 IMPORTANT! Nautilus Data Loggers Reference Guide Copyright © 2010 ACR Systems Inc. All Rights Reserved.
- Page 2 Nautilus Data Loggers Copyright © 2010 ACR Systems Inc. All Rights Reserved. All rights reserved. No parts of this work may be reproduced in any form or by any means - graphic, electronic, or mechanical, including photocopying, recording, taping, or information storage and retrieval systems - without the written permission of ACR Systems Inc.
- Page 3 TRADEMARK NOTICES TrendReader is a Registered Trademark of ACR Systems Inc.
- Page 4 LIMITED WARRANTY ACR Systems Inc. warrants the hardware to be free from defects in workmanship and components provided they are not abused or subjected to detrimental conditions. Refer to the warranty information included with your logger for details. Software is warranted for one year from the date of purchase, to operate in accordance with its programmed instructions.
-
Page 5: Table Of Contents
3 Nautilus 85/135 Temperature Logger ............................12 Description ................................Setup ................................Troubleshooting ................................4 APPENDIX A Nautilus 85/135 Sample Rates ............................14 How a Data Logger Stores Readings ..............................................................Sample Rate Tables Index Copyright © 2010 ACR Systems Inc. All Rights Reserved. - Page 6 For important information on how Nautilus data loggers work and how to use them, read the Introduction to Nautilus chapter. It will give you an overview of how the loggers work and how to configure them for your application. Next, read the chapter that deals with...
-
Page 7: Section I Nautilus Data Loggers

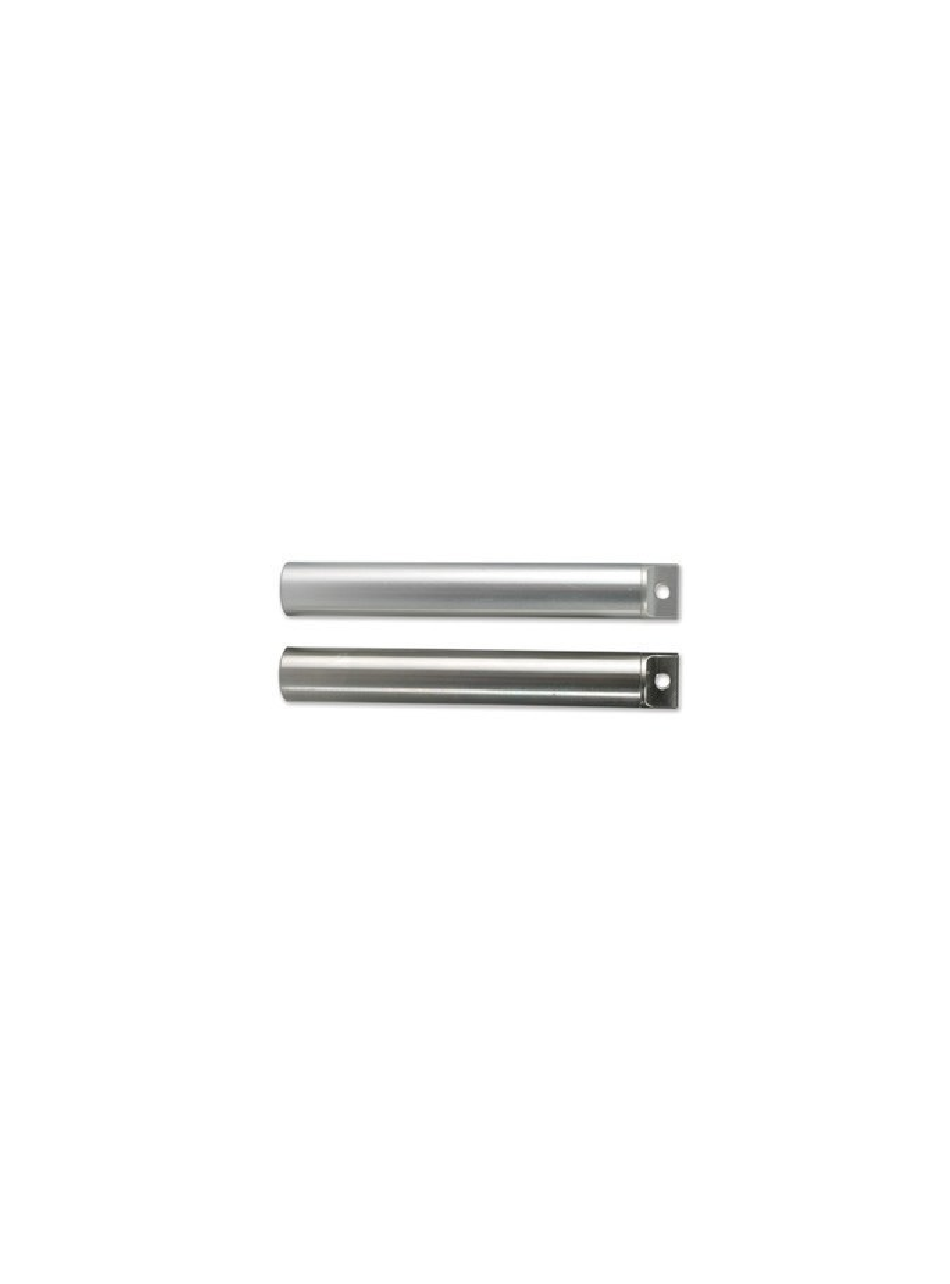

Designed for rugged applications, Nautilus loggers are available in stainless steel or aluminum. Nautilus loggers can hold over 500 days of data and features data compression capability. With extremely durable and robust construction and 10-year battery life, Nautilus loggers are your choice for temperature monitoring and logging in wet environments. -
Page 8: Programmed Operation
1.1.4 How Nautilus Loggers Take Readings Each Nautilus data logger has an on-board temperature sensor that you can use to record ambient temperature. You can turn this monitoring capability on or off using software. Nautilus data loggers can store readings to memory using one of two sampling methods: 1. -
Page 9: How To Use Nautilus Loggers
Test You can directly read the values that your Nautilus data logger is sensing using the Realtime capability of TrendReader software. This test gives you the opportunity to check your logger setup and make any necessary changes before starting the logging session. -
Page 10: Specifications
If you are retrieving the logger from the field, bring it back immediately to your computer for analysis. In order to analyze your Nautilus logger's data, you must first transfer a backup copy of its data to your computer. To do this, see Backup in the TrendReader guide. After transferring your information to the computer, the data is automatically copied to disk and time and date stamped. - Page 11 Nautilus Data Loggers Fluids: Material Use with These Fluids Do NOT Use with These ACR Part # Fluids DuPont Dow Viton Petroleum Oils, Gasoline, Acetone, H2S, Hot Water, 21-0071 Transmission Fluid Amines Ethylen Propylene Alcohols, Brake Fluids, Petroleum Oils, Diester...
-
Page 12: Product Approvals
Nautilus Data Loggers Equation: Use Equation [45] ET-016 Temperature in TrendReader software. Other equations for this thermistor type may be selected but will give incorrect results. You may also create your own equations, please refer to the Equations section or... -
Page 13: Nautilus Software Driver
Nautilus Data Loggers Nautilus Software Driver TrendReader software uses a software driver to communicate with Nautilus data loggers. The software driver takes the form of two windows. The Status window, shown when you contact the logger, is used to display the settings currently stored in the data logger. The Setup window, shown when you select Edit Setup, is used to alter the current settings and apply the changes to the data logger. -
Page 14: Logger Memory
Nautilus Data Loggers To find out more about sample rates and to view a set of sample rate tables, see Appendix A Sample Rates. The Mode is the way the logger stores the data. The Average method stores an averaged reading of the data read every 8 seconds over the sample interval you have chosen if the sampling mode is set to Average (this does not apply to a sampling interval of 8 seconds). - Page 15 Nautilus Data Loggers Full. To set the compression method click on the Compression field and select ON. A run length compression method is used. Run length compression stores the reading plus the number of consecutive times the same reading was measured. This means that the logger will store 2 values to memory, the data value and a counter value.
-
Page 16: Logger Channels
Nautilus Data Loggers 1.2.2 Logger Channels The Channels section indicates provides information specific to the channel. The channel on the logger is always enabled and continually recording readings and storing them in the logger's memory. The Channel subsections are Channel Information Channel Calibration. -
Page 17: Channel Calibration
To set each calibration value, click on the appropriate calibration field and enter the value. The factory equations for the Nautilus use the Low, Mid, and High values. Ext is not used. -
Page 18: Nautilus 85/135 Temperature Logger
1.3.1 Description The Nautilus 85 is a durable, robust data logger that can monitor temperature in a variety of applications but is particularly well suited for the food and beverage, biomedical, pharmaceutical, and industries with hostile or "wet" environments (i.e. wastewater treatment plant). -
Page 19: Troubleshooting
The individual sensor associated with your Nautilus 85 measures and records temperature only in one location. They do not, in any way, represent an overall reading. -
Page 20: Appendix A Nautilus 85/135 Sample Rates
The following tables list the maximum time spans over which your Nautilus will record readings. The time spans depend on the length of the sample rate. A Nautilus has a memory capacity of up to 32,640 readings when data compression not selected and up to 244,800 readings when data compression is selected. - Page 21 16 sec. 32 sec. 56 sec. 2 min. 4 min. 56 sec. 10 min. 20 min. 30 min. Table B-3: 32KB Nautilus 85/135 Sample Rate Table with Compression (5 times) Sample Rate Years Days Hours Minutes Seconds 8 sec. 16 sec.
- Page 22 16 sec. 32 sec. 56 sec. 2 min. 4 min. 56 sec. 10 min. 20 min. 30 min. Table B-7: 64KB Nautilus 85/135 Sample Rate Table with Compression (5 times) Sample Rate Years Days Hours Minutes Seconds 8 sec. Copyright © 2010 ACR Systems Inc. All Rights Reserved.
- Page 23 Nautilus Data Loggers 16 sec. 32 sec. 56 sec. 2 min. 4 min. 56 sec. 10 min. 20 min. 30 min. Table B-8: 64KB Nautilus 85/135 Sample Rate Table without Compression Sample Rate Years Days Hours Minutes Seconds 8 sec. 16 sec.
-
Page 24: Index
Nautilus Data Loggers Index - D - Data Logger 1 - L - Logger 1 - N - Nautilus 1 Approvals 6 Channel Calibration 11 Channel Information 10 Channels 10 Data Logger 1 Description 1 Features 1 How to Use 3... - Page 26 ACR Systems Inc. Building 210 - 12960 84th Ave. Surrey, British Columbia, Canada V3W 1K7 Telephone: (604) 591-1128 North American Toll Free: 1-800-663-7845 Fax: (604) 591-2252 General Enquiries Email: enquiry@acrsystems.com Sales Department Email: sales@acrsystems.com Customer Service Email: customerservice@acrsystems.com www.acrsystems.com...
