Specification
LICE24NHM
Model
1/3"CMOS
Pick up Element
700TV Line
Horizontal Resolution
0.001Lux/F1.2
Minimum Illumination
More than 46dB
S/N Ratio
2:1 interface
Scanning System
Internal, Negative sync.
Synchronous System
NTSC: 1/60s~1/100, 000s, PAL: 1/50s~1/100,000s
Auto Electronic Shutter
0.45
Gama Characteristic
20 Meters (with ￠5X24PCS Infrared LED)
IR Distance
Under 10Lux by CDS
IR Status
CDS AUTO Control
IR Power On
1Vpp, 75Ω
Video Output
Auto
Auto Gain Control
DC12V (+/-10%)/350mA
Power/Current
Board Lens 3.6mm/F2.0
Lens
86(W) x60(H) x55(D)
Dimension (mm)
400
Weight (g)
Storage Temperature
-30~+60℃ RH95% MAX
-10~+50℃ RH95% MAX
Operating Temperature
Packing List
No
Name
1.
Weatherproof IR Color Camera
LICE24NHM
2.
User Guide
LICE24NHM
Franchiser：
Model
Number
1
1
LICE24NHM Color Camera

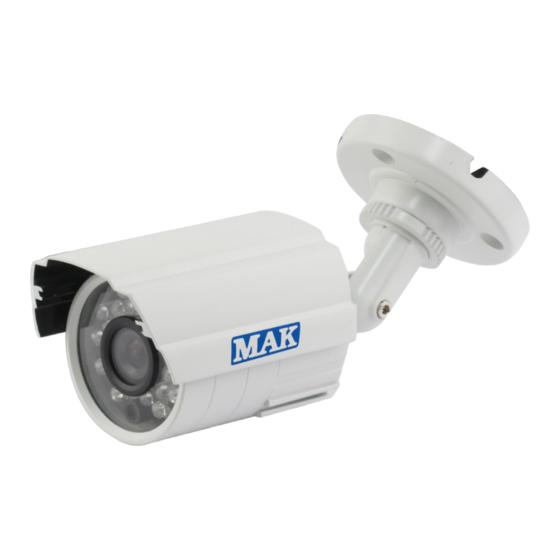

Weatherproof IR Color Camera
Notes:
Before providing power for the
camera, please read this User Guide in
detail!
Do not attempt to disassemble the camera.
If the camera can not work, please contact
local franchiser or our company.
Advertisement
Table of Contents
Related Manuals for MAK LICE24NHM
Summary of Contents for MAK LICE24NHM
- Page 1 Specification LICE24NHM Color Camera LICE24NHM Model 1/3"CMOS Pick up Element 700TV Line Horizontal Resolution 0.001Lux/F1.2 Minimum Illumination More than 46dB S/N Ratio 2:1 interface Scanning System Weatherproof IR Color Camera Internal, Negative sync. Synchronous System NTSC: 1/60s~1/100, 000s, PAL: 1/50s~1/100,000s Auto Electronic Shutter 0.45...
- Page 2 BRIEF OF PRODUCT INTRODUCTION CONNECTING Congratulations on your purchase of this product. * Sensor This User Guide suits LICE24NHM product. We adopt the latest CMOS technical of sensor and driver. The most at- Adopt CMOS 1/3" Sensor. Monitor Video tractive characteristics are small and easy hidden, suits the elevator and corridor.
