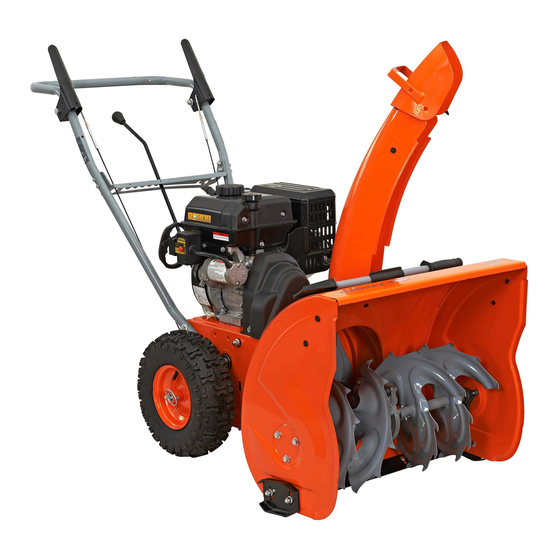

Two-Stage Snow Blower
Operator's Manual
MODEL NUMBER
YB6265
YB6270
SERIAL NUMBER
PURCHASE DATE
Both model number and serial
number may be found on the
main label. You should record
both of them in a safe place for
future use.
READ AND UNDERSTAND THE ENTIRE MANUAL BEFORE OPERATING MACHINE
FOR YOUR SAFETY
Save This Manual for Future Reference
Tame the Great Outdoors
®
Advertisement
Table of Contents
Related Manuals for YARDMAX YB6265
Summary of Contents for YARDMAX YB6265
- Page 1 Save This Manual for Future Reference Two-Stage Snow Blower Operator’s Manual MODEL NUMBER YB6265 YB6270 SERIAL NUMBER PURCHASE DATE Both model number and serial number may be found on the main label. You should record both of them in a safe place for future use.
-
Page 2: Table Of Contents
Up for the job? YARDMAX is. When looking for outdoor power equipment (OPE) to get the job done right, at the right price, YARDMAX delivers the perfect combination of performance and practicality. YARDMAX has a solution that’s right for you. - Page 3 California to cause cancer and birth defects DISCLAIMER or other reproductive harm. YARDMAX reserves the right to discontinue, change, and improve its products at any time without notice ENVIRONMENTAL or obligation to the purchaser. The descriptions and...
-
Page 4: Specifications
SUPPORT Have questions about your YARDMAX equipment? Call us at 844-YARDMAX, email us at support@yardmax.com, or contact us via your favorite social media site. SPECIFICATIONS Model number Yb6265 Yb6270 Clearing Width 24" Engine YARDMAX Displacement 196cc 208cc Start Type Recoil... -
Page 5: Symbols
Two-Stage Snow blower Operator’s Manual » SYMBOLS The rating plate on your machine may show symbols. These represent important information about the product or instructions on its use. Do not remove or tamper with the Read these instructions carefully. protection and safety devices. Wear eye protection. -
Page 6: Safety
SAFETY GENERAL SAFETY RULES Wear appropriate hearing protection. UNDERSTAND YOUR MACHINE Read this manual and labels affixed to the machine to understand Always keep hands and feet away from all moving parts during its limitations and potential hazards. operation. Moving parts can cut or crush body parts. be thoroughly familiar with the controls and their proper Always keep hands and feet away from all pinch points. - Page 7 Two-Stage Snow blower Operator’s Manual » ENGINE SAFETY Keep grounded conductive objects, such as tools, away from exposed, live electrical parts and connections to avoid sparking or This machine is equipped with an internal combustion engine. arcing. These events could ignite fumes or vapors. Do not use on or near any unimproved, forest covered, or brush covered land unless the exhaust system is equipped with a spark Always stop the engine and allow it to cool before filling the fuel...
-
Page 8: Unpacking The Container
Check clutch and brake operation frequently. Adjust and service Do not operate on steep slopes. Do not clear snow across the as required. All motion of drive wheels and auger/impeller must face of slopes. Keep all movement on slopes slow and gradual. Do stop quickly when control levers are released. -
Page 9: Contents Supplied
Two-Stage Snow blower Operator’s Manual » COnTEnTS SUPPLIED Your YARDMAX snow blower comes partially assembled and contains the following: Premium 4-Cycle NET CONTENTS 20 OZ (0.6 L) OPTIONAL OPTIONAL Handware Kit 1. Main Machine M6 X 30 2. Discharge Chute 3. -
Page 10: Assembly
ASSEMbLY This snow blower was partially assembled at the factory. To assemble your machine follow the below instructions. HANDLEBARS SPEED SHIFT LINKAGE Loosen the two bolts on the sides of the transmission housing. Remove the knob to slide the shift lever through the slot in the control panel. - Page 11 Two-Stage Snow blower Operator’s Manual » DISCHARGE CHUTE DIRECTIONAL CHUTE CONTROL Sit the chute crank flange on top of the impeller housing. Slide the spiral end of the directional chute control lever into Make sure the stop triangle points forward so that the the chute bracket.
- Page 12 Lift the machine so that the scrapper blade is 1/8” (3mm) above the ground, ensuring it is level. A piece of cardboard half the thickness of the snow blower packaging placed under the scrapper blade is recommended. Attach the skid shoes to the sides of auger housing with the bolts and nuts.
-
Page 13: Know Your Machine
Two-Stage Snow blower Operator’s Manual » KnOW YOUR MACHInE FEATURES AND CONTROLS Chute Deflector Handle Shear Pin Drive Clutch Lever Auger Gearcase Auger Clutch Lever Scraper Blade Speed Shift Lever Auger Directional Chute Control Chute Deflector Belt Cover Discharge Chute Chute Clean-Out Tool Drift Cutters (Optional) Skid Shoes... - Page 14 YARDMAX ENGINE Fuel Filler Cap Primer Throttle Control Choke Control Engine ON/OFF Switch Fuel Shutoff Valve Engine Oil Fill Cap w/ Dipstick Recoil Starter Handle LCT ENGINE Fuel Filler Cap Choke Recoil Starter RUN/STOP Switch Electric Start Button Primer Power Cord Plug...
- Page 15 Two-Stage Snow blower Operator’s Manual » SPEED SHIFT LEVER Always release the drive clutch lever before changing The speed shift lever has 8 positions: 6 forward speeds. Failure to do so will result in damage to the speeds and 2 reverse. To change speeds, move the snow blower.
- Page 16 CHOKE CONTROL Do not substitute. Use only original equipment shear The choke control is used to choke the carburetor pins as supplied with your snow blower. and assist in starting the engine. The choke control switches between the CHOKE CLOSED CHOKE OPEn positions.
-
Page 17: Adjustment
Two-Stage Snow blower Operator’s Manual » ADJUSTMEnT SKID SHOES AUGER CLUTCH AND DRIVE CLUTCH Position the skid shoes based on surface conditions. When auger clutch lever or drive clutch lever is For removal of snow in normal conditions, such as released and in the disengaged position, the cable a paved driveway or sidewalk, place skid shoes in should have very little slack. - Page 18 DRIFT CUTTERS (OPTIONAL) Drift cutters break up snow drifts that are taller than the auger housing and direct the snow into the auger. Store the drift cutters on the auger housing when not in use. Reposition drift cutters so they face forward as shown.
-
Page 19: Operation
Two-Stage Snow blower Operator’s Manual » OPERATION FREEWHEELING AND SELF-PROPELLING STARTING AND STOPPING THE ENGINE Use the axle lock pin to lock or unlock the right or left wheel. Lock both wheels to increase traction; unlock one wheel to allow for Before starting the engine, check engine oil level and easier turning of the unit;... - Page 20 COLD START - RECOIL STARTER The best time to remove snow is the early morning. At this time the snow is usually dry and has not been exposed to the direct sun 1. be sure fuel shutoff valve is in the OPEn position. and warming temperatures.
-
Page 21: Maintenance
Two-Stage Snow blower Operator’s Manual » MAInTEnAnCE ENGINE Refer to the Engine Operator’s Manual. LUBRICATION AUGER GEARBOX Grease The gearbox was filled with lubricant to the proper level at the factory. Unless there is evidence of leakage or service has been performed on the gearbox, no additional lubricant should be required. -
Page 22: Service
SERVICE REPLACEMENT SHEAR PINS AUGER BELT REPLACEMENT A pair of replacement auger shear pins and clevis pins are If the auger belt becomes worn, oil-soaked, or otherwise damaged, included with your snow blower. Store them in a safe place until proceed as follows to replace the belt. - Page 23 Two-Stage Snow blower Operator’s Manual » b. Pivot the idle pulley toward the right to relieve tension. c. Lift the drive belt off engine pulley. (See Figure 18a) Figure 17c 6. Release the spring from the connecting hole in the braking bracket.
- Page 24 FRICTION WHEEL REPLACEMENT If an assistant is available, you can also separate the auger housing from the frame assembly to replace belts. If the snow blower fails to drive with the drive clutch engaged, and performing the clutch control cable adjustment fails to correct the 1.
-
Page 25: Storage
Two-Stage Snow blower Operator’s Manual » 6. Remove the other bearing from the left side of the frame by If you only want to replace the rubber ring, proceed as follows: removing the snap ring. 1. Remove the eight screws which secure the friction wheel’s side plates together. -
Page 26: Troubleshooting
TROUbLESHOOTInG Problem Cause Remedy 1. Connect the extension cord to the 1. Extension cord not connected outlet and/or the machine Electric starter does 2. The extension cord is worn, not turn(on models so 2. Replace the extension cord corroded, or damaged equipped) 3. - Page 27 Two-Stage Snow blower Operator’s Manual » The engine overheats Carburetor not adjusted properly Contact a qualified repair personnel Tighten all fasteners or replace damaged Excessive vibration Loose parts or damaged parts parts 1. Spark plug wire loose 1. Tighten spark plug wire Loss of power 2.
-
Page 28: Parts Diagram
PARTS DIAGRAM Parts Diagram YB6270PM01 - 1708... - Page 29 Two-Stage Snow blower Operator’s Manual » Parts Diagram YB6270PM01 - 1708...
-
Page 30: Parts List
PARTS LIST Description Description Description 1 Oil Seal M10x1 20 Half Round Key 5x7.5x19 39 Screw ST5.5x13 2 Spiral Assembly-Right 21 ball bearing 6001-2RS 40 Chute Clean-Out Tool 3 FT bolt M6x20 22 Roll Pin 6x37 41 Clean-Out Tool Mounting bracket 1 4 Spring Washer 6 23 Impeller Shaft 42 Chute Crank Flange... - Page 31 Two-Stage Snow blower Operator’s Manual » Description Description Description 58 Flat Washer 6 96 nut M6 134 Jam nut 5/16-24unf 59 FT bolt M6x20 97 FT bolt M6x25 135 FT bolt M8x35 60 Handle Knob Assembly 98 bolt M6x30 136 Flat Washer 10 61 Lock Washer 99 Lock nut M6 137 Flange Lock nut M8...
- Page 32 Tame the Great Outdoors ® 1850 W Winchester Rd, Suite 106 Libertyville, IL 60048 844-YARDMAX info@yardmax.com (844-927-3629)
