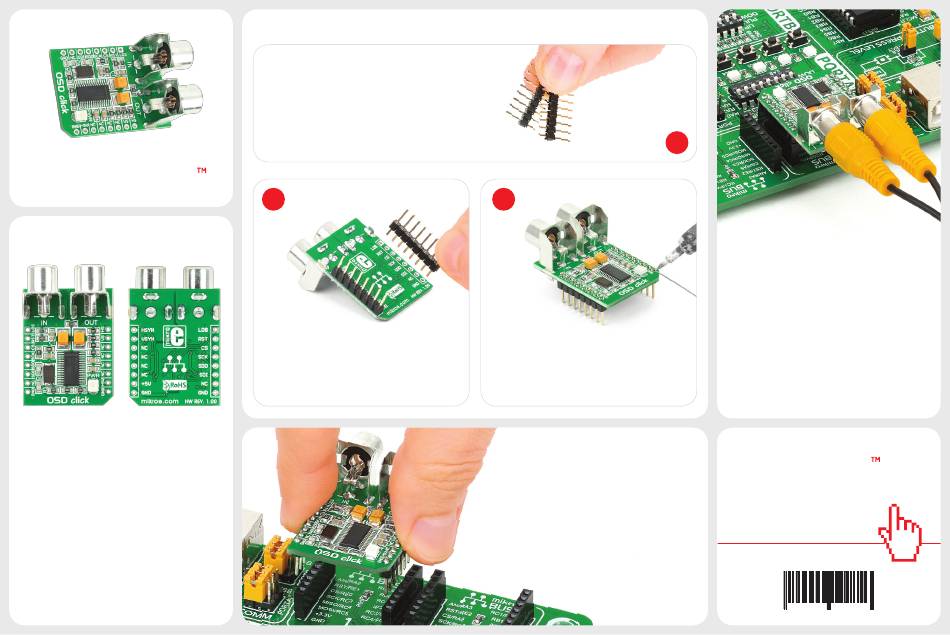

MicroElektronika click OSD Quick Start Manual

OSD
click
1. Introduction
OSD Click is an add-on board in mikroBUS
™
form factor. It's a compact and easy solution for
adding monochrome on-screen display (OSD)
generator to your design. It features MAX7456
single-channel monochrome OSD module with
integrated EEPROM memory as well as two
RCA sockets. OSD Click communicates with
™
target board microcontroller via mikroBUS
SPI (SDI, SDO, SCK, CS#), RST, LOS, HSYNC and
VSYNC lines. The board is designed to use 5V
power supply only. LED diode (Green) indicates
the presence of power supply.
2. Soldering the headers
Before using your click board™, make sure
to solder 1x8 male headers to both left
and right side of the board. Two 1x8 male
headers are included with the board in
the package.
2
Turn the board upside down so that
bottom side is facing you upwards. Place
shorter parts of the header pins in both
soldering pad locations.
™
™
1
3
Turn the board upward again. Make sure
to align the headers so that they are
perpendicular to the board, then solder the
pins carefully.
3. Plugging the board in
Once you have soldered the headers your
board is ready to be placed into desired
mikroBUS™ socket. Make sure to align the
cut in the lower-right part of the board
with the markings on the silkscreen at the
mikroBUS™ socket. If all of the pins are
aligned correctly, push the board all the way
into the socket.
4. Essential features
OSD Click™ with it's MAX7456 IC easily
displays information such as custom graphics,
time and date using 256 user-programmable
characters or pictographs. It is NTSC and PAL
compatible and displays up to 16 rows x 30
characters. MAX7456 has internal sync
generator. All these features make this board
ideal for security switching systems and
cameras, industrial applications, consumer
electronics and many more.
click
BOARD
www.mikroe.com
OSD click Manual
ver. 1.00
