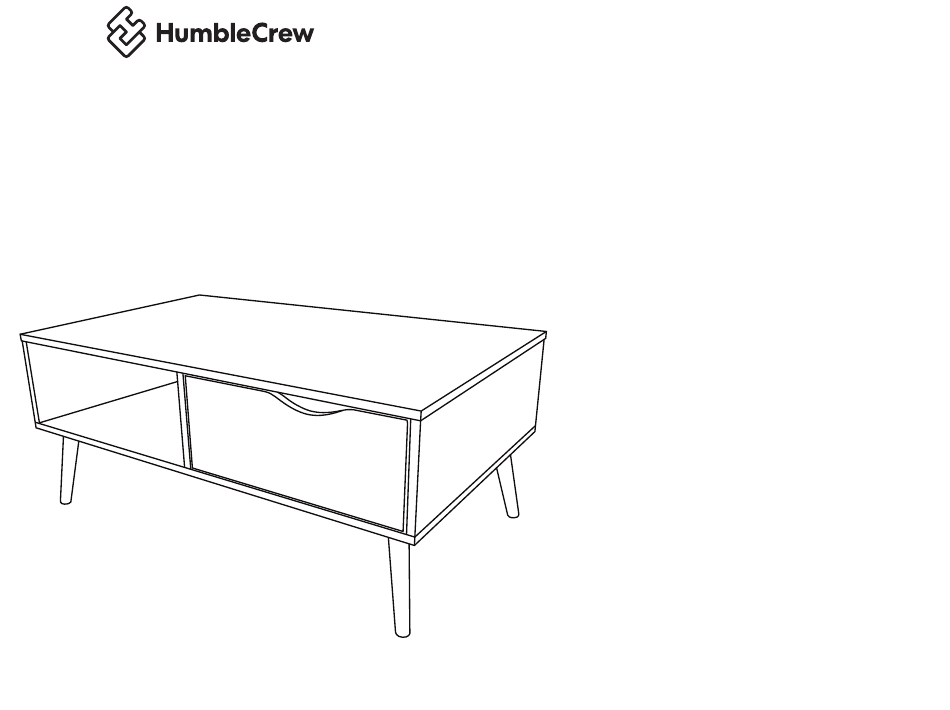

- Page 1 MAR20EM (844) 509-4888 www.humblecrew.com coffee table Product info Made in Malaysia Model: CF8609 Collection: Seine Cleaning Wipe with a damp cloth and mild soap Dry with soft, lint free cloth...
- Page 2 PAGE: 1 ASSEMBLY INSTRUCTIONS MODEL : DAWN-COFFEE TABLE CF8609 PAGE: Before you begin, please follow assembly instructions carefully, then follow them step by step. Before you begin, please make sure all parts are included. Read instructions carefully. If a part is missing or damaged, call our toll-free customer service number (844-509-4888) for help. We can ship you a replacement part free of charge.
- Page 3 PAGE: 2 ASSEMBLY INSTRUCTIONS CF8609 MODEL : STEP 1 STEP 2 - Insert hardware A1 onto panel (6). - Insert hardware A2 onto panel (1). (Repeat 4 times.) (Repeat 6 times.) PRESS ROTATE SCREWDRIVER REQUIRED SCREWDRIVER REQUIRED * Ensure the arrows on hardware A1 point towards mounting positions.
- Page 4 PAGE: 3 ASSEMBLY INSTRUCTIONS CF8609 MODEL : STEP 4 STEP 3 - Insert hardware A1 onto panel (4) and (5). - Insert hardware A1 onto panel (3) (Repeat 4 times.) (Repeat 2 times.) - Insert hardware A2 onto panel (4) and (5).
- Page 5 PAGE: 4 ASSEMBLY INSTRUCTIONS CF8609 MODEL : STEP 5 STEP 6 SCREWDRIVER - Fix hardware H1 (L/R) into panel (4) and (5) with hardware E . - Attach panel (4) and (5) to panel (6). REQUIRED - Insert all hardware A2 into A1.
- Page 6 PAGE: 5 ASSEMBLY INSTRUCTIONS CF8609 MODEL : STEP 7 STEP 8 SCREWDRIVER - Attach panel (1) to panel (3), (4) and (5). REQUIRED - Connect panel (2) to panel (3), (4) and (5) - Insert all hardware A2 into A1.
- Page 7 PAGE: 6 ASSEMBLY INSTRUCTIONS CF8609 MODEL : STEP 9 STEP 10 - Fix hardware G into panel (2) by using hardware E . - Assemble part 11 into hardware G. (Repeat 4 times for each hardware.) (Repeat 4 times.) ROTATE...
- Page 8 PAGE: 7 ASSEMBLY INSTRUCTIONS CF8609 MODEL : STEP 12 STEP 11 - Assemble panel (9) with panel (7) and (8) - Insert panel (10) along the slot. by using hardware F . (Repeat 1 times.) (Repeat 4 times.) ROTATE SCREWDRIVER REQUIRED www.humblecrew.com...
- Page 9 PAGE: 8 ASSEMBLY INSTRUCTIONS CF8609 MODEL : STEP 14 STEP 13 - Assemble hardware H2 (L/R) to panel (9) by using hardware E . - Assemble panel (9) with panel (7) and (8) by using hardware F . (Repeat 3 times for each hardware.) (Repeat 4 times.)
- Page 10 PAGE: 9 ASSEMBLY INSTRUCTIONS CF8609 MODEL : STEP 15 - Put all the drawer in place along the drawer slides. www.humblecrew.com (844) 509-4888...
