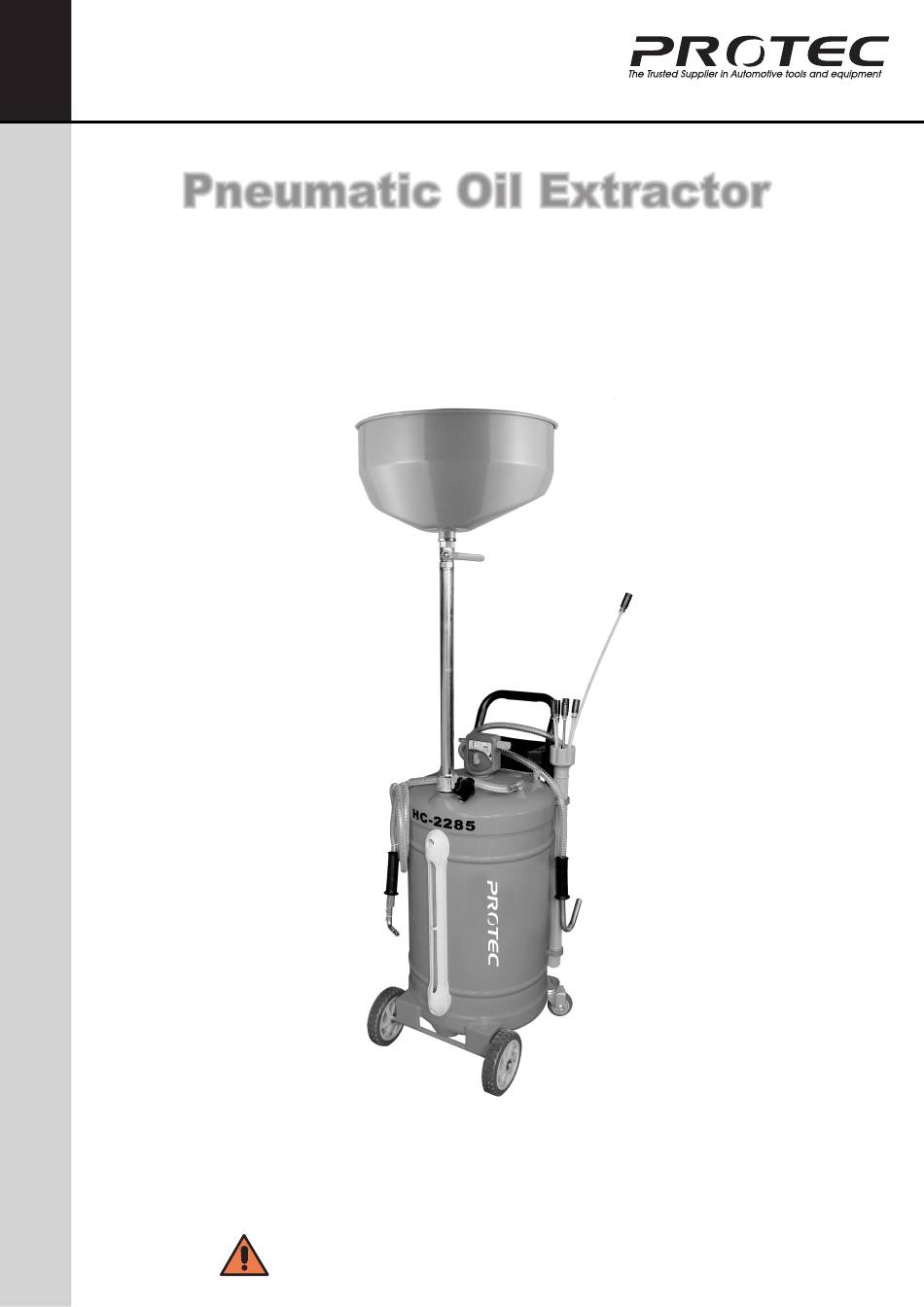

- Page 1 We follow the way that wheel moving! Pneumatic Oil Extractor HC-2285 INSTRUCTION & MAINTENANCE MANUAL Read this entire manual carefully and completelybefore installation or operation of the Pneumatic Oil Extractor...
-
Page 2: Safety Warnings And Precautions
Safety Warnings and Precautions WARNING: When using tool, basic safety precautions should always be followed to reduce the risk of personal injury and damage to equipment. 1. Keep work area clean. Cluttered areas invite injuries. 2. Observe work area conditions. Do not use machines or power tools in damp or wet locations. Don’t expose to rain. - Page 3 1. Do not smoke near this equipment. 2. Firework is strictly prohibited during operation, keep away from heat, high voltage, flammable and explosive place 3. Use in a well ventilated area. 4. When leaks are found in the equipment or hoses, immediately turn the air pressure off and repair the leaks.
- Page 4 Specification: Functions: Remove and extract waste fluids or oil out from engine and etc. with flexible PVC tube and robust CU probe. Power from compressed air Air Inlet Pressure:： 6～8bar/ 87~116PSI Ejection pressure： 0.7～1 bar/ 10～15PSI 150L/MIN Air consumption: Vacuum Degree: 0～-1 bar/-15PSI Tank Capacity: 80L(21.1Gallon)
- Page 5 Operation Instruction 1. Vacuum Generation Turn off all valves BEFORE use. Connect the air compressor to the air inlet(Part No.32HC-0801), gradually turn on the air inlet ball valve (Part No.32HC-0803)for vacuumization. When finger reaching to the MAX. area on the vacuum gauge, turn off the air inlet valve for completion of vacuum extraction.
-
Page 6: Tank Emptying
3. Oil collection from oil tray FIG.5 lift the vehicle up with workshop lift, move the oil extractor below car engine, oil tray position right under the vehicle oil drain hole. Release plum knob to adjust lifting pole , tighten plum knob (to fix its height, open ball valve under the oil tray ，release oil drain bolt for oil collection from vehicle. - Page 7 ７...
- Page 8 BOM Part List name unit 22HC-0101 tank 21HC-0201 directional wheel 21HC-0202 snap ring 21HC-0301 universal wheel 21HC-0302 21HC-0501 level pipe 21HC-0502 elbow connector 21HC-0503 level pipe protector 21HC-0504 hexagonal screw 21HC-0701 pressure gauge 21HC-0804 straight connector 21HC-1104 straight connector 21HC-1105 vacuum generator protector 21HC-1801 oil drain hose...
- Page 9 32HC-1701 extraction oil hose 32HC-1702 oil extraction hook 32HC-1703 mini ball valve 32HC-1704 seal ring 32HC-1901 tool box 32HC-1903 32HC-2103 seal ring 32HC-2104 brake sleeve 32HC-2107 knob 32HC-2201 probe sleeve 32HC-2202 oil cup 32HC-2301 oil extraction probe 32HC-2302 oil extraction probe 32HC-2303 oil extraction probe 32HC-2304...
