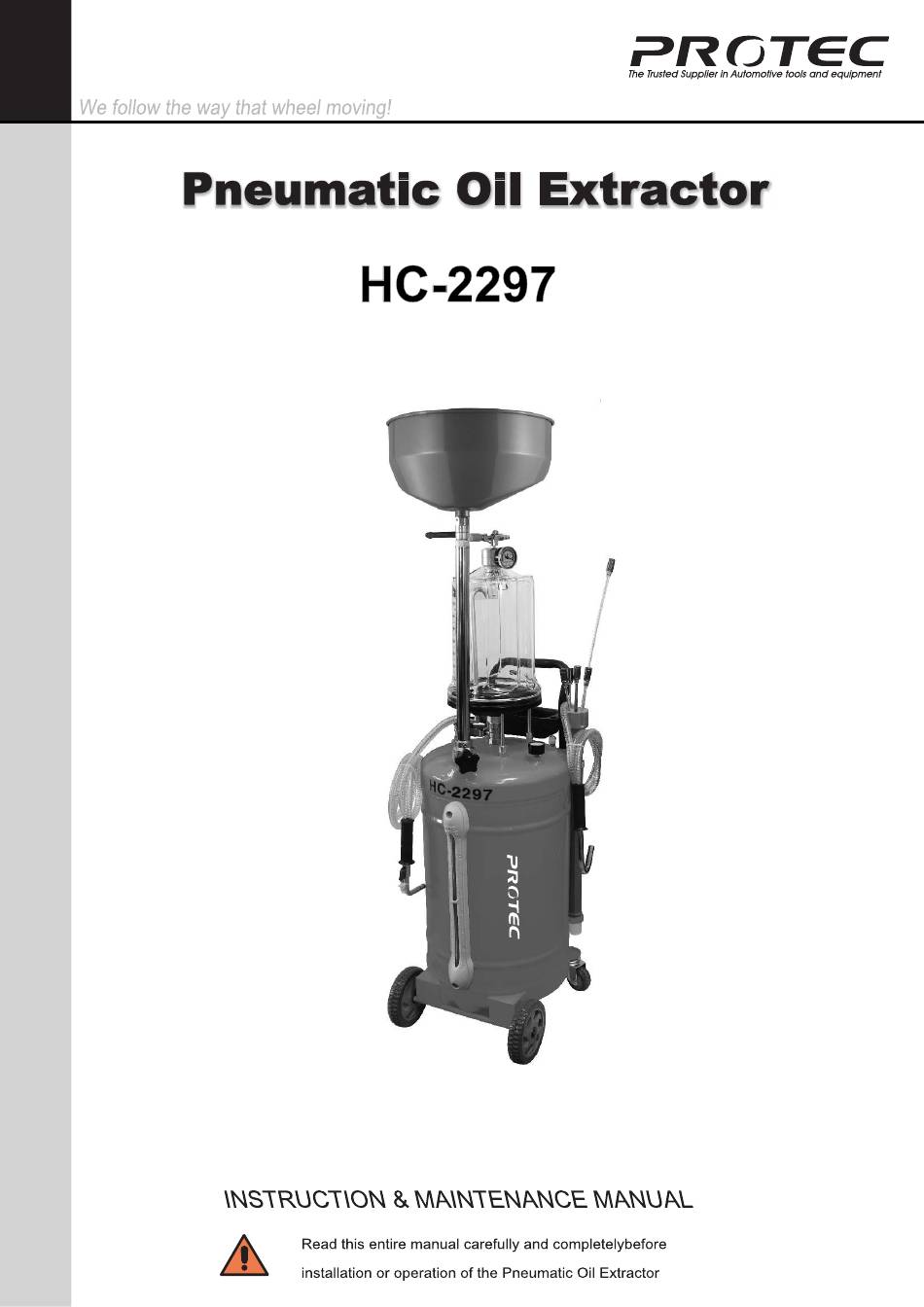

Summary of Contents for Protec HC-2297
-
Page 2: Safety Warnings And Precautions
Safety Warnings and Precautions WARNING: When using tool, basic safety precautions should always be followed to reduce the risk of personal injury and damage to equipment. 1. Keep work area clean. Cluttered areas invite injuries. 2. Observe work area conditions. Do not use machines or power tools in damp or wet locations. Don’t expose to rain. - Page 3 Product specific safety precautions This equipment is designed be operated by qualified personnel. It should only be operated after reading and understanding the safety warnings and operating procedures in this instruction manual. 1. Do not smoke near this equipment. 2. Firework is strictly prohibited during operation, keep away from heat, high voltage, flammable and explosive place 3.
- Page 4 and measurement. 3. Use compressed air as power source; guarantee the safety in use, Eco friendly and low power consumption 4. Vacuum cylinder and oil tank at a same time, increase oil extraction speed 5. Different diameter of oil suction probes to meet the need of different type of cars 6.
- Page 5 One Complete Measuring Glass/Cylinder One Oil Collecting Bowl/tray One Strain Probes 6 pcs with sleeve User’s Manual Operation Instruction 1) Vacuum Generation with Cylinder 1. Operating air pressure: 6～8bar/ 87～116PSI. 2. Make sure all valves are close. (FIG.1)connect air source with air inlet(Part No.32HC-0801) , turn on air valve for vacuum extraction, When finger reaching to the MAX area on the vacuum gauge, turn off air inlet valve .
- Page 6 FIG.2 FIG.3 FIG.4 NOTICE: Do not exceed maximum oil extraction temperature 60℃. Hold the hose protection sheath during extraction to avoid scald Place the machine in a flat ground to avoid sliding under working condition Oil temperature higher than 80 ℃ will cause seriously damage to the components, in worst case it could lead to machine failure.
- Page 7 3. Release plum knob to adjust lifting pole . tighten plum knob to fix its height, open wing valve(Part No. 21HC-2106), release oil drain bolt for oil collection from vehicle. 5) Tank Emptying When the oil retained in tank near full(see oil window), You need to eject oil out into a disposal tank and resolve the waste oil accordingly to the instruction of local government.
- Page 8 ８...
- Page 9 BOM Part List name unit 22HC-0101 tank 21HC-0201 directional wheel 21HC-0202 snap ring 21HC-0301 universal wheel 21HC-0302 21HC-0501 level pipe 21HC-0502 elbow connector 21HC-0503 level pipe protector 21HC-0504 hexagonal screw 21HC-1204 hexagonal screw 21HC-1301 cylinder base 21HC-1302 absorbing oil pipe 21HC-1305 connecting centre rod 21HC-1601...
- Page 10 32HC-1702 oil extraction hook 32HC-1703 mini ball valve 32HC-1704 seal ring 32HC-1901 tool box 32HC-1903 32HC-2201 probe sleeve 32HC-1005 ball valve 32HC-1006 hand lever 32HC-1007 32HC-2202 oil cup 32HC-2301 oil extraction probe 32HC-2302 oil extraction probe 32HC-2303 oil extraction probe 32HC-2304 oil extraction probe 32HC-2305...
- Page 11 32HC-2104 brake sleeve 32HC-2107 knob 22HC-4303 locating sleeve 22HC-4304 hex socket set screw 22HC-4307 lift 21HC-3805 seal ring 21HC-3806 screw 21HC-3807 ball valve １１...
