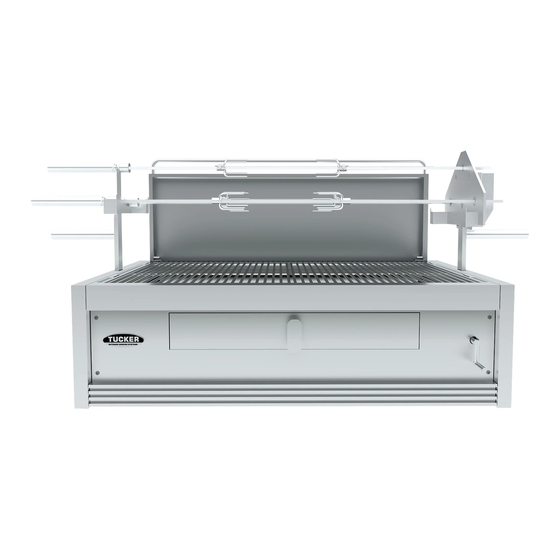

Summary of Contents for Tucker Barbecues Charcoal Deluxe Built In
- Page 1 ASSEMBLY , INSTALLATION AND OPERATING INSTRUCTIONS CHARCOAL DELUXE BARBECUE INSULATION JACKET IMPORTANT – PLEASE READ ALL INSTRUCTIONS BEFORE YOU ASSEMBLE, INSTALL OR OPERATE THIS APPLIANCE. V29.04.2021...
-
Page 2: Table Of Contents
CONTENTS IMPORTANT SAFETY INSTRUCTIONS INSULATION JACKET ASSEMBLY INSTRUCTIONS INSTALLATION INSTRUCTIONS & WARNINGS DIMENSIONS WARRANTY... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS • Tucker Charcoal Deluxe Barbecues are • Placing to much charcoal in the barbecue approved for outdoor use only. can result in a huge fire that can damage the BBQ and cause danger. • Remove all plastic protection film from stainless steel components before assembly. -
Page 4: Insulation Jacket Assembly Instructions
INSULATION JACKET ASSEMBLY INSTRUCTIONS TOOLS REQUIRED FOR ASSEMBLY • Remove the pallet and any plastic film protecting or covering any parts of the Insulation Jacket. 10mm spanner • Cut away any packaging or cable ties that may be holding components in place. Phillips head screwdriver •... - Page 5 Charcoal Deluxe Insulation Jacket Assembly 1. Place the base panel onto your work surface with the stainless steel side face down and remove the foil insulation from the base panel. 2. Once the insulation is removed you can see and access the 6 x holes that you need to use to screw the 15mm phillips head bolts through to attach the side panels to the base panel.
- Page 6 4. Now you can attach the back panel to the side panels. Line up the bolt heads on the back of the side panels with the key holes in each corner of the back panel and push the back panel down over the bolt heads which will locate the back panel into position.
- Page 7 8. Now you are ready to attach the rear filler panel. Line up the key hole slots on the rear panel with the bolt heads on the back panel, now locate them over the bolt heads and push the rear filler panel down locking it into position.
- Page 8 9. Next is the attachment of the grease / ash tray fascia to the front of the insulation jacket, before you do this, using the 2 x 20mm bolts and nuts , screw one into each side of the base panel at the front of the jacket.
- Page 9 14. The Insulation Jacket is now complete and ready for the charcoal deluxe BBQ to be inserted into. 15. Remove the grease /ash tray from the BBQ and lower the BBQ into the jacket. To secure the BBQ into the Insulation Jacket use the 8 x 65mm bolts and push them through the four holes on either side of the Insulation Jacket side panels.
- Page 10 Do not use a drill to tighten any nuts and bolts The grease / ash tray has an adjustable height front fascia on it, which is helpful over time as together in the Insulation Jacket assembly. the heat from the ash will cause the tray to Using a drill to tighten them together makes expand and contract.
-
Page 11: Installation Instructions & Warnings
INSTALLATION INSTRUCTIONS & WARNINGS INSTALLATION INSTRUCTIONS DIAGRAMMATICAL REPRESENTATIONS OF OUTDOOR AREAS READ THE IMPORTANT INFORMATION ON THE FRONT OF THE BARBECUE The following figures are diagrammatical representations of outdoor areas. The areas used in the figures below are examples – the This barbecue and Insulation Jacket are designed and approved for outdoor use only. - Page 12 FIGURE 4 OUTDOOR AREA –EXAMPLE 4 Open side at least 25% 30% or more in total of of total wall area the remaining wall area is open and unrestricted. OPEN AT SIDE AT LEAST 25% OF TOTAL WALL AREA. 30% OR MORE IN TOTAL OF THE REMAINING WALL AREA IS OPEN AND UNRESTRICTED FIGURE F5 –...
-
Page 13: Dimensions
DIMENSIONS CHARCOAL DELUXE INSULATION JACKET DIMENSIONS 670mm 540mm 525mm 600mm 280mm 30mm 280mm 280mm 320mm 320mm 560mm 40mm 920mm 600mm 80mm NOTE 920mm 40mm When Roasting hood is shut handle will pass front panel by 15mm this makes the 80mm hood to be 570mm deep. - Page 14 CHARCOAL DELUXE INSULATION JACKET BUILT-IN CUT-OUT DIMENSIONS 600-680mm 925mm 320mm 280mm 40mm Clearances above BBQ cooking surface to combustible walls are as follows: Clearance to rear walls 1000mm Clearance to side walls 1000mm Clearance above the BBQ cooking surface 1200mm IMPORTANT The insulation jacket is designed to offer zero clearance to combustible materials that can...
-
Page 15: Warranty
WARRANTY TUCKER CHARCOAL DELUXE INSULATION 6. Where this warranty is inconsistent with any state JACKET WARRANTY laws, the rights of the purchaser shall prevail. 7. Parts installed from other manufacturer’s products will nullify this warranty. WARRANTY PERIOD Stainless steel body 10 years NOT COVERED The warranty does not cover the purchaser or any... - Page 16 NOTES...
- Page 18 TUCKER AUSTRALIA PTY LTD. 138 Silverwater Road Silverwater NSW 2128 AUSTRALIA. PHONE: (+612) 9748 8368 FAX: (+612) 9748 8138 WEB SITE: www.tuckerbbq.com.au EMAIL: mail@tuckerbbq.com.au...
