Model Number: ____________________
Número del modelo
Numéro de modèle
Register Online
Regístrese en línea
S'enregistrer en ligne
www.deltafaucet.com/registerme
To reference replacement parts and access additional
technical documents and product info,
visit www.deltafaucet.com
Para referencia sobre las piezas de repuesto y acceder
a documentos técnicos adicionales e información del
producto, visite www.deltafaucet.com
Pour obtenir la référence des pièces de rechange ainsi
que pour avoir accès à d'autres documents techniques et
renseignements sur le produit, allez à www.deltafaucet.com
?
1-800-345-3358
www.deltafaucet.com/service-parts
Read all instructions prior to installation.
CAUTION
!
Failure to read these instructions prior to installation may result in personal
injury, property damage, or product failure. Manufacturer assumes no
responsibility for product failure due to improper installation.
Lea todas las instrucciones antes de hacer la instalación.
ADVERTENCIA
!
El no leer estas instrucciones de instalación puede resultar en lesiones
personales, daños a la propiedad, o falla en el funcionamiento del producto.
El fabricante no asume ninguna responsabilidad por la falla del producto
debido a una instalación incorrecta.
Veuillez lire toutes les instructions avant l'installation.
AVERTISSEMENT
!
L'omission de lire les présentes instructions avant l'installation peut
entraîner des blessures, des dommages matériels ou le bris du produit. Le
fabricant se dégage de toute responsabilité à l'égard d'un bris du produit
causé par une mauvaise installation.
You may need:
Usted puede necesitar:
Articles dont vous pouvez avoir besoin :
1/8" (3.17mm)

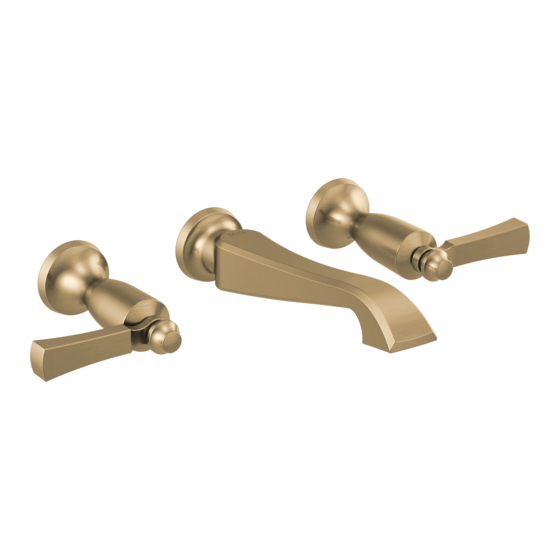

TWO HANDLE WALL MOUNTED BATHROOM FAUCET TRIM
102360
LLAVES DE AGUA - GRIFOS - DE DOS MANIJAS PARA
INSTALACIÓN EN LA PARED
ROBINETS MURAUX À DEUX MANETTES POUR LAVABO
Rough-in R3500-WL required for installation
Rough-in R3500-WL necesario para la instalación
Rough-in R3500-WL requis pour l'installation
Image is for reference only.
La imagen es sólo para referencia.
L'image est fournie à titre indicatif seulement.
1
1/8" (3.17mm)
08/04/2021 Rev. D
Advertisement
Related Manuals for Delta DORVAL
Summary of Contents for Delta DORVAL
- Page 1 TWO HANDLE WALL MOUNTED BATHROOM FAUCET TRIM 102360 LLAVES DE AGUA - GRIFOS - DE DOS MANIJAS PARA INSTALACIÓN EN LA PARED ROBINETS MURAUX À DEUX MANETTES POUR LAVABO Rough-in R3500-WL required for installation Model Number: ____________________ Número del modelo Rough-in R3500-WL necesario para la instalación Numéro de modèle Rough-in R3500-WL requis pour l'installation...
- Page 2 Cleaning and Care Care should be given to the cleaning of this product. Although its finish is extremely durable, it can be damaged by harsh abrasives or polish. To clean, simply wipe gently with a damp cloth and blot dry with a soft towel. Limpieza y Cuidado de su Llave Tenga cuidado al limpiar este producto.
- Page 3 SPOUT FLANGE AND SPOUT INSTALLATION FLUSH YOUR SYSTEM Pull off plasterguards (1) and discard them. Install spout flange (4) and gasket (3). Option: If mounting surface is uneven, apply suitable sealant to the back surface of gasket, according to the manufacturer’s instructions. Finished wall thickness can vary from 1/8"...
- Page 4 HANDLE FLANGE INSTALLATION (Your install will be one of the steps below.) INSTALACIÓN DE SOPORTE DEL MANGO (Su instalación se encuentra en uno de los siguientes pasos.) INSTALLER L’EMBASE (Votre installation est décrite dans l’une des étapes ci-dessous.) NOTE: When drilling holes for hot and cold end valves it is NOTE: When drilling holes for hot and cold end valves it is required that the hole size must be less than 1 3/4"...
- Page 5 HANDLE INSTALLATION (Your install will be one of the steps below.) (Su instalación se encuentra en uno de los siguientes pasos.) INSTALACIÓN DE LA MANIJA INSTALLATION DE LA MANETTE (Votre installation est décrite dans l’une des étapes ci-dessous.) Ensure that gasket (13) is installed onto handle (14). Thread handle (14) Install gasket (13) securing to wall using nut (15).
- Page 6 MAINTENANCE – VALVES MAINTENANCE – SPOUT SHUT OFF WATER SUPPLIES BEFORE SERVICING VALVE OR SHUT OFF WATER SUPPLIES BEFORE SERVICING VALVE OR SPOUT ASSEMBLIES SPOUT ASSEMBLIES If your faucet leaks out of spout or around handle body, replace valve cartridge If your faucet leaks at base of spout, replace spout tube O-rings (1).
- Page 7 102360 Rev. D...
- Page 8 Attention: Warranty Service St. Thomas, Ontario, Canada N5P 4L1 Delta seller by a purchaser who owns but does not live in the residential dwelling in which the faucet is initially installed, such as in a rented or www.deltafaucet.com/service-parts/contact-us Attention: Customer Service leased single unit or multi-unit detached home (duplex or townhome), or a condominium, apartment building or community living center.
