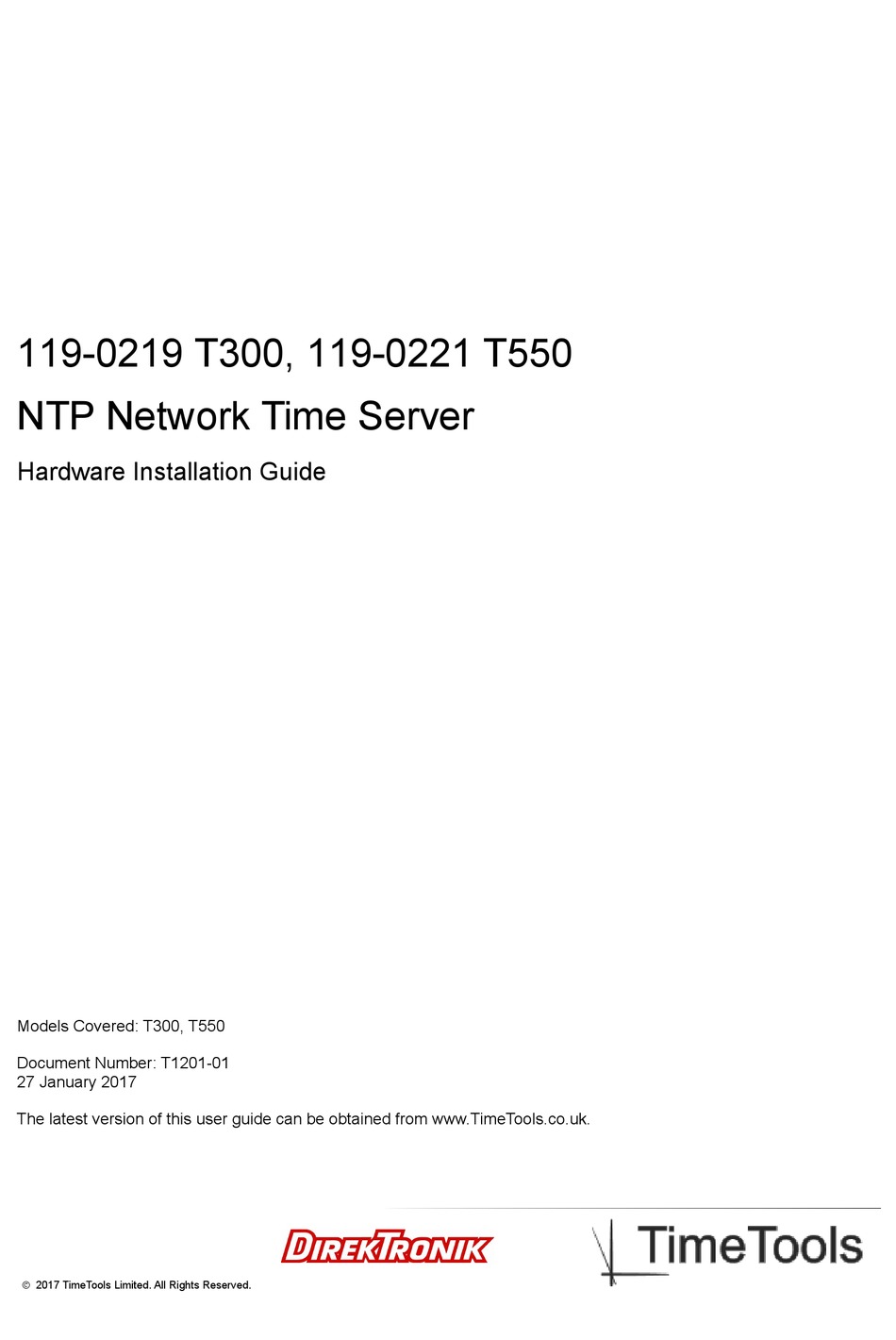

- Page 1 119-0219 T300, 119-0221 T550 NTP Network Time Server Hardware Installation Guide Models Covered: T300, T550 Document Number: T1201-01 27 January 2017 The latest version of this user guide can be obtained from www.TimeTools.co.uk. 2017 TimeTools Limited. All Rights Reserved.
- Page 2 For PERMANENTLY CONNECTED EQUIPMENT, a readily accessible disconnect device shall be incorporated external to the equipment. For PLUGGABLE EQUIPMENT, the socket-outlet shall be installed near the equipment and shall be easily accessible. 2017 TimeTools Limited. All Rights Reserved.
- Page 3 Full product documentation can be found on the supplied CD or at www.timetools.co.uk. While reasonable efforts have been taken in the preparation of this document to ensure its accuracy, TimeTools Limited assumes no liability resulting from any errors or omissions in this manual, or from the use of the information contained herein.
-
Page 4: Table Of Contents
6.5. Applying Power..............................11 7. Configuration............................12 8. Certification and Compliance......................... 13 8.1. RoHS Compliance Statement..........................13 8.2. REACH Regulation (EC) No 1907/2006........................13 8.3. Environmental Policy............................. 13 8.4. EC Declaration Of Conformity..........................13 9. Warranty..............................15 2017 TimeTools Limited. All Rights Reserved. -
Page 5: Introduction
Network Time Protocol (NTP) can be used to synchronize the time on network clients, across an IP network, to the correct time of an NTP time server. TimeTools NTP Servers provide a stratum 1 NTP Time Server for ensuring the time is correct across an entire network. -
Page 6: Scope Of Supply
T300 T550 Hardware Installation Guide. Page 6 3. Scope of Supply TimeTools T300 T550 shipment typically includes the following components: T300 Models: T300 NTP Time Server Appliance. T-3040 GPS Antenna. T550 Models: T550 NTP Time Server Appliance. T-3740 GNSS Antenna. -

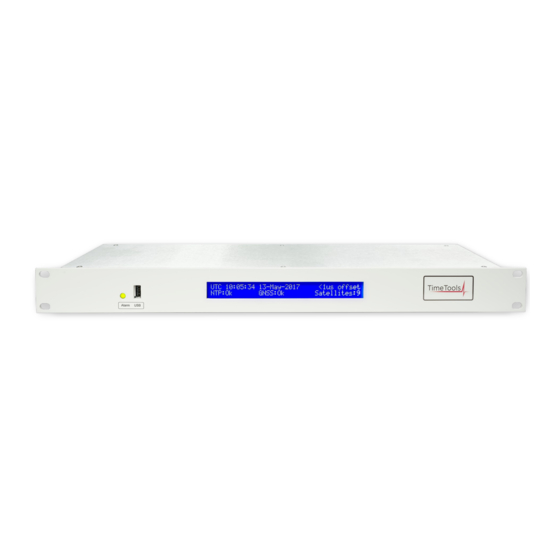

Page 7: Front Panel
A red / green bi-colour LED on the T300 T550 front panel indicates status and fault conditions. 4.3. USB Port A USB port is provided for convenient and easy installation of firmware updates. Standard USB flash memory devices can be used for firmware updates. 2017 TimeTools Limited. All Rights Reserved. -
Page 8: Rear Panel
GPS/GNSS Antenna Connection The GPS/GNSS antenna connector is a 50 ohm TNC female connector. It accepts a coax cable to a 5V GPS/GNSS antenna. Use only the antenna and cable supplied by TimeTools with the T300 T550. 2017 TimeTools Limited. All Rights Reserved. - Page 9 T300 T550 Hardware Installation Guide. Page 9 Connector: TNC female, 50 ohm Cable: Coax, 50 ohm Antenna Output Voltage: 5VDC 2017 TimeTools Limited. All Rights Reserved.
-
Page 10: Installation
When first installing the T300 T550 on your network, ensure that no other device on your network conflicts with the default IP address of the appliance. Default IP Address (Eth0): 192.168.3.222 Default IP Address (Eth1): DHCP Client 2017 TimeTools Limited. All Rights Reserved. -
Page 11: Connecting Rs232 Serial Console Cable
CAUTION: For PERMANENTLY CONNECTED EQUIPMENT, a readily accessible disconnect device shall be incorporated external to the equipment. For PLUGGABLE EQUIPMENT, the socket-outlet shall be installed near the equipment and shall be easily accessible. 2017 TimeTools Limited. All Rights Reserved. -
Page 12: Configuration
Using a web browser on a PC using a peer-to-peer (direct cable) network connection. • Using a dumb terminal emulator on a PC using a RS232 serial connection. • Please refer to the T-Series User Guide (Document Number T1300-01) for configuration information. 2017 TimeTools Limited. All Rights Reserved. -
Page 13: Certification And Compliance
REACH Regulation (EC) No 1907/2006 TimeTools hereby certifies that to the best of its knowledge, and based on our suppliers’ information, parts and products produced by TimeTools do not contain any of the substances referenced in the current list of Substances of High Concern (SVHCs are defined in Article 57 of Regulation (EC) No 1907/2006.) in concentrations greater than 0.1% weight... - Page 14 T300 T550 Hardware Installation Guide. Page 14 EC Declaration Of Conformity TimeTools Limited Unit 34 Wombourne Enterprise Park, Bridgnorth Road, Wombourne, South Staffordshire. WV5 0AL. UK. Declare that: TimeTools T300, T550 NTP Servers In accordance with the following directives: 1999/5/EC R&TTE Directive. 2011/65/EU Restriction of the use of certain hazardous substances.
-
Page 15: Warranty
TimeTools Solutions Service Centre. This Warranty does not apply if repairs are required due to acts of nature beyond TimeTools’ control such as, but not limited to, lightning strikes, power surges, misuse, damage, neglect, or if repairs/modifications have been made or attempted by anyone other than personnel authorized by TimeTools. - Page 16 T300 T550 Hardware Installation Guide. Page 16 TimeTools Limited. Tel: +44 (0) 1902 897400 Unit 34, Wombourne Enterprise Park, Fax: +44 (0) 870 123 1844 Bridgnorth Road, Wombourne, Email: info@TimeTools.co.uk South Staffordshire. Web: www.TimeTools.co.uk WV5 0AL. UK 2017 TimeTools Limited. All Rights Reserved.
