TimeTools T100 Hardware Installation Manual

Ntp network time server
Hide thumbs Also See for T100:
Table of Contents

Advertisement

Quick Links

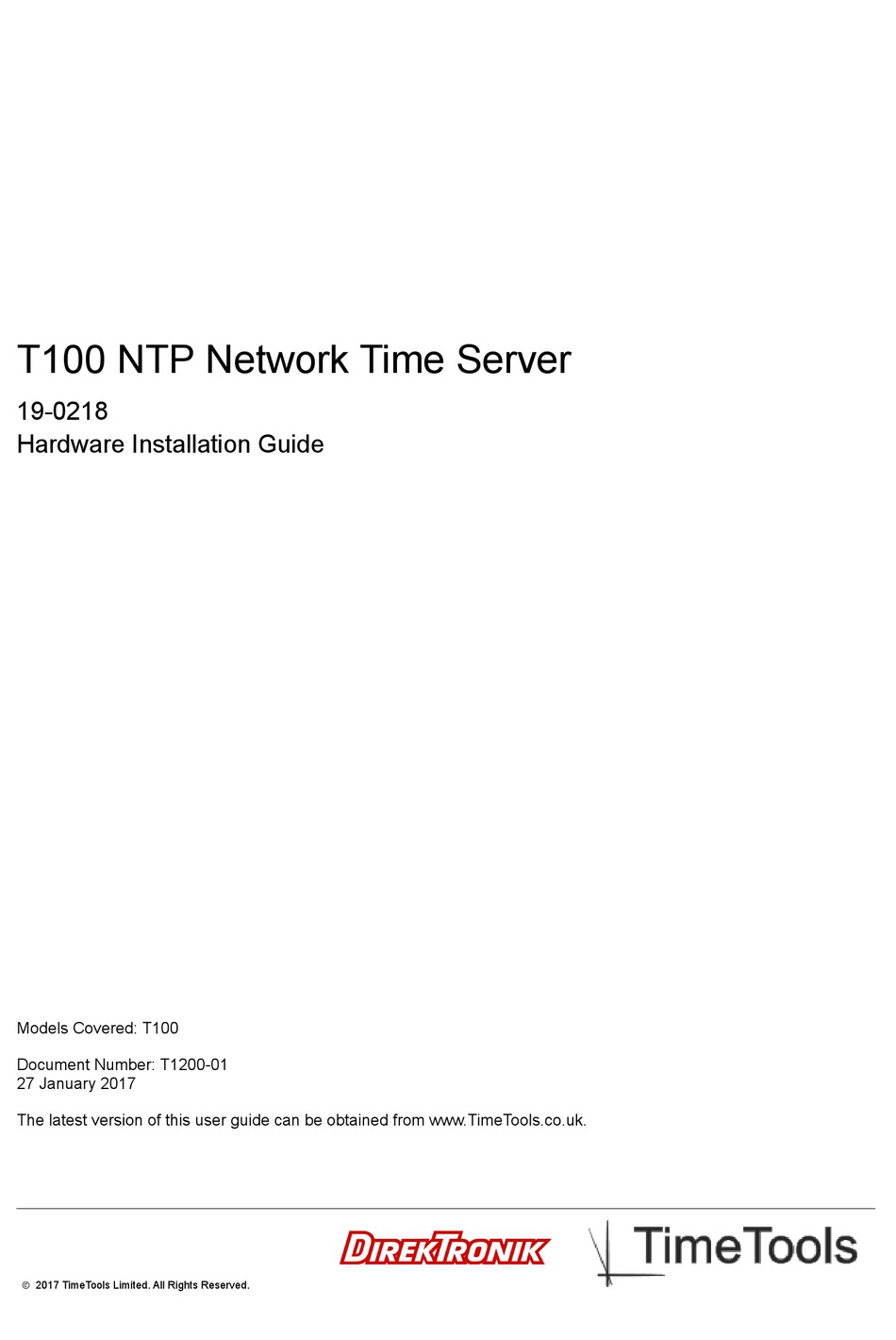

T100 NTP Network Time Server
19-0218
Hardware Installation Guide
Models Covered: T100
Document Number: T1200-01
27 January 2017
The latest version of this user guide can be obtained from www.TimeTools.co.uk.
2017 TimeTools Limited. All Rights Reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TimeTools T100

Summary of Contents for TimeTools T100

  • Page 1 T100 NTP Network Time Server 19-0218 Hardware Installation Guide Models Covered: T100 Document Number: T1200-01 27 January 2017 The latest version of this user guide can be obtained from www.TimeTools.co.uk.  2017 TimeTools Limited. All Rights Reserved.

  • Page 2: Important Safety Information

    For PERMANENTLY CONNECTED EQUIPMENT, a readily accessible disconnect device shall be incorporated external to the equipment. For PLUGGABLE EQUIPMENT, the socket-outlet shall be installed near the equipment and shall be easily accessible. Use only the supplied power adapter with the T100 NTP time server.  2017 TimeTools Limited. All Rights Reserved.
  • Page 3 Full product documentation can be found on the supplied CD or at www.timetools.co.uk. While reasonable efforts have been taken in the preparation of this document to ensure its accuracy, TimeTools Limited assumes no liability resulting from any errors or omissions in this manual, or from the use of the information contained herein.

  • Page 4: Table Of Contents

    T100 Hardware Installation Guide. Page 4 Table of Contents 1 Introduction..............................5 2 Key Features............................... 5 3 Scope of Supply............................6 3.1 Optional Extras................................. 6 4 Front Panel..............................7 4.1.1Alarm Indicator..............................7 4.2 USB Port................................... 7 4.3 Power Socket ................................7 5 Rear Panel..............................

  • Page 5: Introduction

    Network Time Protocol (NTP) can be used to synchronize the time on network clients, across an IP network, to the correct time of an NTP time server. TimeTools NTP Servers provide a stratum 1 NTP Time Server for ensuring the time is correct across an entire network.

  • Page 6: Scope Of Supply

    T100 Hardware Installation Guide. Page 6 3 Scope of Supply TimeTools T100 shipment typically includes the following components: T100 GPS NTP Server Appliance. T-3040 Pole Mounting GPS Antenna . MT4-GPS Antenna Mount. TCX-010 10m (30 ft) RG58 Cable. GE12I07-P1J 7.5V DC Universal Power Supply.

  • Page 7: Front Panel

    The T100 has the following front panel indicators/connectors: Alarm, USB, Power. 4.1.1 Alarm Indicator A red / green bi-colour LED on the T100 front panel indicates status and fault conditions. USB Port A USB port is provided for convenient and easy installation of firmware updates. Standard USB flash memory devices can be used for firmware updates.

  • Page 8: Rear Panel

    T100 Hardware Installation Guide. Page 8 5 Rear Panel The rear of the T100 has the following connectors: Eth0, Antenna, Console. Ethernet Port - Eth0 The T100 has a single RJ45 10/100 MBit auto-sensing, auto-MDIX Ethernet port labelled Eth0. Link: 10/100 Mbit, auto-sensing, auto-MDIX Connector:...

  • Page 9: Installation

    Connect one end of a CAT-5 patch cable to the RJ-45 network interface on the rear of the T100. Connect the other end to a port on your network switch.

  • Page 10: Connecting Rs232 Serial Console Cable

    T100 Hardware Installation Guide. Page 10 Connecting RS232 Serial Console Cable The T100 Console port is a RS232 serial port on a standard 9-way D-type connector. The console serial port can be used configure the device from a host PC.

  • Page 11: Configuration

    Domain name servers or confirm availability of a network DHCP server for dynamic networking configuration. The T100 can be configured in any one of three ways: Over a network using a web browser on a PC connected to the same network segment.

  • Page 12: Certification And Compliance

    REACH Regulation (EC) No 1907/2006 TimeTools hereby certifies that to the best of its knowledge, and based on our suppliers’ information, parts and products produced by TimeTools do not contain any of the substances referenced in the current list of Substances of High Concern (SVHCs are defined in Article 57 of Regulation (EC) No 1907/2006.) in concentrations greater than 0.1% weight...
  • Page 13 T100 Hardware Installation Guide. Page 13 EC Declaration Of Conformity TimeTools Limited Unit 34 Wombourne Enterprise Park, Bridgnorth Road, Wombourne, South Staffordshire. WV5 0AL. UK. Declare that: TimeTools T100 NTP Server In accordance with the following directives: 1999/5/EC R&TTE Directive.

  • Page 14: Warranty

    TimeTools Solutions Service Centre. This Warranty does not apply if repairs are required due to acts of nature beyond TimeTools’ control such as, but not limited to, lightning strikes, power surges, misuse, damage, neglect, or if repairs/modifications have been made or attempted by anyone other than personnel authorized by TimeTools.
  • Page 15 T100 Hardware Installation Guide. Page 15 TimeTools Limited. Tel: +44 (0) 1902 897400 Unit 34, Wombourne Enterprise Park, Fax: +44 (0) 870 123 1844 Bridgnorth Road, Wombourne, Email: info@TimeTools.co.uk South Staffordshire. Web: www.TimeTools.co.uk WV5 0AL. UK  2017 TimeTools Limited. All Rights Reserved.
