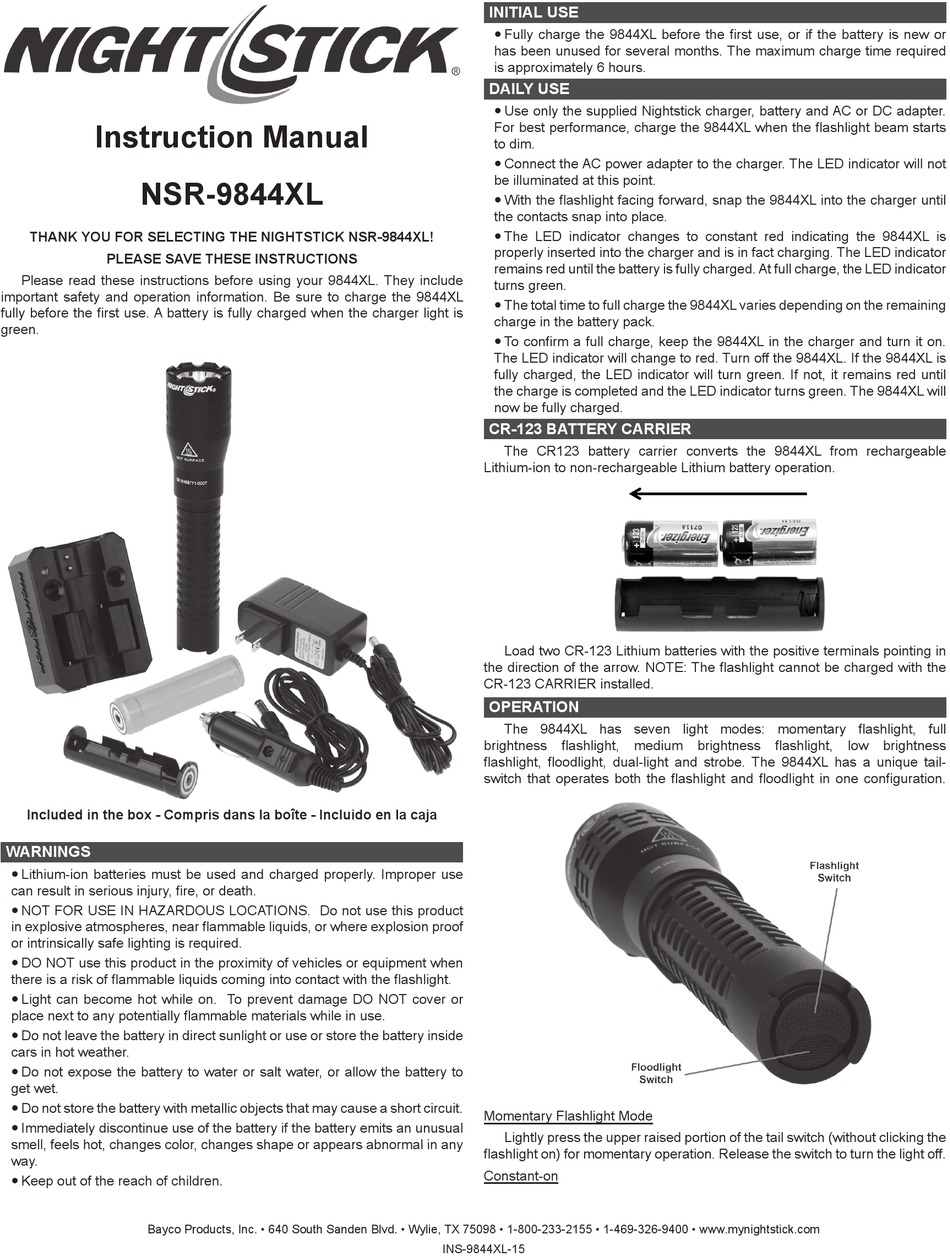

Night Stick NSR-9844XL Instruction Manual

Instruction Manual
NSR-9844XL
THANK YOU FOR SELECTING THE NIGHTSTICK NSR-9844XL!

PLEASE SAVE THESE INSTRUCTIONS

Please read these instructions before using your 9844XL. They include
important safety and operation information. Be sure to charge the 9844XL
fully before the first use. A battery is fully charged when the charger light is
green.
Included in the box - Compris dans la boîte - Incluido en la caja

WARNINGS

y Lithium-ion batteries must be used and charged properly. Improper use
can result in serious injury, fire, or death.
y NOT FOR USE IN HAZARDOUS LOCATIONS. Do not use this product
in explosive atmospheres, near flammable liquids, or where explosion proof
or intrinsically safe lighting is required.
y DO NOT use this product in the proximity of vehicles or equipment when
there is a risk of flammable liquids coming into contact with the flashlight.
y Light can become hot while on. To prevent damage DO NOT cover or
place next to any potentially flammable materials while in use.
y Do not leave the battery in direct sunlight or use or store the battery inside
cars in hot weather.
y Do not expose the battery to water or salt water, or allow the battery to
get wet.
y Do not store the battery with metallic objects that may cause a short circuit.
y Immediately discontinue use of the battery if the battery emits an unusual
smell, feels hot, changes color, changes shape or appears abnormal in any
way.
y Keep out of the reach of children.
Bayco Products, Inc. • 640 South Sanden Blvd. • Wylie, TX 75098 • 1-800-233-2155 • 1-469-326-9400 • www.mynightstick.com

INITIAL USE

y Fully charge the 9844XL before the first use, or if the battery is new or
has been unused for several months. The maximum charge time required
is approximately 6 hours.

DAILY USE

y Use only the supplied Nightstick charger, battery and AC or DC adapter.
For best performance, charge the 9844XL when the flashlight beam starts
to dim.
y Connect the AC power adapter to the charger. The LED indicator will not
be illuminated at this point.
y With the flashlight facing forward, snap the 9844XL into the charger until
the contacts snap into place.
y The LED indicator changes to constant red indicating the 9844XL is
properly inserted into the charger and is in fact charging. The LED indicator
remains red until the battery is fully charged. At full charge, the LED indicator
turns green.
y The total time to full charge the 9844XL varies depending on the remaining
charge in the battery pack.
y To confirm a full charge, keep the 9844XL in the charger and turn it on.
The LED indicator will change to red. Turn off the 9844XL. If the 9844XL is
fully charged, the LED indicator will turn green. If not, it remains red until
the charge is completed and the LED indicator turns green. The 9844XL will
now be fully charged.

CR-123 BATTERY CARRIER

The CR123 battery carrier converts the 9844XL from rechargeable
Lithium-ion to non-rechargeable Lithium battery operation.
Load two CR-123 Lithium batteries with the positive terminals pointing in
the direction of the arrow. NOTE: The flashlight cannot be charged with the
CR-123 CARRIER installed.

OPERATION

The 9844XL has seven light modes: momentary flashlight, full
brightness flashlight,
flashlight, floodlight, dual-light and strobe. The 9844XL has a unique tail-
switch that operates both the flashlight and floodlight in one configuration.

Momentary Flashlight Mode

Lightly press the upper raised portion of the tail switch (without clicking the
flashlight on) for momentary operation. Release the switch to turn the light off.

Constant-on

INS-9844XL-15
medium brightness flashlight, low brightness
