Read all instructions prior to installation.
CAUTION
!
Failure to read these instructions prior to installation may result in personal
injury, property damage, or product failure. Manufacturer assumes no
responsibility for product failure due to improper installation.
Lea todas las instrucciones antes de hacer la instalación.
ADVERTENCIA
!
El no leer estas instrucciones de instalación puede resultar en lesiones
personales, daños a la propiedad, o falla en el funcionamiento del producto.
El fabricante no asume ninguna responsabilidad por la falla del producto
debido a una instalación incorrecta.
Veuillez lire toutes les instructions avant l'installation.
AVERTISSEMENT
!
L'omission de lire les présentes instructions avant l'installation peut
entraîner des blessures, des dommages matériels ou le bris du produit. Le
fabricant se dégage de toute responsabilité à l'égard d'un bris du produit
causé par une mauvaise installation.
You may need:
Usted puede necesitar:
Articles dont vous pouvez avoir besoin :
09/04/2019

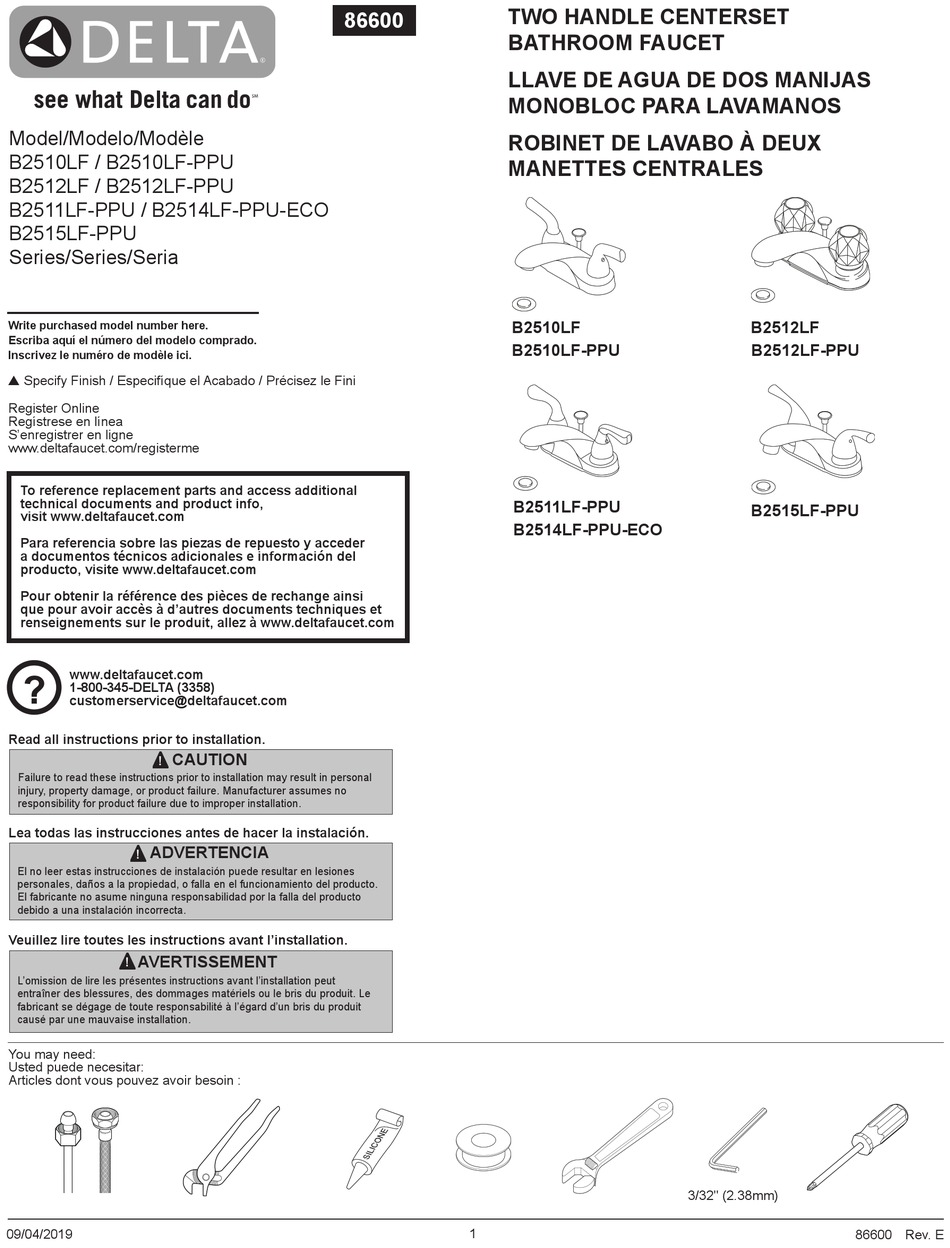

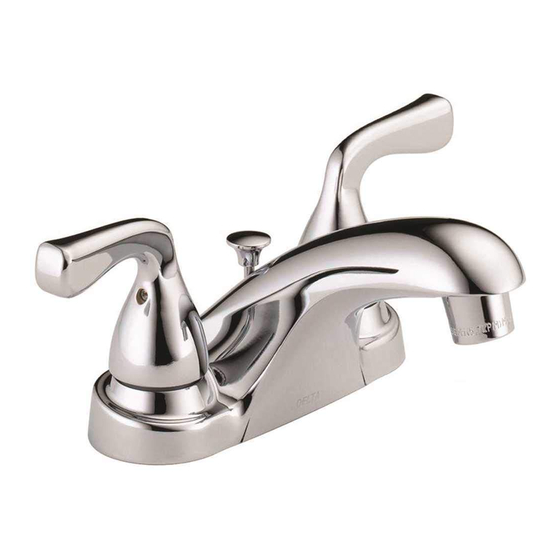

TWO HANDLE CENTERSET
86600
BATHROOM FAUCET
LLAVE DE AGUA DE DOS MANIJAS
MONOBLOC PARA LAVAMANOS
ROBINET DE LAVABO À DEUX
MANETTES CENTRALES
B2510LF
B2510LF-PPU
B2511LF-PPU
B2514LF-PPU-ECO
1
B2512LF
B2512LF-PPU
B2515LF-PPU
3/32" (2.38mm)
86600 Rev. E
Advertisement
Related Manuals for Delta Foundations B2511LF-PPU
Summary of Contents for Delta Foundations B2511LF-PPU
- Page 1 Pour obtenir la référence des pièces de rechange ainsi que pour avoir accès à d’autres documents techniques et renseignements sur le produit, allez à www.deltafaucet.com www.deltafaucet.com 1-800-345-DELTA (3358) customerservice@deltafaucet.com Read all instructions prior to installation. CAUTION Failure to read these instructions prior to installation may result in personal injury, property damage, or product failure.
-
Page 2: Cleaning And Care
Cleaning and Care Care should be given to the cleaning of this product. Although its finish is extremely durable, it can be damaged by harsh abrasives or polish. To clean, simply wipe gently with a damp cloth and blot dry with a soft towel. Limpieza y Cuidado de su Llave Tenga cuidado al limpiar este producto. - Page 3 SHUT OFF WATER SUPPLIES. Secure faucet to sink using locknuts provided (1). Continue to either step 3 metal pop-up installation or step 4 plastic Remove old faucet. Place gasket (1) on bottom of new faucet. Place pop-up installation. If your model does not have a pop-up skip to step 5. faucet through mounting holes in sink.
- Page 4 Metal Pop-Up installation Apply silicone to underside of flange (1). Insert body (2) into sink. Remove stopper (1) and flange (2). Screw nut (3) all the way down. B. Screw flange (1) into body (2). Pivot hole (3) must face faucet. Pull Push washer (4) and gasket (5) down.
- Page 5 Install Pop-Up Assembly Apply silicone to underside of flange (1). Insert body (2) into sink. Remove stopper (1) and flange (2). Screw nut (3) all the way down. Push Screw flange onto body. Pivot hole (3) must face back of sink. black gasket (4) down.
- Page 6 CONNECT TO WATER SUPPLIES. FLUSH SYSTEM/CHECK FOR LEAKS. (HOOK-UPS NOT PROVIDED). Remove aerator (1) and turn faucet handles (2) all the way on. Turn on Determine which type of connection you will be making. hot and cold water supplies (3) and flush water lines for one minute. (1) Ball nose risers (3/8"...
- Page 7 Maintenance If faucet exhibits very low flow: A. Remove and clean Aerator (3) (page 3), or SHUT OFFWATER SUPPLIES B. Clean Seats and Springs (2) of any debris. If faucet leaks from spout: *Install stems (1) correctly for proper handle rotation: Replace Stem Unit Assembly (1) and Seats and Springs (2).
- Page 8 Indianapolis, IN 46280 St. Thomas, Ontario, Canada N5P 4L1 Delta seller by a purchaser who owns but does not live in the residential dwelling in which the faucet is initially installed, such as in a rented or Attention: Customer Solutions Attention: Customer Service leased single unit or multi-unit detached home (duplex or townhome), or a condominium, apartment building or community living center.
