TVILIGHT CitySense Plus Installation Manual

Hide thumbs Also See for CitySense Plus:

Advertisement

Quick Links

Download this manual
English
CitySense Plus
Installation Manual
PR 60-0005-00 | Rev. F | 05/10/2020

Advertisement

loading
Need help?

Need help?

Do you have a question about the CitySense Plus and is the answer not in the manual?

Questions and answers

Related Manuals for TVILIGHT CitySense Plus

Summary of Contents for TVILIGHT CitySense Plus

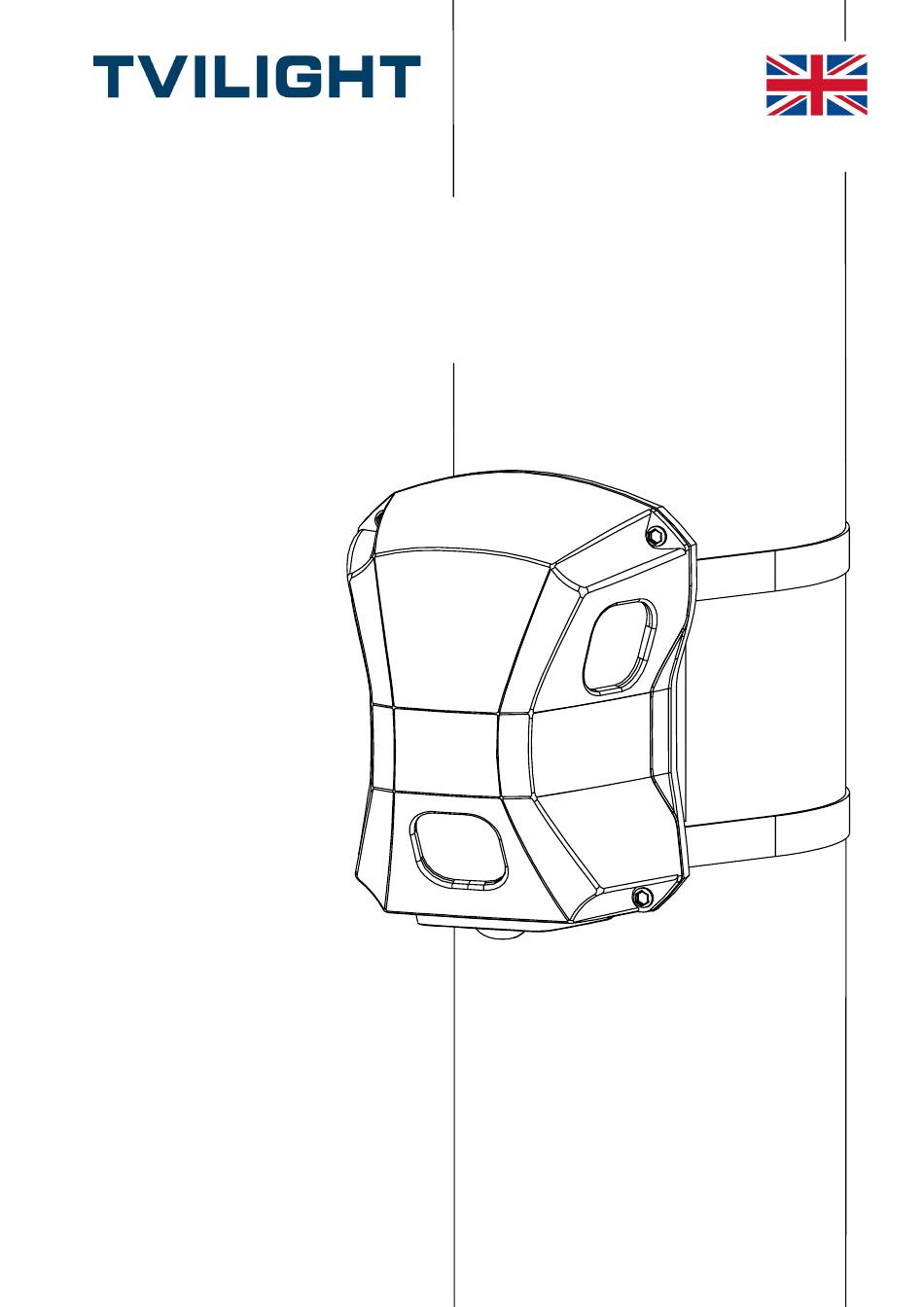

  • Page 1 English CitySense Plus Installation Manual PR 60-0005-00 | Rev. F | 05/10/2020...
  • Page 2 NOTE: Some dimmable drivers/ballasts must be programmed/set to dimmable mode. If this has not been done, CitySense Plus will not be able to dim the connected armature. TVILIGHT PROJECTS BV / Beechavenue 162-180, 1119 PS, Schiphol-Rijk, the Netherlands info@tvilight.com / www.tvilight.com...
  • Page 3 In box: M16 Cable Gland CitySense Plus Sticker TVILIGHT www.tvilight.com TVI-CSP1-01-0014 20 mm Rubber Grommet 5m Cable You’ll need: Drill Generic Strap x 2 Scan&Go App Available in the Apple App Store Max = 11mm and in the Min = 8mm...
  • Page 4 1. Run wire through Cable Gland/Grommet 2. Drill hole into the pole: - M16 threaded (Cable Gland) OR - 20 mm (Grommet) Note: for added protection against rust, the use of an anti-corrosion spray such as WD40 Corrosion inhibitor or equal is recommended. PR 60-0005-00 | Rev.
  • Page 5 3. Run wire through hole in the pole 4. Insert Cable Gland/Grommet into hole in the pole PR 60-0005-00 | Rev. E | Page 5 of 11...
  • Page 6 5. Screw Cable Gland OR press Grommet into the pole 6. Strap product to the pole Tensioning Tool * Ensure Tensioning Tool is set to maximum tension (#4) PR 60-0005-00 | Rev. E | Page 6 of 11...

  • Page 7: Level The Product

    7. Level the product Position 2: Standard PR 60-0005-00 | Rev. E | Page 7 of 11...
  • Page 8 8. Apply product ID sticker to pole TVILIGHT www.tvilight.com TVI-CSP1-01-0014 SAME TVILIGHT www.tvilight.com TVI-CSP1-01-0014 TVILIGHT www.tvilight.com TVI-CSP1-01-0014 PR 60-0005-00 | Rev. E | Page 8 of 11...
  • Page 9 9. Add device to CityManager 1. Download Tvilight Scan&Go from Apple iOS App Store or from Google Play Store. 2. Login with your Username and Password. 3. Use the ‘Add device’ function in Scan&Go app to add the device to CityManager.

  • Page 10: Wiring Diagram

    Wiring Diagram Connector (e.g. Wago) WARNING: DC + If not correctly connected product might not function or it might be permanently damaged. DC - L out N out Junction Box GREEN BROWN BLUE WHITE BLACK GREY PR 60-0005-00 | Rev. E | Page 10 of 11...
  • Page 11 Wiring Diagram ARMATURE 0-10V+ 0-10V- DALI+ DALI- CITYSENSE + WARNING: 0-10V- 0-10V+ DALI- DALI+ If not correctly connected product might not function or it might be permanently damaged. JUNCTION BOX 0-10V+ 0-10V- DALI+ DALI- GREEN BROWN BLUE WHITE BLACK GREY Note: For added protection, an external circuit breaker at the power input of the product is mandatory.
