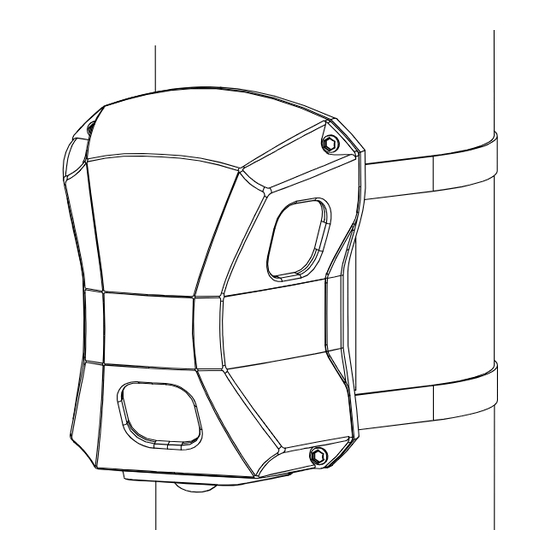

TVILIGHT CitySense Plus Installation Manual

Cable gland
Hide thumbs Also See for CitySense Plus:

Advertisement

Quick Links

Download this manual
English
CitySense Plus
Installation Manual
Cable Gland

Advertisement

loading
Need help?

Need help?

Do you have a question about the CitySense Plus and is the answer not in the manual?

Questions and answers

Related Manuals for TVILIGHT CitySense Plus

Summary of Contents for TVILIGHT CitySense Plus

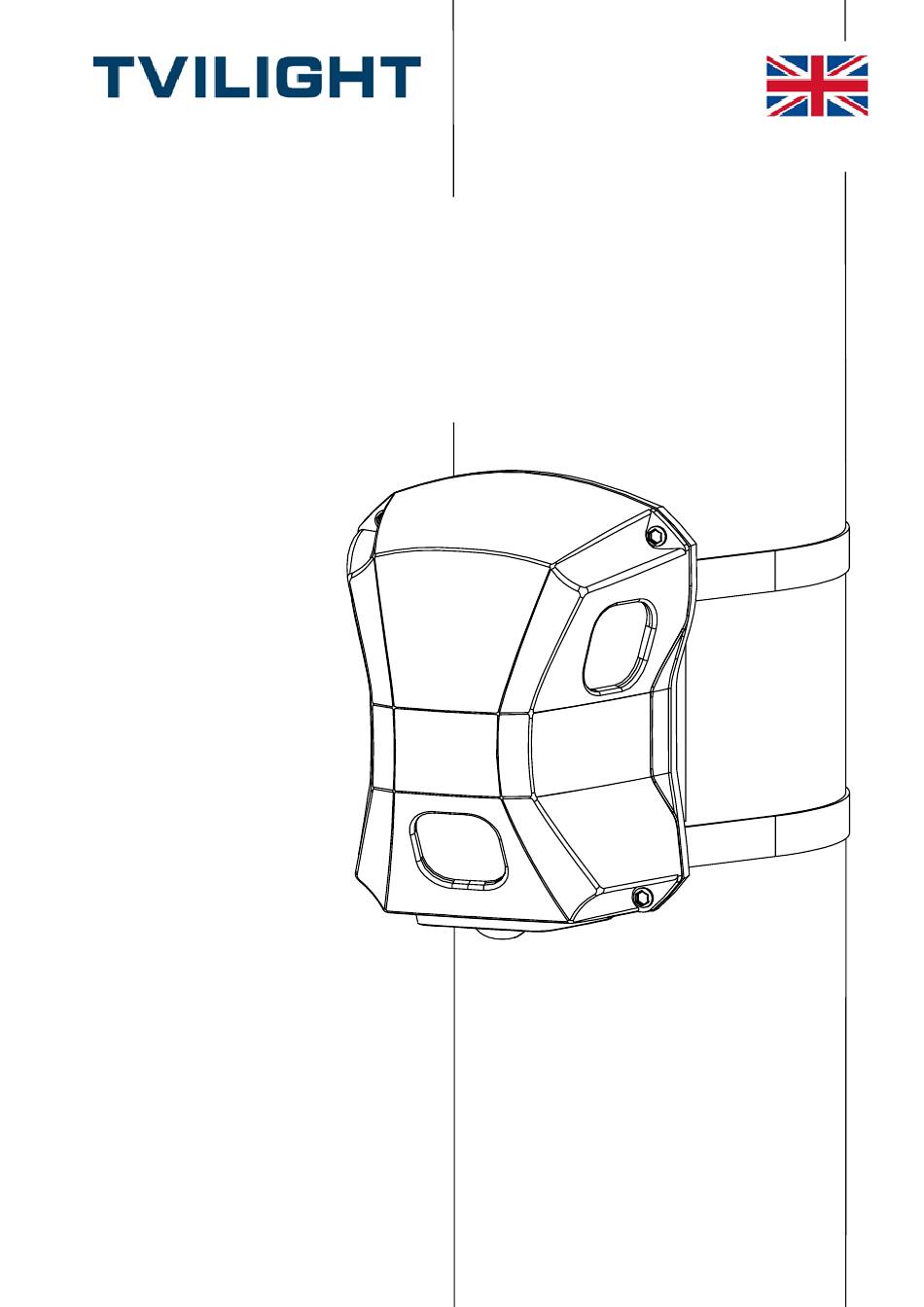

  • Page 1 English CitySense Plus Installation Manual Cable Gland...
  • Page 2 Version Author Date Changes Approved by Henri Eskonen 21/12/2017 Added version control page. Minor formatting. TVILIGHT BV / Westerhaven 13, 9718 AW Groningen, the Netherlands v4 - 21/12/2017 +31 (0)50 800 3240 / info@tvilight.com / www.tvilight.com Page 2 of 10...
  • Page 3 In order to function properly, CitySense Plus must be connected to a dimmable driver/ballast. NOTE: Some dimmable drivers/ballasts must be programmed/set to dimmable mode. If this has not been done, CitySense Plus will not be able to dim the connected armature. Page 3 of 10...
  • Page 4 In box: M16 Cable Gland Sticker TVILIGHT www.tvilight.com TVI-CSP1-01-0014 5m Cable You’ll need: Drill M16 Thread Generic Strap x 2 Max = 11mm Min = 8mm Wago x 4 Page 4 of 10...
  • Page 5 1. Push cable gland through wire 2. Drill M16 threaded hole into pole Note: for added protection against rust, the use of an anti-corrosion spray such as WD40 Corrosion inhibitor or equal is recommended. Page 5 of 10...
  • Page 6 3. Run wire through hole Twist the end leads of the wires 4. Screw cable gland in hole Rotate the cable gland to tighten Page 6 of 10...

  • Page 7: Level The Product

    5. Strap product to pole Tensioning Tool * Ensure Tensioning Tool is set to maximum tension (#4) 6. Level the product Position 2: Standard Page 7 of 10...
  • Page 8 7. Apply product ID sticker to pole TVILIGHT www.tvilight.com TVI-CSP1-01-0014 SAME TVILIGHT www.tvilight.com TVI-CSP1-01-0014 TVILIGHT www.tvilight.com TVI-CSP1-01-0014 Page 8 of 10...

  • Page 9: Wiring Diagram

    Wiring Diagram Connector (e.g. Wago) WARNING: DC + If not correctly connected product might not function or it might be permanently damaged. DC - L out N out Junction Box GREEN BROWN BLUE WHITE BLACK GREY Page 9 of 10...
  • Page 10 Wiring Diagram ARMATURE 1-10V+ 1-10V- DALI+ DALI- CITYSENSE + WARNING: 1-10V- 1-10V+ DALI- DALI+ If not correctly connected product might not function or it might be permanently damaged. JUNCTION BOX 1-10V+ 1-10V- DALI+ DALI- GREEN BROWN BLUE WHITE BLACK GREY Note: For added protection, it is recommenteded to add an external circuit breaker at the power input of the product.
  • Page 11 CitySense Plus - Indicative Sensor Detection Zones Mounting Height: 4 meters Tilt: 0 degrees 7.5 m 0.5 m 13.5 m 4.5 m 3.2 m...
  • Page 12 CitySense Plus - Indicative Sensor Detection Zones Mounting Height: 4 meters Tilt: 7.5 degrees 10.65 m 9.4 m 4.16 m 3.7 m 2.7 m 2.2 m 1.1 m 14.8 m 14 m 2.42m 5.3 m 4.9 m 2.25 m...
  • Page 13 CitySense Plus - Indicative Sensor Detection Zones Mounting Height: 4 meters Tilt: -7.5 degrees 5.6 m 5.2 m 2.42m 2.1m 12.8 m 12.8 m 5.2 m 4.1 m 4.16 m 2.25 m...
  • Page 14 CitySense Plus - Indicative Sensor Detection Zones Mounting Height: 4.5 meters Tilt: 0 degrees 8.5 m 7.7 m 2.25 m 0.6 m 15 m 3.6 m...
  • Page 15 CitySense Plus - Indicative Sensor Detection Zones Mounting Height: 4.5 meters Tilt: 7.5 degrees 12.1 m 10.5 m 4.7 m 4.1 m 2.5 m 1.2 m 16.7 m 15.8 m 2.7 m 5.5 m 2.25 m...
  • Page 16 CitySense Plus - Indicative Sensor Detection Zones Mounting Height: 4.5 meters Tilt: -7.5 degrees 6.3 m 2.7 m 2.4 m 1.1 m 14.3 m 10.5 m 5.8 m 4.7 m 4.6 m 2.25 m...
  • Page 17 CitySense Plus - Indicative Sensor Detection Zones Mounting Height: 5 meters Tilt: 0 degrees 9.5 m 8.5 m 2.5 m 0.7 m 16.5 m 5.5 m 2.5 m...
  • Page 18 CitySense Plus - Indicative Sensor Detection Zones Mounting Height: 5 meters Tilt: 7.5 degrees 13.5 m 11.7 m 5.2 m 4.6 m 3.4 m 2.8 m 1.4 m 18.5 m 17.5 m 6.6 m 6.1 m 2.75 m...
  • Page 19 CitySense Plus - Indicative Sensor Detection Zones Mounting Height: 5 meters Tilt: -7.5 degrees 6.5 m 2.6 m 1.3 m 15.9 m 11.8 m 6.4 m 5.1 m 5.2 m 2.45 m...
  • Page 20 CitySense Plus - Indicative Sensor Detection Zones Mounting Height: 5.5 meters Tilt: 0 degrees 10.5 m 9.3 m 2.75 m 0.7 m 16.5 m 5.5 m 4.4 m 2.75 m...
  • Page 21 CitySense Plus - Indicative Sensor Detection Zones Mounting Height: 5.5 meters Tilt: 7.5 degrees 14.9 m 12.8 m 5.7 m 3.7 m 1.5 m 20 m 19.3 m 3.4 m 7.3 m 6.7 m 2.75 m...
  • Page 22 CitySense Plus - Indicative Sensor Detection Zones Mounting Height: 5.5 meters Tilt: -7.5 degrees 7.7 m 7.1 m 3.4 m 2.9 m 1.4 m 17.5 m 13 m 7.1 m 5.6 m 5.7 m 2.72 m...
