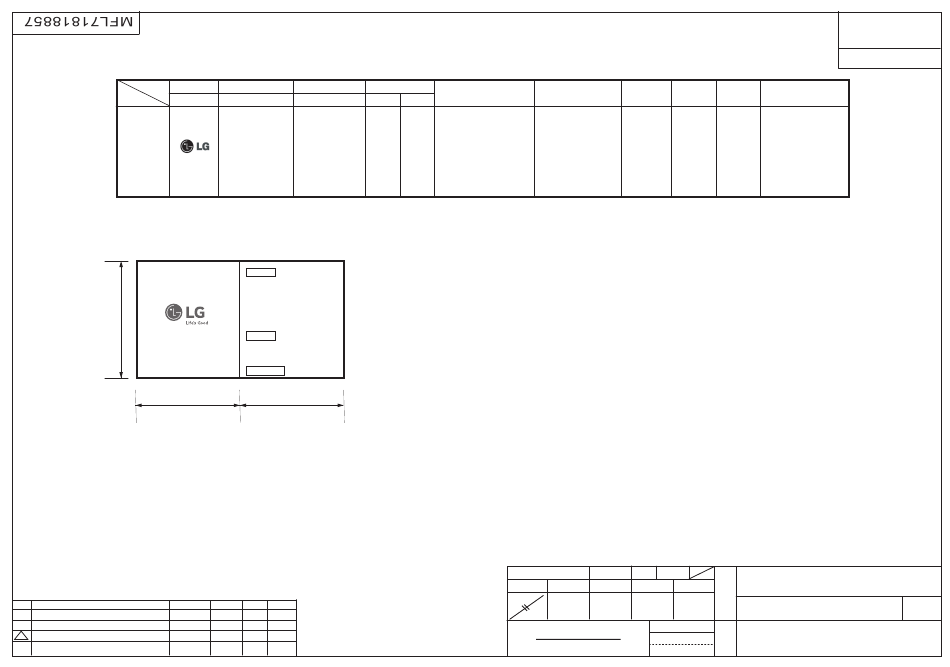

1. Material,printing and exterier size are refer to work tables.

2. Printing, tsxt size and line are based on LG desing film.

3. Exterier size on the drawing is cutting line.

4. Before product controlled by criteria sample.

This part should comply with the criteria of Level A-I, A-II restricted

hazardous substances which refers to LGE standard LG(10)-A-9023 and

the hazardous substance management manual for the suppliers.

MODELING

DESIGNED

李珍

LGEPN

LG Electronics Inc.

LANGUAGE

SUFFIX

PAGE

English

V950 550

ABWQPUK

SCALE

Unit

MANUAL,OWNER'S

REVIEWED

APPROVALED

CHECKED

DRUM-DOMESTIC

陈芳

朱宇杰

康正勋

MFL71818857

RELATED DRAWING

DWG.

No.

RELEASING THIS DRAWING

WITHOUT PERMISSIONG Electronics

SHOULD BEACCUSED ACCORDING

TO THE LAWS ADN COMPANY

RULES.

图纸为LGEPN资产，非法流通时，

根据相关法律和公司有关规定追究法律责任

REMARK

1/1

Table of Contents

Need help?

Do you have a question about the F6V1110WTSA and is the answer not in the manual?

Questions and answers

Summary of Contents for LG F6V1110WTSA

Page 1 1. Material,printing and exterier size are refer to work tables. P/No. 丙 2. Printing, tsxt size and line are based on LG desing film. 3. Exterier size on the drawing is cutting line. 4. Before product controlled by criteria sample.
Page 2 This will simplify installation and ensure that the product is installed correctly and safely. Leave these instructions near the product after installation for future reference. ENGLISH F6V1110WTSA F6V1110BTSA www.lg.com MFL71818857 Rev.00_051221 Copyright © 2021 LG Electronics Inc. All Rights Reserved.
Page 3: Table Of Contents
TABLE OF CONTENTS This manual may contain images or content that may be different from the model you purchased. This manual is subject to revision by the manufacturer. SAFETY INSTRUCTIONS CARING FOR THE ENVIRONMENT ............. 5 Environmental and Economical Tips..............5 Disposal of the Packaging Material ..............6 Disposal of Your Old Appliance ................6 READ ALL INSTRUCTIONS BEFORE USE ............
Page 4 Consumption Data .....................38 Extra Options and Functions ..............41 Customizing a Washing Programme...............41 Using Special Options..................42 Using Basic Options ...................42 Using the ezDispense ..................43 Settings........................46 SMART FUNCTIONS LG ThinQ Application ................48 LG ThinQ Application Features.................48 Before Using LG ThinQ Application ..............49...
Page 5 Installing the LG ThinQ Application ..............50 Activating Network Connection................50 Using the Appliance Remotely .................50 Deactivating Network Connection ..............50 Standby Power Consumption ................50 Open Source Software Notice Information ............51 Smart Diagnosis ..................52 Using LG ThinQ to Diagnose Issues..............52 Using Audible Diagnosis to Diagnose Issues ..........52 MAINTENANCE Cleaning After Every Wash..............
Page 6: Safety Instructions
SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS CARING FOR THE ENVIRONMENT Environmental and Economical Tips Energy and water consumption • Water consumption and energy usage can be affected by the weight of the load. To make the best use of your appliance, load the maximum amount of dry clothes for the particular programme.
Page 7: Disposal Of The Packaging Material
• You can take your appliance either to the shop where you purchased the product, or contact your local government waste office for details of your nearest authorised WEEE collection point. For the most up to date information for your country, please see www.lg.com/global/recycling.
Page 8: Read All Instructions Before Use
SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USE The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance. The guidelines are separated into ‘WARNING’ and ‘CAUTION’ as described below. Safety Messages This symbol is displayed to indicate matters and operations that can cause risk.
Page 9: Maximum Capacity
SAFETY INSTRUCTIONS • If the power cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. • Ventilation openings must not be obstructed by a carpet. • This appliance is intended to be used in household only. •...
Page 10: Operation
SAFETY INSTRUCTIONS outlet socket that is installed and earthed / grounded in accordance with all local codes and ordinances. • Improper connection of the equipment-grounding conductor can result in risk of electric shock. Check with a qualified electrician or service personnel if you are in doubt as to whether the appliance is properly grounded.
Page 11: Maintenance
• Do not touch the door during a high temperature programme. • In case of a water leak from the appliance or flood, disconnect the power plug and contact the LG Electronics customer information centre. • Turn off water taps to relieve pressure on hoses and valves and to minimize leakage if a break or rupture should occur.
Page 12: Disposal
• Only qualified service personnel from LG Electronics service centre should disassemble, repair, or modify the appliance. Contact an LG Electronics customer information centre if you move and install the appliance in a different location.
Page 13: Installation Parts And Specifications
INSTALLATION INSTALLATION Parts and Specifications NOTE • Appearance and specifications may change without notice to improve the quality of the appliance. Front View Index Part Name Index Part Name Detergent Dispenser Cover Cap Drawer Door Drain Plug Levelling Feet Drain Pump Filger Control Panel...
Page 14: Rear View
INSTALLATION Rear View Index Part Name Index Part Name Power Plug Drain Hose Transit Bolts...
Page 15: Specifications
INSTALLATION Specifications Description Value Model Name F6V1110WTSA F6V1110BTSA Power Supply 220‒240 V~, 50 Hz Product Weight 70 kg Dimension(mm) D’’ D’ Index Dimension (mm) D" 1100...
Page 16: Accessories
INSTALLATION Accessories *1 The included accessories vary depending on the model you purchased. Cold Supply Hose Anti–slip Sheets*1 Spanner Elbow Bracket for Securing Drain Hose Caps for Covering Transit Bolt Holes Tie Strap*1...
Page 17: Installation Place Requirements
INSTALLATION Installation Place Requirements Before installing the appliance, check the following information to make sure that the appliance should be installed in a correct place. Installation Location Index Clearance (mm) • This appliance must be installed on firm flooring to minimize vibration during the spin cycle.
Page 18: Ventilation
NOTE persons may cause injury or serious • You can purchase rubber cups (part malfunctioning. Contact your local No. 4620ER4002B) from the LG service authorised LG repairer. centre. • The power plug must be plugged into an appropriate outlet socket that is...
Page 19: Unpacking The Appliance
INSTALLATION Unpacking the Appliance Lifting the Appliance Off the fully loosen all transit bolts by turning them counterclockwise. Foam Base * This feature may vary depending on the model purchased. After removing the carton and shipping material, lift the appliance off the foam base.
Page 20: Levelling The Appliance
• Do not install the washing machine on to be considered to stop or reduce a plinth, stand or elevated surface excessive noise and vibration. unless it is manufactured by LG Electronics for use with this model. Adjusting and Levelling the Feet...
Page 21: Using Anti-Slip Sheets
NOTE This feature may vary depending on the • Additional anti-slip sheets are available model purchased. at LG Electronics service centre. If you install the appliance on a slippery surface, it may move because of excessive vibration. Incorrect levelling may cause malfunction through noise and vibration.
Page 22: Connecting The Water Supply Hose
INSTALLATION Connecting the Water Supply Hose Note for Connection Connecting the Hose to the Water Tap • Water pressure must be between 50 kPa and 800 kPa (0.5‒8.0 kgf/cm²). If Connecting Screw-Type Hose to Tap the water pressure is more than 800 with Thread kPa, a decompression device should Screw the supply hose connector onto...
Page 23: Connecting The Hose To The Appliance
INSTALLATION Connecting the Hose to the Appliance Screw the supply hose to the water inlet valve on the back of the appliance. • Do not connect the hose to the hot water supply for models with one water inlet. Connect to the cold water supply only.
Page 24: Installing The Drain Hose
INSTALLATION Installing the Drain Hose Installing the Drain Hose with the Elbow Bracket The drain hose should not be placed higher than 100 cm above the floor. Water in the appliance may not drain or may drain slowly. • Securing the drain hose correctly will protect the floor from damage due to water leakage.
Page 25: Operation Operation Overview
OPERATION OPERATION Operation Overview Using the Appliance CAUTION Before the first wash, select the Cotton • Remove items from the flexible door wash programme and add a half amount seal gasket to prevent clothing and of the detergent. Start the appliance door seal damage.
Page 26 OPERATION Choose the desired cycle. • Press the cycle button repeatedly or turn the cycle selector knob until the desired cycle is selected. • Now select a wash temperature and spin speed. Pay attention to the fabric care label of your clothes. Begin cycle.
Page 27: Control Panel
The actual control panel may differ from model to model. Control Panel Features Remote Start Power On/Off Button With the LG ThinQ app, you can use a • Press this button to turn the washing smartphone to control your appliance machine on.
Page 28 OPERATION ezDispense Buttons • Press the Dispenser 1 or Dispenser 2 to select ezDispense function. • LED will light up to indicate the selected detergent type and amount. • When the detergent or softener is insufficient; - In case of pressing the Power button : The LED will blink and the chime will sound.
Page 29 OPERATION Time and Status Display • The time shown is only an estimate. Programme Status Indicators This time is based on normal operating • When a washing programme is conditions. Several external factors running, LED for the active stage will (load weight, room temperature, blink, and the LEDs for the remaining incoming water temperature, etc.) can...
Page 30: Preparing The Wash Load
OPERATION Preparing the Wash Load Sort the wash load for best washing results, and then prepare the clothes according to the symbols on their care labels. Sorting the Clothes Symbol Wash / Fabric type • For best washing results, sort your •...
Page 31 OPERATION keys can damage both your appliance and clothes. • Wash delicates (stockings, underwired bras) in a wash net. • Close zippers, hooks and strings to make sure that these items do not snag on other clothes. • Pre-treat dirt and stains by brushing a small amount of detergent dissolved water onto stains to help lift dirt.
Page 32: Adding Detergents And Softeners
OPERATION Adding Detergents and Softeners Detergent Dosage - Liquid detergent is often designed for special applications, e.g. for • Detergent should be used according to coloured fabric, wool, delicate or the instruction of the detergent dark clothes. manufacturer and selected according - Powdered detergent is suitable for to type, colour, soiling of the fabric and all types of fabric.
Page 33 OPERATION Slowly slide the detergent dispenser • Do not try to fill the compartments too quickly. Add detergent and drawer out as far as it will go. softener slowly to avoid overflows. Liquid detergent compartment Liquid fabric softener or Liquid detergent compartment After filling the compartments, insert the lids and turn them clockwise until...
Page 34 OPERATION safety. Failure to do so can damage the Open the detergent dispenser washer or cause the detergent or drawer. softener to leak out of the ventilation holes. • Detergent or fabric softener left in the ezDispense compartments for an extended period may harden and fail to dispense properly.
Page 35: Adding Detergent Tablets
OPERATION • Slamming the detergent dispenser Open the door and put detergent drawer may result in the detergent tablets into the drum before loading overflowing into another the clothes. compartment or pouring into the tub earlier than programmed. Load the clothes into the drum and close the door.
Page 36: Programme Table
OPERATION Programme Table Washing Programme Cotton 40 °C (Cold to 95 °C) Max. Load: Rating Description Washes normally soiled clothes by combining various drum motions. Eco 40-60 40 °C (40 °C to 60 °C) Max. Load: Rating Description Washes normally soiled cotton clothes declared to be washable at 40 °C or 60 °C.
Page 37 OPERATION Delicates 20 °C (Cold to 40 °C) Max. Load 3 kg Description Washes machine-washable lingerie, sheer and lacy clothes. Hand/Wool 30 °C (Cold to 40 °C) Max. Load 2 kg Description Washes hand-washable and machine-washable delicate clothes such as washable wool, lingerie, dresses etc. •...
Page 38: Extra Options
OPERATION • Neutral detergent is recommended. Extra Options *1 This option is automatically inserted in the programme and can not be deselected. NOTE • Rinse+, Delay End and Add Item options can be selected for every washing programme in the table below. •...
Page 39: Selectable Maximum Spin Speed
OPERATION Selectable Maximum Spin Speed Spin Speed Programme Default Available Cotton 1600 rpm Eco 40-60 1600 rpm TurboWash 39 1200 rpm 400 to 1600 rpm Mixed Fabric 1000 rpm Easy Care 1600 rpm Silent Wash 800 rpm Up to 1000 rpm Allergy Care 1600 rpm Delicates...
Page 40 OPERATION Common Programmes Programme h:mm ℃ Litres Cotton 20 ℃ 10.5 2:38 0.330 78.0 1570 49.0 Cotton 60 ℃ 10.5 2:58 1.590 78.0 1570 49.0 Mixed Fabric 1:21 0.603 54.0 1000 67.0 Speed 14 0:14 0.051 54.0 106.0 Cotton 40 ℃ + 10.5 3:31 0.910...
Page 41 OPERATION NOTE • To find the same information in EPREL, visit https://eprel.ec.europa.eu and search using the model name. (Valid from 1st March 2021)
Page 42: Extra Options And Functions
OPERATION Extra Options and Functions You can use the extra options and functions to customize the programmes. Customizing a Washing • Press and hold the Pre Wash button for 3 seconds. Programme Follow the next steps to customize a Each programme has default settings washing programme: that are selected automatically.
Page 43: Using Special Options
OPERATION Customize the washing programme NOTE (Temp., Spin, Rinse+ and Intensive) • If you select the washing programme, as necessary. you will be unable to select a spin only. If this occurs, press the Power button To use special options, twice to cycle the machine off and back Optional 1: Press Steam or TurboWash button.
Page 44: Using The Ezdispense
OPERATION Press the Add Item button as water temperature, clothes and other factors. necessary. • To cancel the function, the Power button should be pressed. Open the door after it unlocks itself • Avoid using liquid detergent for this and add or remove necessary function.
Page 45 OPERATION NOTE NOTE • The default settings are configured to • Use the manufacturer’s dispense the detergent of Dispenser 1 recommendations on the detergent or and the fabric softener of Dispenser 2. fabric softener package when setting the ezDispense amounts for a standard 4-6 kg load.
Page 46 OPERATION to 150 ml. The amount dispensed Press the Dispenser 1 button to light may vary slightly depending on the up the Link indicator. model. • The Liquid detergent indicator is always light on. Save the default changes. • When the Link indicator is •...
Page 47: Settings
OPERATION Press the Dispenser 1 or Dispenser 2 (when changing the type of detergent or softener). button to select the compartment to be cleaned up. • Both compartments can be cleaned at the same time. Press the Start/Pause button. Finishes this function within 16 minutes.
Page 48 OPERATION Unlocking the Control Panel Turn on the power. Press and hold the Delay End and Add Item buttons at the same time for 3 seconds to deactivate this function. Beep On/Off This appliance plays a melody when it starts and stops. •...
Page 49: Smart Functions
SMART FUNCTIONS SMART FUNCTIONS LG ThinQ Application The LG ThinQ application allows you to communicate with the appliance using a smartphone. LG ThinQ Application Features Smart Diagnosis This function provides useful Communicate with the appliance from a information for diagnosing and solving...
Page 50: Before Using Lg Thinq Application
Before Using LG ThinQ service provider or refer to your wireless router manual. Application • LG ThinQ is not responsible for any Check the distance between the network connection problems or any faults, malfunctions, or errors caused appliance and the wireless router (Wi- by network connection.
Page 51: Installing The Lg Thinq Application
NOTE • Once this function is enabled, you can Activating Network Connection only start a cycle from the LG ThinQ smartphone application. If the cycle is Run the LG ThinQ application. not started, the appliance will wait to start the cycle until it is turned off...
Page 52: Open Source Software Notice Information
In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge.com.
Page 53: Smart Diagnosis
Wi-Fi equipped appliance, it can transmit troubleshooting data to a smartphone using the LG ThinQ application. • Launch the LG ThinQ application and select the Smart Diagnosis feature in the menu. Follow the instructions provided in the LG ThinQ application.
Page 54: Maintenance
MAINTENANCE MAINTENANCE WARNING • Unplug the appliance before cleaning to avoid the risk of electric shock. Failure to follow this warning may result in serious injury, fire, electric shock, or death. • Never use harsh chemicals, abrasive cleaners, or solvents to clean the appliance. They may damage the finish.
Page 55: Cleaning The Appliance Periodically & Performing An Emergency Water Evacuation
MAINTENANCE Cleaning the Appliance Periodically & Performing an Emergency Water Evacuation Tub Clean Leave the door open to dry the inside of the appliance completely. This is a special function to help clean the • When the inside of the appliance is inside of the appliance by soaking, not dried completely, it may cause a washing, rinsing and spinning.
Page 56: Cleaning The Drain Pump Filter And Performing An Emergency Water Evacuation
MAINTENANCE Remove the water inlet filter with Remove the drain plug from the drain small pliers and then clean the filter tube first , and then drain the using a medium bristle tooth brush. water. Then slowly unscrew the drain pump filter to drain the remaining water and then proceed to remove...
Page 57: Cleaning The Ezdispense Drawer
MAINTENANCE Cleaning the ezDispense Open the lids. Drawer Clean the ezDispense compartments every time you refill the detergent/ softener or change to a new type of detergent/softener. Remove and clean the detergent dispenser drawer once or twice a month. Leaving detergent in the detergent dispenser drawer for an extended period or using the washing Clean the inserts with warm water.
Page 58 MAINTENANCE • Do not use soap when cleaning the drawer and inserts. Securely close the covers on the ezDispense compartments. Wipe off any moisture with a dry towel or cloth after cleaning. Reinsert the detergent dispenser drawer.
Page 59: Troubleshooting
Your appliance is equipped with an automatic error-monitoring system to detect and diagnose problems at an early stage. If the appliance does not function properly or does not function at all, check the following tables before calling to LG Electronics service centre.
Page 60 • Check and clean the drain filter. Door sensor malfunctions. dE dE1 dEz dE4 • Please call LG service centre. You can find your local LG DOOR ERROR service centre phone number in the warranty card. This is a control error.
Page 61: Ezdispense Error Messages
TROUBLESHOOTING Symptoms Possible Cause & Solution Is supply/drain hose or drain pump frozen? • Supply warm water into the drum in order to unfreeze the FROZEN FAILURE drain hose and the drain pump. Cover the supply hose with wet and warm towel. Water leaks.
Page 62: Noises You Might Hear
TROUBLESHOOTING Symptoms Possible Cause & Solution The amount of liquid fabric softener in the liquid fabric E d4 softener or liquid detergent compartment did not ezDispense ERROR decrease. • Call for service. The amount of liquid detergent or fabric softener in the E ds liquid fabric softener or liquid detergent compartment ezDispense ERROR...
Page 63: Operation
TROUBLESHOOTING Symptoms Possible Cause & Solution Vibrating noise Package materials are not removed. • Remove package materials. The clothes may be unevenly distributed in the drum. • Pause the programme and redistribute the clothes after the door unlocks. Not all levelling feet are resting firmly and evenly on the floor.
Page 64 TROUBLESHOOTING Symptoms Possible Cause & Solution Appliance does Control panel has powered off due to inactivity. not operate. • This is normal. Press the Power button to turn the appliance on. Appliance is unplugged. • Make sure that the cord is plugged securely into a working outlet.
Page 65 TROUBLESHOOTING Symptoms Possible Cause & Solution Door does not The door cannot be opened for safety reasons once the open. appliance starts. • This is normal. You can safely open the door after turns off. Appliance is not Inlet filter clogged. filling properly.
Page 66: Performance
TROUBLESHOOTING Symptoms Possible Cause & Solution Cycle end is Unbalance is detected or suds removing programme is delayed • This is normal. The time remaining shown on the display is only an estimated duration. Actual time may vary. Performance Symptoms Possible Cause &...
Page 67: Odour
TROUBLESHOOTING Symptoms Possible Cause & Solution Wrinkling Appliance is not unloaded promptly. • Always remove items from the appliance as soon as the programme is complete. Appliance is overloaded. • The appliance can be fully loaded, but the drum should not be tightly packed with items.
Page 68: Ezdispense
TROUBLESHOOTING ezDispense Symptoms Possible Cause & Solution Refill Alarm Detergent/softener has built up on the fluid level sensor. continues to • Open the compartment covers and clean the insides of the display when ezDispense compartments with warm water. Use a soft detergent/ brush to remove any residue.
Page 69: Wi-Fi
• Find the Wi-Fi network connected to your smartphone and not connected to remove it, then register your appliance on LG ThinQ. the Wi-Fi network. Mobile data for your smartphone is turned on. • Turn off the Mobile data of your smartphone and register the appliance using the Wi-Fi network.
Page 70: Customer Care And Service
Customer Care and Service Contact an LG Electronics customer information centre. • To find an LG Electronics authorised service personnel, visit our website at www.lg.com and follow the instructions found there. • Self-repair is not recommended as it could further damage the device and void the guarantee.
