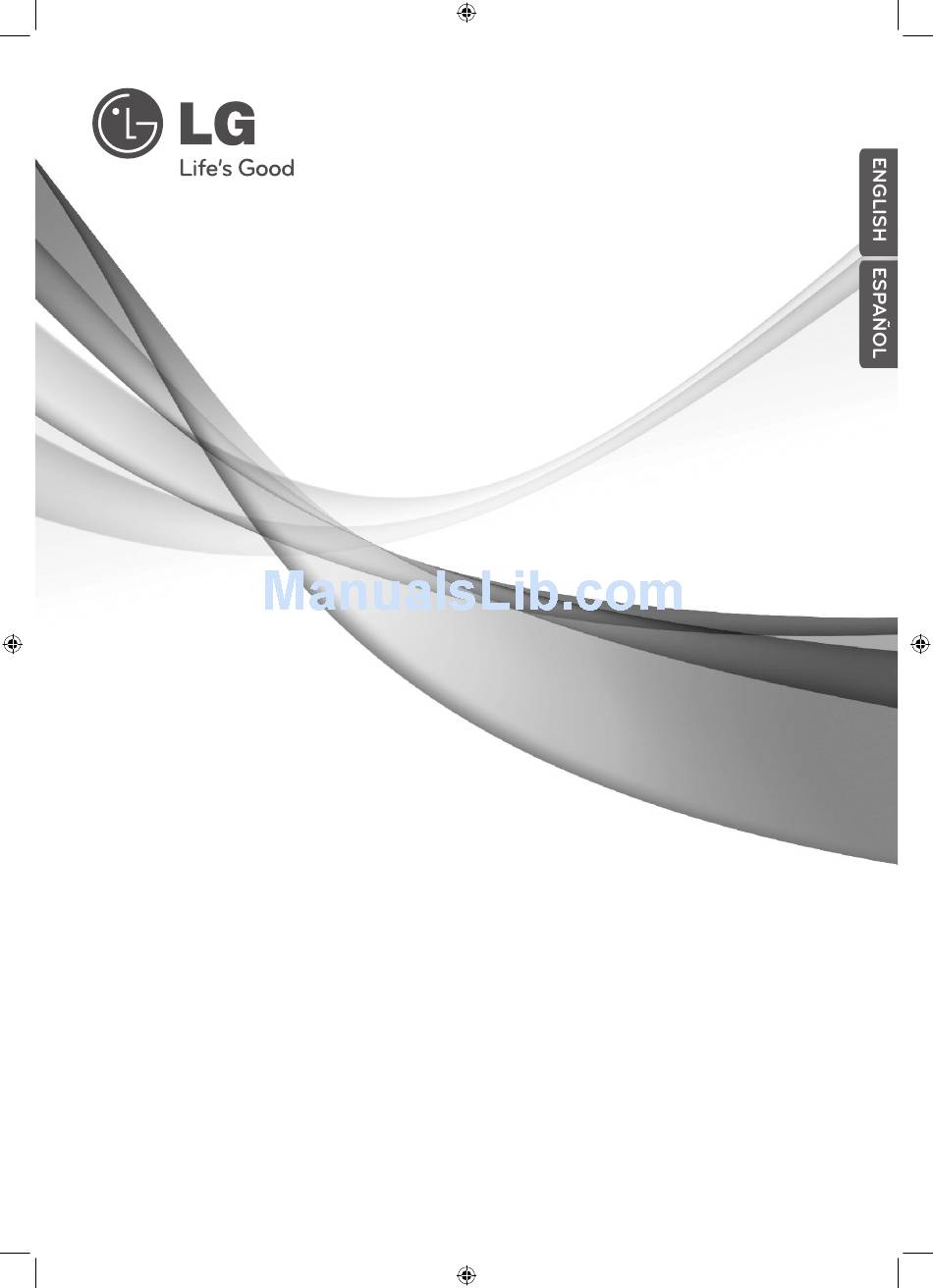

OWNER'S MANUAL
BOTTOM FREEZER
REFRIGERATOR
Please read this manual carefully before operating
your set and retain it for future reference.
MANUAL DE USUARIO
REFRIGERADOR
CON CONGELADOR INFERIOR
Lea detenidamente este manual antes
de empezar a utilizar el refrigerador y guárdelo
como referencia para el futuro.
Model Name/Nombre de Modelo **
LFC20770**
P/No. MFL67241801
Rev.1
MFL67241801_1.indd 2
=color number/número de color
www.lg.com
6/9/2011 12:31:38 PM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LFC20770SB and is the answer not in the manual?

Questions and answers

Related Manuals for LG LFC20770SB

Summary of Contents for LG LFC20770SB

  • Page 1 CON CONGELADOR INFERIOR Lea detenidamente este manual antes de empezar a utilizar el refrigerador y guárdelo como referencia para el futuro. Model Name/Nombre de Modelo ** LFC20770** P/No. MFL67241801 Rev.1 MFL67241801_1.indd 2 =color number/número de color www.lg.com 6/9/2011 12:31:38 PM...

  • Page 2: Warranty

    Visit our web site http://www.lg.com LG Electronics will repair or at its option replace, without charge, your product which proves to be defective in material or workmanship under normal use during the warranty period listed below from the date of original purchase.

  • Page 3: Table Of Contents

    Warranty English Version Spanish Version Important Safety Instructions Requirements for Ground Connection Parts and Features Refrigerator Installation Unpacking Installation Installation of Base Grille How to remove and Install the Refrigerator Doors How to remove and Install Pull-Out Drawer Closing and Aligning the doors Using your Refrigerator Ensuring Proper Air Circulation Multi Flow...

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS This manual contains several important safety notices. Always read and obey all of the following safety messages. This is the safety alert symbol. This symbol is a warning to potential dangers that could cause death, injury or damage to you, others or the product. All safety messages will follow after this warning symbol and the word “DANGER”, “CAUTION”...

  • Page 5: Requirements For Ground Connection

    The use of an extension cable will increase the amount of space needed behind the refrigerator. REPLACING ELECTRICAL CABLE If the power cord is damaged, it must be replaced by our service center or qualified LG technician to avoid any risk. WARNING 6/9/2011 12:31:41 PM...

  • Page 6: Parts And Features

    Drawer Model Read this section to familiarize yourself with the parts and features of your new refrigerator. NOTE: This guide covers different models. Your refrigerator could have some or all of the features and parts listed below. The location of some of the parts may not correspond to that of your model. Refrigerator Temperature Control Refrigerator Light Shelves...

  • Page 7: Refrigerator Installation

    WARNING EXCESSIVE WEIGHT HAZARD Use the assistance of two or more persons to move or install the refrigerator. Not following these instructions may cause injury to the back and other parts of the body. UNPACKING Before installing your refrigerator, remove any tape or temporary stickers.

  • Page 8: How To Remove And Install The Refrigerator Doors

    HOW TO REMOVE AND INSTALL THE REFRIGERATOR DOORS For moving the refrigerator through a house door, it might be necessary to remove refrigerator and freezer door handles. IMPORTANT: Before starting, turn off and unplug the refrigerator. Remove all food and the racks from the doors. 10 mm 1/4 in 3/8 in...
  • Page 9 • Loose the grounding screw (7) and the pins (8) located over the hinge, after, lift the hinge and remove it (9). • Remove the door and place it over its inner face to avoid scratching. 2. To install the refrigerator doors Right Door • Take the door and place it gently over the pin of the hinge (1).
  • Page 10 • Place the hinge’s lid (11) and screw the two screws (12). Check that the door is well installed. 3. To remove the refrigerator handle • Loose the screws (1) with the Allen tool 3/32” and remove the handle (2). • Remove the mounting screws with the 1/4”...

  • Page 11: How To Remove And Install Pull-Out Drawer

    6. To install the freezer handle • Install the mounting screws over the door (1) place the handle over them (2) and tight the screws up (3). HOW TO REMOVE AND INSTALL THE PULL OUT DRAWER IMPORTANT: To avoid possible injury or damage to the product or your property, please use two people to perform the following instructions: 1.
  • Page 12 • With both hands, hold the center of the bar and push it in so that it is fit to both rails simultaneously. CAUTION: When removing the drawer, do not hold the handle. If it comes off, it could cause personal injury.

  • Page 13: Closing And Aligning The Doors

    CLOSING AND ALIGNING THE DOORS Closing the Doors Your refrigerator has two front leveling screws, one on the right and one on the left. If your refrigerator seems unstable or if you would like the doors to close more easily, simply adjust the inclination of the refrigerator by following the instructions below: 1.

  • Page 14: Using Your Refrigerator

    ENSURING PROPER AIR CIRCULATION In order to obtain stable temperature, the air must flow between the freezer and refrigerator sections. As shown in the illustration below, the cold air enters through the bottom part and circulates upward. This air returns below the freezer floor and the rest of the air enters the refrigerator section through the top vent.

  • Page 15: Adjusting Control Settings

    ADJUSTING CONTROL SETTINGS Give the refrigerator time to cool down completely before adding food. It is best to wait 24 hours before adding food to the refrigerator. The mid-settings indicated in the previous section should be correct for normal household refrigerator usage.

  • Page 16: Refrigerator Section

    Packaging Recommendations: • Use sealed plastic containers. • Use plastic containers with a smooth surface. • Package with aluminum foil of high resistance. • Wrap with paper layered with plastic. • Use water proof plastic. • Use recommended plastic bags to store frozen foods. Follow these packaging or container instructions in order to reach the best freezing Do not use:...

  • Page 17: Pantry

    Sliding Shelves (in some models) You can slide some of the shelves in your refrigerator towards inside or outside like explained below. • To slide the shelf towards the outside: Pull towards you, figure A. • To slide the shelf towards the inside: Push until it stops, figure B.

  • Page 18: Optibin Crispers

    OPTIBIN CRISPERS The OptiBin crisper maintains fruits and vegetables fresh allowing you to easily control the humidity inside the drawers. The Optibin crispers include 1) a front humidity control and 2) a system that allows you to preserve or avoid humidity. Removing the Vegetable Drawer / Crisper • Slip out the drawer towards the outside until it stops (1).

  • Page 19: Dairy Compartment

    DAIRY COMPARTMENT(in some models) • To remove the dairy compartment, simply lift it and pull straight out (1). • To replace the dairy compartment, slide it in above the desired location and push down until it stops (2). EGG COMPARTMENT (in some models) Keep the eggs compartment in an interior shelf, not in a door rack.

  • Page 20: Refrigerator Care And Cleaning

    REFRIGERATOR CARE AND CLEANING WARNING EXPLOSION HAZARD Do not use flammable cleaners. Not following these instructions can cause death, explosion or fire. The refrigerator, as well as the freezer, do their own de-freezing. This process does not prevent the build up of contaminants, therefore it is suggested that you clean both parts once a month;...

  • Page 21: Power Interruptions

    REFRIGERATOR CARE AND CLEANING POWER INTERRUPTIONS In case of a black out, call your electric company and ask how long it will last. In case of a 24 hour or less black out, do not open the refrigerator; this will keep the food fresh. In case of a longer black out, do one of the following options: •...

  • Page 22: About The Automatic Ice Maker

    ABOUT THE AUTOMATIC ICE MAKER NOTE: The automatic Ice maker is only included in some models. Check your specifications of your refrigerator. WARNING PERSONAL INJURY HAZARD Avoid contact with any moving parts of the ejector mechanism or with the heater that releases the ice cubes.

  • Page 23: Connecting The Water Line

    BEFORE START The water source is not guaranteed by the refrigerator manufacturer. Follow instructions carefully in order to reduce damage. Air located inside the water pipes can cause hammering or tapping causing damage to the inner pipes or water spillage in the inside of the refrigerator. Call a qualified plumber to fix such hammering on the connections before installing the water pipe.
  • Page 24 3. DRILL A HOLE FOR THE VALVE Drill a 1/4” (6,35 mm) diameter hole water pipeline. Remove jagged edges produces after perforation. Make sure water does not reach the drill. Not performing the 1/4” (6,35 mm) perforation can lead to a low or smaller ice production.
  • Page 25 • Remove the ring plug (1) from the valve located at the top of such device. • Place compression nut and the ferule at the end of the pipeline. Insert pipeline into the connection valve as far as possible. Hold tightly while holding pipeline. Hold on to the pipe from the handles or grabbers located behind the refrigerator, loosing first the bolt holding the handle.

  • Page 26: Troubleshooting Guide

    UNDERSTANDING SOUNDS YOU MAY HEAR Your new refrigerator might produce certain noises that your previous refrigerator did not. It is normal if you worry. Most of the new sounds you will be hearing are actually normal and expected. Hard surfaces like walls or floor can increase sounds and make them sound louder than they really are.
  • Page 27 Problem STRANGE SOUNDS • The refrigerator is not correctly OR SNOOZING/ positioned. VIBRATIONS • The replaced refrigerator was an older model. • The room temperature is hotter than usual. • The door is being opened very often or there has been a big amount of IT LOOKS LIKE food in storage.
  • Page 28 Problem • The refrigerator is in defrosting THERE´S WATER IN cycle. THE DRAINING BIN • It’s more humid than usual. • The sounds may be normal for your REFRIGERATOR refrigerator. SEEMS TO MAKE TOO MUCH NOISE THE ICE MAKER IS • The smallest size of ice cubes is NOT PRODUCING selected.
  • Page 29 MFL67241801_1.indd 58 LG Customer Information Center 1-800-243-0000 USA, Consumer User 1-888-865-3026 USA, Commercial User 1-888-542-2623 CANADA Register your Product Online! www.lg.com 6/9/2011 12:33:56 PM...
