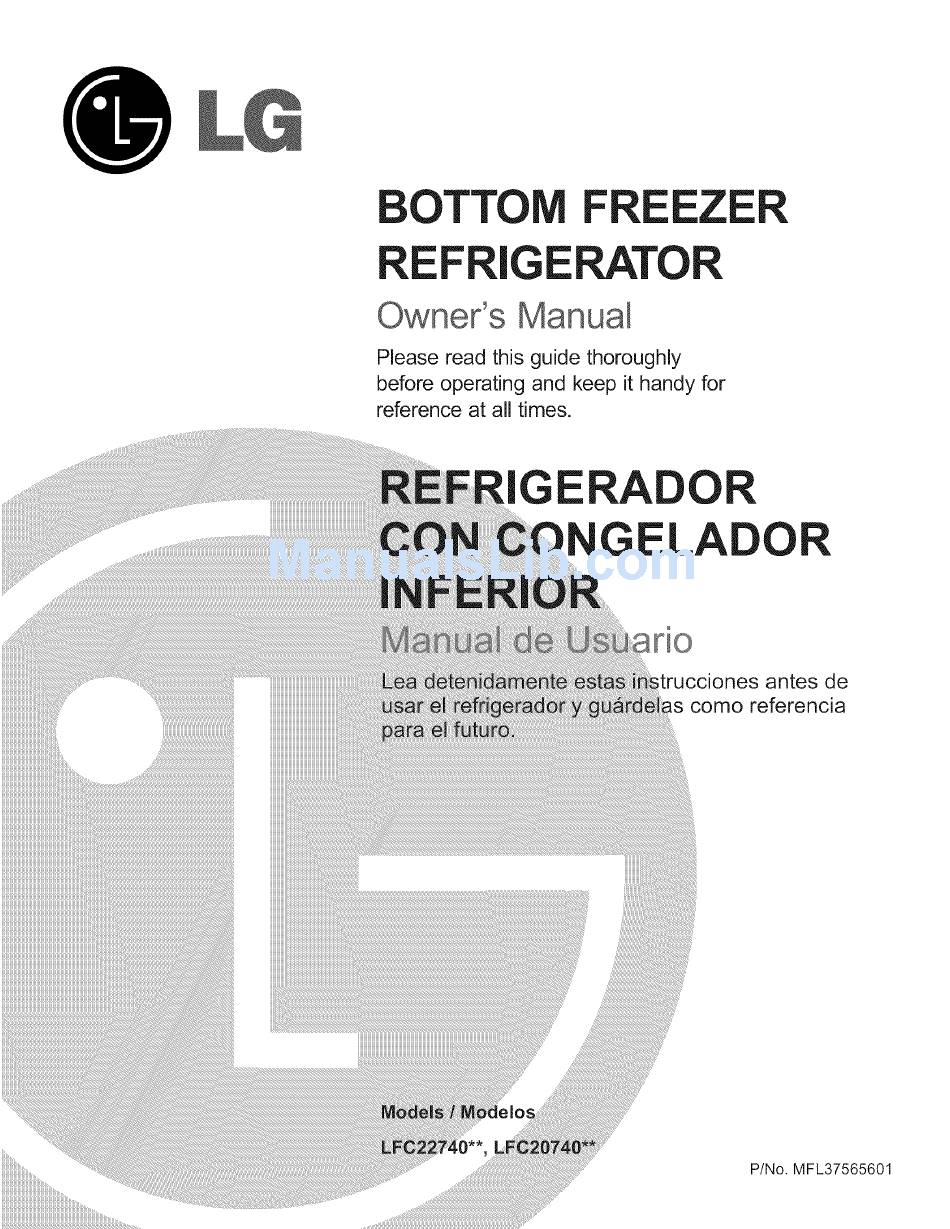

  • Page 1 BOTTOM Please read this guide thoroughly before operating and keep it handy for reference at all times. RADOR ELADOR ;trucciones antes de como referencia P/No. MFL37565601...
  • Page 2: Table Of Contents

    English Version Spanish Version Warranty (U.S.A.) 3 - 4 Safety Instructions 5 - 6 Grounding Requirements Parts and Features Refrigerator Installation 8 - 16 Unpacking your refrigerator Installation Base Grille Removing, Reversing and Replacing Your refrigerator doors 9 - 13 Pull out drawer Leveling and door alignment Using your refrigerator...
  • Page 3: Warranty (U.s.a.)

    United States of America LG Electronics will repair or at its option replace, without charge, your product which proves to be defective in material or workmanship under normal use during the warranty period listed below from the date of original purchase.
  • Page 4 GARANTIA LIMITADA Estados Unidos de Am6rica LG Electronics reparara o en su defecto reemplazara sin cargo, el producto defectuoso en material o mane de obra bajo uso normal durante el periodo de garantia que se menciona a continuacion desde la fecha original de compra.
  • Page 5: Safety Instructions

    This guide contains many important safety messages, Always read and obey all safety messages. This is the safety alert symbol, It alerts you to safety messages that inform you of hazards that can kill or hurt you or others, or cause damage to the product, All safety messages will be preceded by the safety alert symbol and the hazard signal word DANGER, WARNING, CAUTION.
  • Page 6: Grounding Requirements

    Use a receptacle which cannot be turned off with a switch qualified personal by LG Electronics, to avoid some or pull chain. Do not use an extension cord. risk.
  • Page 7: Parts And Features

    Usethissection to become morefamiliar w iththepartsandfeatures, NOTE: This guide covers several different models. The refrigerator you have purchased may have some or all of the items listed below. The locations of the features shown below may not match your model. Filter (Inside)* Digital Sensor Control * Dairy Bin...
  • Page 8: Refrigerator Installation

    INSTALLATION 1. Avoid placing the unit near heat sources, direct sunlight, or moisture. Excessive Weight Hazard 2. To avoid vibration, the unit must be level. If required, Use two or more people to move and install adjust the leveling screws to compensate for refrigerator.
  • Page 9 TOOLS NEED 1/4 in 3/8 in Hex head socket wrench Phillips screwdriver Flat head screwdriver HOWTO REMOVE DOOR HANDLES To move refrigerator through ahouse door, it may be, necessary to remove the refrigerator door handles. 1. Removing Refrigerator Handle , Grasp the handle tightly with both hands and slide the handle up (1)(this may require some force).
  • Page 10 HOW TO REMOVE REFRIGERATOR DOOR (models without water dispenser) 1. Removing Refrigerator Door NOTE: Handle appearance may vary. IMPORTANT." Before you begin, turn the refrigerator OFF and unplug it, Remove food and any bins from doors. Left Door , Loosen the cover screw (1). = Disconnect door switch wire (2).
  • Page 11 2. Replacing Refrigerator Door I_ Right Door • Lower the door onto the middle hinge pin (7). • Make sure the door is aligned with the cabinet, , Replace the top hinge (4) installing hinge screws (3) to secure it, •...
  • Page 12 REMOVING AND REPLACING REFRIGERATOR DOORS (models with water dispenser) 1. Removing Refrigerator Door NOTE: Handle appearance may vary, IMPORTANT." Before you begin, turn the refrigerator OFF and unplug it, Remove food and any bins from doors. I," Left Door • Loosen the screws and remove the cover on back side (see figure A). •...
  • Page 13 2. Replacing Refrigerator Door I_ Right Door • Lower the door onto the middle hinge pin (9). Make sure the door is aligned with the cabinet, • Replace the top hinge (7) installing hinge screws (6) to secure it. " Make sure the gasket on the door is flush against the cabinet and is not folded, Support the door on the handle side while securing hinge.
  • Page 14: Pullout Drawer

    HOW TO REMOVE AND INSTALL THE PULLOUT DRAWER , With both hands, hold both sides of the door and pull it up to separate it from the rails. IMPORTANT: To avoid possible inju_ product or property damage, you will need two people to perform the following instructions.
  • Page 15 HOW TO REMOVE AND INSTALL THE • Make sure you have a right rail cover for each side. PULLOUT DRAWER Right IMPORTANT: To avoid possible injur or product or property Rail cover damage, you will need two people to perform the following instructions.
  • Page 16: Leveling And Door Alignment

    LEVELING AND DOOR ALIGNMENT Door Alignment If the space between your doors is uneven, follow the Leveling instructions below to align the doors: Your refrigerator has two front leveling screws one on 1. With one hand, lift up the door you want to raise at the right and one on the left, If your refrigerator seems middle hinge, unsteady or you want the doors to close easier, adjust the...
  • Page 17: Using Your Refrigerator

    DOOR ALARM ENSURING PROPER AIR CIRCULATION With this feature you'll listen a alarm when the freezer or In order to ensure proper temperatures, air must flow refrigerator door is not closed within 1 minute after it is between the refrigerator and freezer sections. As shown opened.
  • Page 18: Adjusting Control Settings

    SETTING CONTROLS (Models dispenser) with water IMPORTANT: Wipe out moisture before using the NOTE: The average life of the filter is 6 months display button as operation of the button is based on [] WARNING: If a door is open the dispenser does not work touch sensing method and becomes slow or other buttons may operate if moisture is stuck to the surface...
  • Page 19: Food Storage Guide

    FOOD STORAGE GUIDE Packaging Successful freezing depends on correct packaging. When Storing Fresh Food you close and seal the package, it must not allow air or Wrap or store food in the refrigerator in airtight and moisture in or out. If you do, you could have food odor moisture-proof material unless otherwise noted.
  • Page 20: Refrigerator Section

    NOTE: Make sure that shelves are level from one side to REFRIGERATOR SECTION the other. Failure to do so may result in the shelf falling or spilling food, REFRIGERATOR SHELVES The shelves in your refrigerator are adjustable to meet Sliding Out Shelves (optional on some models) your individual storage needs.
  • Page 21: Chef Fresh

    CHEF FRESH / SNACK PAN OPTIBIN CRISPERS (on some models) While holding the chef fresh with one hand, pull it forward slightly. Lift slightly and pull it out, The OptiBin Crispers provide fresher-tasting fruit and vegetables by letting you easily control humidity inside the crisper.
  • Page 22: Crisper Cover With Lattice On Inner Surface

    DESIGN-A-DOOR CRISPER COVER WITH LATTICE ON INNER SURFACE (on some models) The door bins are removable for easy cleaning and adjusting. To remove the crisper cover: 1. To remove the bin, simply lift the bin up and pull straight out, 1.
  • Page 23: Freezer Section

    FREEZER SECTION ICE BIN (on some models) TILTING DOOR (on some models) 1. To separate the ice bin, pull out the drawer as much as The tilting door provides easy access for stored foods. possible. How to use: 2. Gently lift and pull out the ice bin. Tilt the door down and pull it out.
  • Page 24: Guide-Out Drawer Basket

    GLIDE- OUT DRAWER BASKET Tray can be easily removed by pressing and pulling it. (on some models) 1. To remove, lift basket up and pull out straight out. Tilt up the front of tray slightly and snap the ribs into the 2.
  • Page 25: Filter

    NOTE: There will be water in the cartridge, Some spilling It is recommended that you replace the filter when the may occur through the hole at rear bottom side of cover. water filter indicator light turns on or your water dispenser You may use a cup or something like that to prevent spilt or ice maker decreases noticeably.
  • Page 26: Care And Cleaning

    PLASTIC PARTS (covers and panels) Do not use paper towels, window sprays, abrasive cleansers, or flammable fluids. These can scratch or damage the material, CONDENSER COILS Remove grille base, (See the grille base section) Explosion Hazard Use a vacuum cleaner with an extended attachment to clean condenser coils.
  • Page 27: Power Interruptions

    WHEN YOU GO ON VACATION To change the freezer light: 1. Unplug refrigerator or disconnect power. If you choose to leave the refrigerator on while you are away, follow these steps to prepare your refrigerator 2, Reach behind light shield to remove bulb, before you leave.
  • Page 28: About The Custom Cube Ice Maker

    NOTE: Automatic Ice Maker feature is included only in When the bin fills to the level of the feeler arm, the certain models. Please check your product specification. icemaker will stop producing ice. It is normal for several cubes to be stuck together. If ice is not used frequently, old ice cubes will become cloudy, taste stale, and shrink.
  • Page 29: Connecting The Water Line

    NOTE: Water line installation is needed when the Two 1/4" outer diameter Automatic Ice Maker and/or Water Dispenser features compression nuts and are available on your product. 2 ferrules (sleeves) to connect the copper tubing to BEFORE YOU BEGIN the shutoff valve and the This water line installation is not warranted by the refrigerator water valve.
  • Page 30 INSTALLATION INSTRUCTIONS 7. CONNECT THE TUBING TO THE VALVE (CONTINUED) Place the compression nut and ferrule (sleeve) for copper tubing onto the end of the tubing and 4. FASTEN THE SHUTOFF VALVE connect it to the shutoff valve, Make sure the tubing is fully inserted into the valve.
  • Page 31 CONNECT THE TUBING TO THE 11. PLUG IN THE REFRIGERATOR REFRIGERATOR Arrange the coil of tubing so NOTES: that it does not vibrate against the back of the refrigerator or • Before making the connection to the refrigerator, be against the wall. Push the sure the refrigerator power cord is not plugged into refrigerator back to the wall, the wall outlet,...
  • Page 32 " The defrost timer will click when the automatic defrost UNDERSTANDING SOUNDS YOU MAY HEAR cycle begins and ends. The thermostat control (or refrigerator control, depending on the model) will also Your new refrigerator may make sounds that your old one click when cycling on and off.
  • Page 33 COMPRESSOR MOTOR SEEMS TO RUN TOO MUCH Check if.,. Then... The refrigerator that was replaced was an Modern refrigerators with more storage space require older model, more operating time. The room temperature is hotter than normal. The motor will run longer under warm conditions. At normal room temperatures, expect your motor to run about 40% to 80% of the time.
  • Page 34 ICE HAS OFF-TASTE OR ODOR Check if,.. Then,.. The icemaker was recently installed, Discard first few batches of ice to avoid discolored or off-flavored ice, The ice has been stored for too long, Throw away old ice and make new supply. The food has not been wrapped tightly in Rewrap foods since odors may migrate to the ice if food either compartment,...
  • Page 35 AUTOMATIC ICEMAKER DOES NOT WORK Check if,.. Then,.. Icemaker power switch in the O (off) position, Move the switch to the I (on) position, Water supply turned off or not connected, See the Connecting the Water Line section, Freezer compartment too warm, Wait 24 hours for the freezer to reach its ideal temperature, Piled up cubes in the storage bin cause the icemaker Level cubes by hand,...
  • Page 36: Spanish Version
