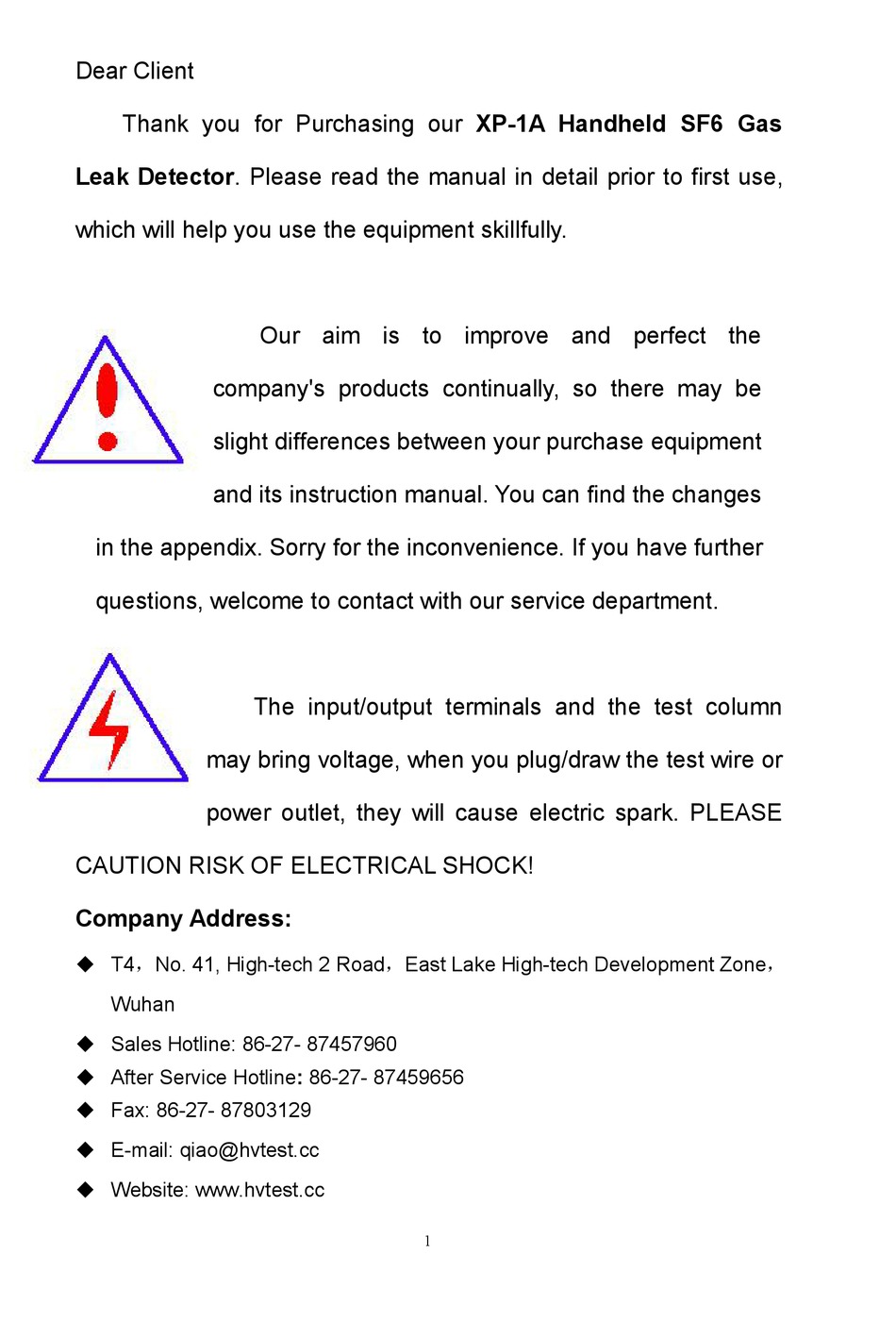

Dear Client
Thank you for Purchasing our XP-1A Handheld SF6 Gas
Leak Detector. Please read the manual in detail prior to first use,
which will help you use the equipment skillfully.
company's products continually, so there may be
slight differences between your purchase equipment
and its instruction manual. You can find the changes
in the appendix. Sorry for the inconvenience. If you have further
questions, welcome to contact with our service department.
may bring voltage, when you plug/draw the test wire or
power outlet, they will cause electric spark. PLEASE
CAUTION RISK OF ELECTRICAL SHOCK!
Company Address:
T4，No. 41, High-tech 2 Road，East Lake High-tech Development Zone，
Wuhan
Sales Hotline: 86-27- 87457960
After Service Hotline: 86-27- 87459656
Fax: 86-27- 87803129
E-mail: qiao@hvtest.cc
Website: www.hvtest.cc
Our aim is to improve and perfect the
The input/output terminals and the test column
1
Advertisement
Table of Contents
Related Manuals for HVTest XP-1A
Summary of Contents for HVTest XP-1A
- Page 1 Dear Client Thank you for Purchasing our XP-1A Handheld SF6 Gas Leak Detector. Please read the manual in detail prior to first use, which will help you use the equipment skillfully. Our aim is to improve and perfect the company's products continually, so there may be slight differences between your purchase equipment and its instruction manual.
- Page 2 SERIOUS COMMITMENT All products of our company carry one year limited warranty from the date of shipment. If any such product proves defective during this warranty period we will maintain it for free. Meanwhile we implement lifetime service. Except otherwise agreed by contract.
- Page 3 ground pole of the shell must be grounded. To prevent electric shock, the grounding conductor must be connected to the ground. Make sure the product has been grounded correctly before connecting with the input/output port. Pay Attention to the Ratings of All Terminals To prevent the fire hazard or electric shock, please be care of all ratings and labels/marks of this product.
- Page 4 －Security Terms Warning: indicates that death or severe personal injury may result if proper precautions are not taken Caution: indicates that property damage may result if proper precautions are not taken.
-
Page 5: Table Of Contents
Content I. Overview....................6 II. Features....................6 III. Instrument composition..............7 IV. Preparation...................7 V. Operation instruction................8 VI. Leakage preparation................10 VII. Precautions..................10 VIII. Application..................11 IX. Maintenance..................11 X. Technical parameters................12... -
Page 6: Overview
I. Overview Micro-tech central processing unit is the core of the product; its digital signal processing capabilities can better manage the circuit and deal with the detection signal. Due to extensive use of integrated circuits reduce the quantity of circuit elements 40%, greatly improve the reliability and efficiency. Microprocessor can monitor probes and battery voltage with 4000 times per second, tiny signal can also be captured, in any circumstance can work stable and reliable. -
Page 7: Instrument Composition
10. Vacuum mechanical pump sampling; provide positive draft for the probe. 11. With gradient function. 12. Wireless, portable, just need two batteries. 13. 35 cm flexible stainless steel probe rod. III. Instrument composition 1. Probe 2. Probe guards 3. Power switch 4. -
Page 8: Operation Instruction
V. Operation instruction 1. Power indicate/ battery test The instrument has two ways to indicate the battery status. One is permanent state. By leftmost LEDs indicate battery. Specific instructions are as follows: GREEN: normal battery power. ORANGE: low battery, battery should be replaced as soon as possible. RED: battery power is low, unable to work. - Page 9 measured. Reset function - Press the reset, clear reset function. When you press the reset button, the instrument will be reset to zero, ignoring the presence of refrigerant around the probe. Such operations can be detected at higher concentrations. The instrument is reset to a clean air can be adjusted to the maximum sensitivity.
-
Page 10: Leakage Preparation
First, the green from left to right, then orange, and replace green individually. Finally, from left to right in red, orange is replaced individually. VI. Leakage preparation 1. Open the battery switch, the light-emitting diode displays reset indication 2 seconds (left green light, other light orange). 2. -
Page 11: Application
eliminate the environmental impact of the instrument. Do not move the probe when reset. The instrument can be reset as many times as needed. 3. Windy areas, even a large leak is also difficult to find. In this case, the best blocking potential leak area. -
Page 12: Technical Parameters
removed Before using this product, you have to check the probe and shield are free from dust or grease. Clean: 1. Remove the protective cover. 2. Use industrial towel or compressed air to clean the cover. 3. If the probe is dirty, it can be immersed in a mild detergent such as alcohol for a few seconds, then use industrial towel or compressed air to clean. - Page 13 10. Warm-up time: about 2s. 11. Weight: 560 g. 12. Dimension: 22.9×6.5×6.5cm. 13. Length of probe rod: 35.5cm.
