Model: UCL/REMOTE1
ONE
YNC

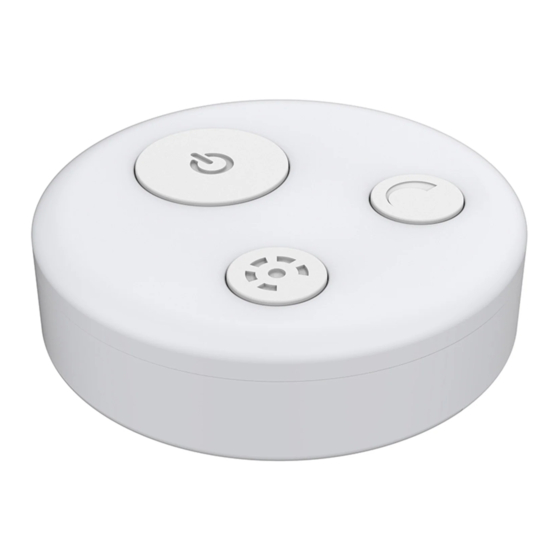

UNDER CABINET DISK REMOTE
IMPORTANT SAFETY INSTRUCTIONS
AND INSTALLATION GUIDE
READ BEFORE INSTALLATION
SAVE THESE INSTRUCTIONS
Questions, problems, missing parts? Before returning to the store,
call Feit Electric Customer Service
8 a.m. - 5 p.m., PST, Monday - Friday
1-866-326-BULB (2852)
FEIT.COM
We appreciate the trust and confidence you have placed in Feit Electric through the purchase of this Under Cabinet Disk Remote. We strive to continually create quality products
designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Feit Electric.
Advertisement
Table of Contents
Related Manuals for Feit Electric OneSync UCL/REMOTE1
Summary of Contents for Feit Electric OneSync UCL/REMOTE1
- Page 1 FEIT.COM We appreciate the trust and confidence you have placed in Feit Electric through the purchase of this Under Cabinet Disk Remote. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
- Page 2 Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. Feit Electric Company, 4901 Gregg Road, Pico Rivera, CA 90660. www.feit.com, 1-800-543-3348.
- Page 3 Pre-Assembly TOOLS REQUIRED PHILLIPS PENCIL SCREW DRIVER HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity Disk Remote Mounting Plate Mounting Screw Mounting Guide DEVICE COMPATIBILITY LIST (Max 100 paired units) UCL12/5CCT UCL24/5CCT UCL36/5CCT UCL12FP/5CCTCA UCL18FP/5CCTCA UCL24FP/5CCTCA BPUCL/PUCK/5CCT/3 UCL192/FLEX/5CCT WWW.FEIT.COM...
- Page 4 Screw Mount Installation Position the Remote Installing Mounting Plate Find the desired location for the Mounting Plate (BB) and Screw in the metal Mounting Plate (BB) using mark clearly using the provided Mounting Guide (DD). the mounting screws (CC) on the marked location. NOTE: The Mounting Plate can be installed horizontally or vertically.
- Page 5 Operating Instructions ON/OFF Button CCT Button Dim Button Initial Remote Recognition The first time pairing fixtures to the remote requires that the fixtures recognize the specific remote. Power on the fixture & hold the ON/OFF button on the remote for 3 seconds. Lights will blink once the units have recognized the remote. This can be done with multiple fixtures at once.
- Page 6 Mounting Guide CUT OUT TEMPLATE Disk Remote Mounting Plate Cut here 3in. 2.4in. WWW.FEIT.COM Please contact 1-866-326-BULB (2852) for further assistance.
