Model: UCL/REMOTE2
ONE
YNC

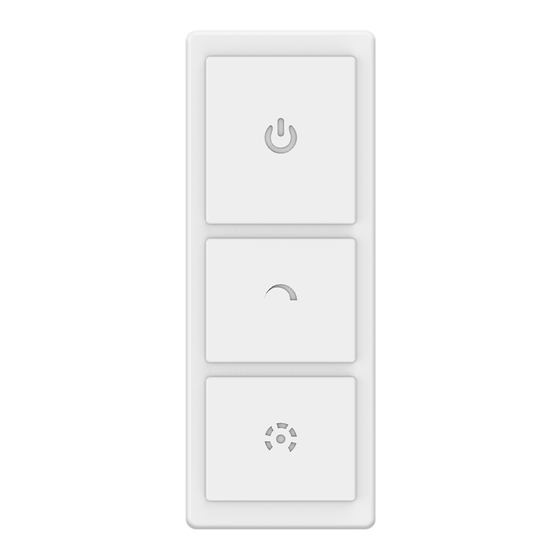

UNDER CABINET HANDHELD REMOTE
IMPORTANT SAFETY INSTRUCTIONS
AND INSTALLATION GUIDE
READ BEFORE INSTALLATION
SAVE THESE INSTRUCTIONS
Questions, problems, missing parts? Before returning to the store,
call Feit Electric Customer Service
8 a.m. - 5 p.m., PST, Monday - Friday
1-866-326-BULB (2852)
FEIT.COM
We appreciate the trust and confidence you have placed in Feit Electric through the purchase of this Under Cabinet Remote. We strive to continually create quality products
designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Feit Electric.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Feit Electric UCL/REMOTE2
Summary of Contents for Feit Electric UCL/REMOTE2
- Page 1 FEIT.COM We appreciate the trust and confidence you have placed in Feit Electric through the purchase of this Under Cabinet Remote. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
- Page 2 Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. Feit Electric Company, 4901 Gregg Road, Pico Rivera, CA 90660. www.feit.com, 1-800-543-3348.
- Page 3 Pre-Assembly TOOLS REQUIRED PHILLIPS FLATHEAD PENCIL SCREW DRIVER SCREW DRIVER HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity Handheld Remote Mounting Plate Mounting Screw Mounting Guide 3M Tape DEVICE COMPATIBILITY LIST (Max 100 paired units) UCL12/5CCT UCL24/5CCT UCL36/5CCT UCL12FP/5CCTCA...
- Page 4 Screw Mount Installation Position the Remote Installing Mounting Plate Find the desired location for the Mounting Plate (BB) and Snap the front of the Mounting Plate (BB) onto the mark clearly using the provided Mounting Guide (DD). mounted backplate. NOTE: The Mounting Plate can be installed horizontally or vertically.
- Page 5 Adhesive Mount Installation Install 3M Tape on Mounting Plate Install the Mounting Plate Remove one side of the adhesive backing paper on the 3M Remove the adhesive backing paper on the 3M Tape (EE) and Tape (EE) and place in the indents on the back of the place on wall on desired location.
- Page 6 Operating Instructions ON/OFF Button DIM Button CCT Button Initial Remote Recognition The first time pairing fixtures to the remote requires that the fixtures recognize the specific remote. Power on the fixture & hold the ON/OFF button on the remote for 3 seconds. Lights will blink once the units have recognized the remote. This can be done with multiple fixtures at once.
- Page 7 Mounting Template CUT OUT TEMPLATE Mounting Plate Cut here 3.2in. 4.5in. 2.8in. WWW.FEIT.COM Please contact 1-866-326-BULB (2852) for further assistance.
