Summary of Contents for LINKED LZ8

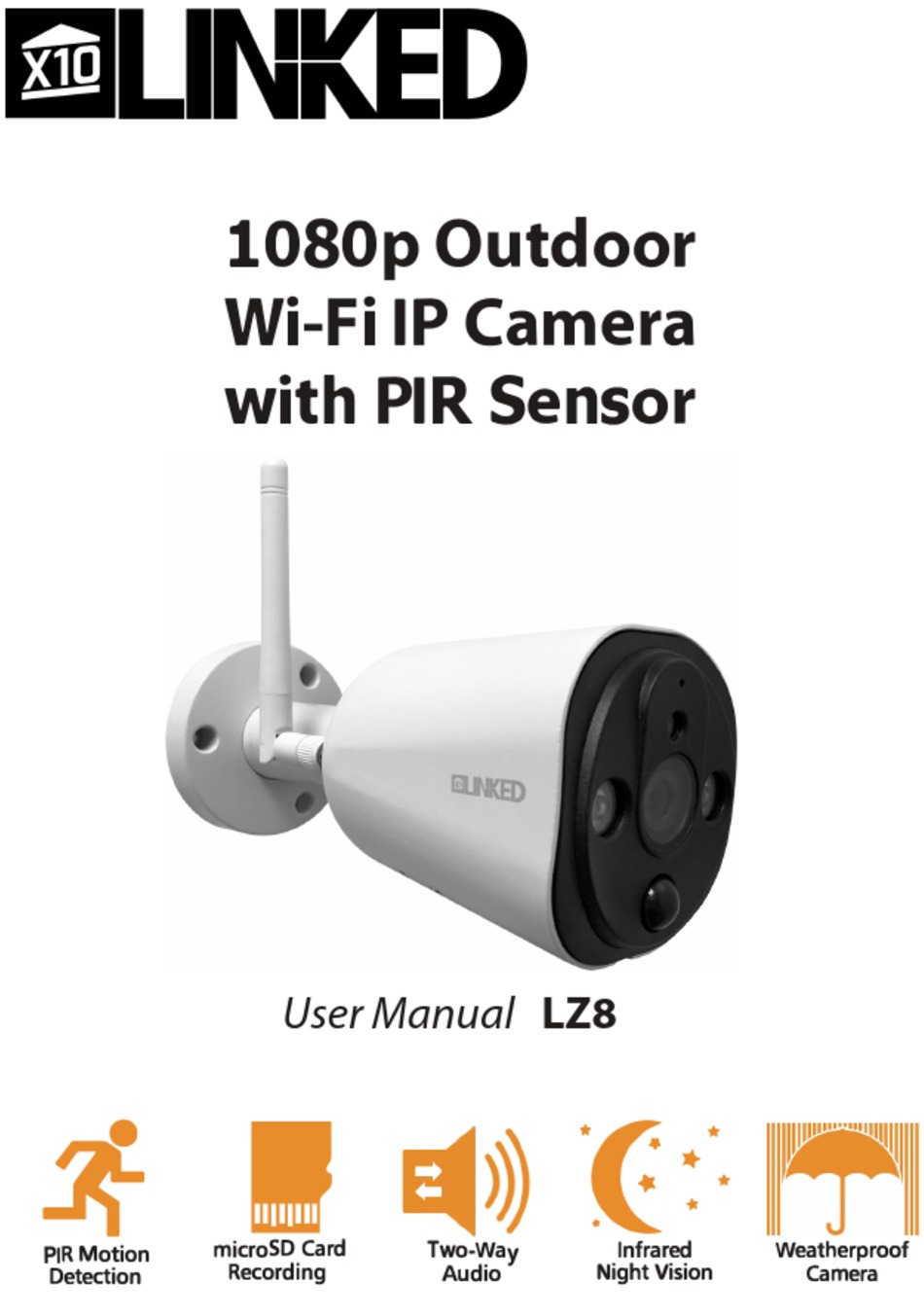

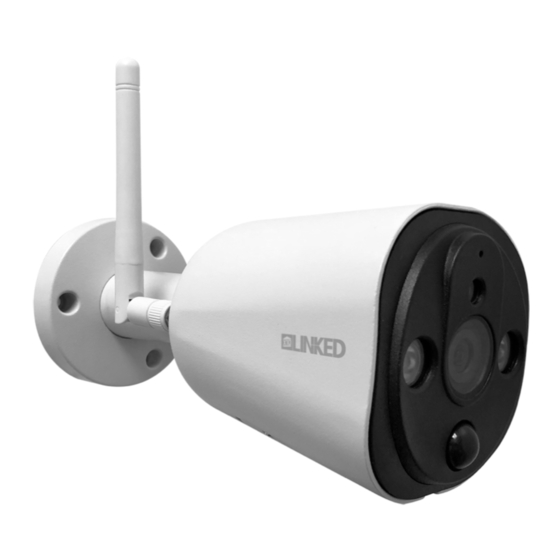

- Page 1 1080p Outdoor Wi-Fi IP Camera with PIR Sensor User Manual LZ8 · e: • * � • micr oSD Card Two-Way Infrared Weatherproof Recording Night Vision Audio Camera Detection...
- Page 2 Quick Guide: ▪ Connect the cameras power adaptor to a suitable 110VAC wall outlet. Plug the power cable into the DC power socket of the Wi-Fi camera and turn on. ▪ The microSD card (16GB) is included in the box and is pre-installed. Should you need to access the SD card or install another follow the steps below: ▪...
- Page 3 ▪ All Done! Screw the back on the cover. ▪ Download the app "X10 Linked" from Google Play or the Apple App store. Open the app once installed. ▪ AppName: X10 Linked ▪ Sign up to an account by entering a username and password.
-
Page 4: Box Contents
Box Contents: 1 x 1080p Outdoor Wi-Fi IP Camera 1 x 16GB SD Card (in box) 1 x Power Adaptor 1 x Mounting Hardware 1 x Adjustement Wrench for Mount... -
Page 5: Installation And Mounting
LED Status Indicator: Colour Description Green Connected/ Working Green Flashing Connecting To Wi-Fi/ Setup Installation & Mounting: ▪ The SD Card comes in the box and will need to be installed. Please view the instructions on page 2 of this guide. - Page 6 ▪ On the very back just on the inside of the mounting stem of the camera is a metal plate and screws. Adjusting the tightness of these screws will tighten the pressure on the plate and hinge and keep the camera in a solid position. ▪...
- Page 7 ▪ Once the device is powered up; the LED status indicator should display green indicating start up. Setup: ▪ Download the app "X10 Linked" from Google Play or the Apple App store. Open the app once installed. App Name: X10 Linked...
- Page 8 ▪ Once you have downloaded and installed the app; open the app and a sign in page should display. ▪ Press the sign up button for first time use. ▪ Enter a valid email address for the username and press the "Send code" button to receive a validation code to that email.
- Page 9 ▪ Enter the code that was sent to your email . ▪ Choose a password for your X10 Linked account and enter it twice (once for verification). ▪ When ready, hit the "Register Immediately" button ▪ Enter your username and password into the sign in screen and press the "sign...
- Page 10 ▪ Press the add camera button to connect the IP camera or the + button in the top left hand corner. ▪ Press the "connecting my camera" button; you will also notice a voice prompt will guide you through the setup.
- Page 11 ▪ Connect to your local modem/router by pressing the select button. 10. Choose your local Wi-Fi network from the list on your smartphone. Press the scan button if you wish to refresh the Wi-Fi list.
- Page 12 ▪ Select your appropriate time zone depending on which state and country you're from. ▪ Ensure the volume on your smartphone is turned all the way up. Place your smartphone close to the microphone located in the dongle of the camera so it's able to hear the pairing sound correctly.
- Page 13 ▪ Press the sound wave button to send a pairing sound to the IP camera. Ensure your smartphone is placed right next to the IP camera and in you're in a low level sound environment.
- Page 14 ▪ The sound paring signal will now be playing. If you can't hear the sound, make sure your smartphone volume is all the way up. ▪ The camera will now start pairing with your route. If the pairing is unsuccessful and you are not directed to the next page within 5-10 minutes, some error has occurred and you can try sending the sound wave again.
- Page 15 ▪ If pairing is successful, the camera will switch to the connecting wifi page where it will finalize the connection with your router. Once complete, your camera will be added and available to view.
-
Page 16: Operation
Operation: Recording: record rrom your Smartphone: smartphon0; open the cam0ra in your device list once successfully paired. l'ress Lhe rernrdinq bulton in the botlorn lefl hilnrl rnrn0r to b0ing r0rnrrlmg on your smartphone. Press the recording button again to stop recording. - Page 17 switch to live view once it has been activated • Playback: Open the smartphone app and press the playback button which is underneath the camera in the device list. This will play back the recordings from the microSD card. To play back the recordings from your smartphone;...
- Page 22 Motion Sensitivity...
- Page 29 Album: View the saved recordings and images. Located in the top right corner, you're able to share the images through social media such as Facebook, Twitter, email or SMS. About Us: Displays the current app version. Logout: Press this button to logout from the app and return to the login screen.
- Page 34 inst0bllity inslull lnst0II th0 distrlbt1tlnn thr, unH t ,m'1 show llieWi I 1 sl1ow11HJ...
- Page 38 FAQ: 1. Q: I have forgotten my password. A: Pre,, Lhe forqel pd»word bullon to rNncvo it via your ,ocunty cmilil address. If you have not set this; please contact your place of purchase to have the unit reset. 2. Q: Can more than one person view my camera A: Yes, up to 1 S users Gm view a single camera.
- Page 39 8. Q: Can the camera be setup via my PC? A: The cdmerd need, lo be ,etup by d ,martphorw using the Linked App. 9. Q: Can I delete my camera from the app? A: Yes; you can delete the camera from...
-
Page 40: Frame Rate
SPECIFICATIONS MODEL LZ8 - White STORAGE TF (Micro SD) Card - 16Gb card pre-installed. MAXIMUM STORAGE 64 GB EFFECTIVE PIXELS 2 Megapixel WIFI Supports 2.4Ghz 802.11 b/g/n OPERATION TEMPS -4ºF to 122ºF INTERNET IN CLIENT Supports WiFi 2G/3G/4G/5G FRAME RATE... - Page 41 Distibuted by: X10.com LZ8 Outdoor HD WiFi IP Camera For help, please visit https://www.x10.com/ x10customersupport.html...
