Summary of Contents for LINKED LZ3

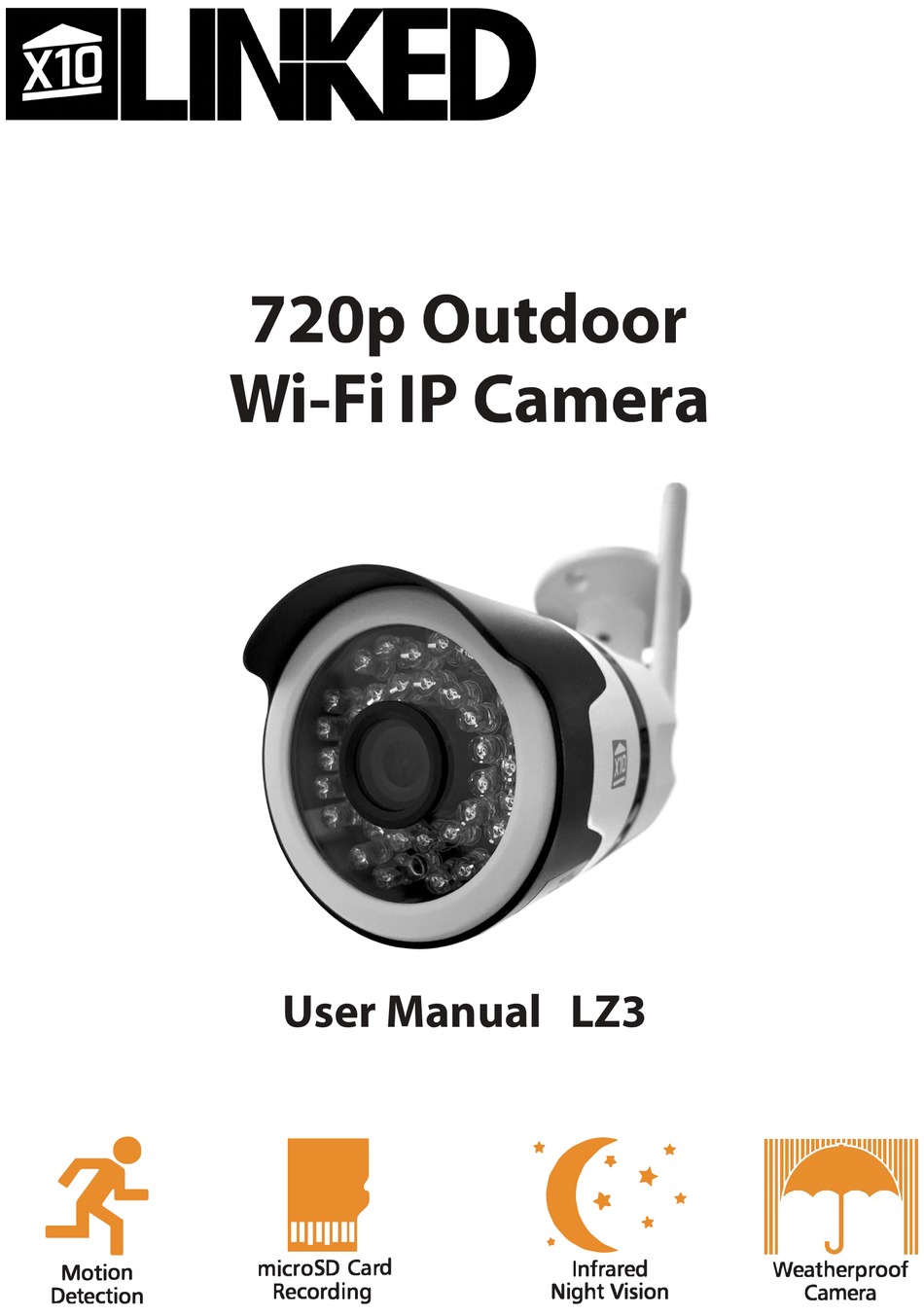

- Page 1 720p Outdoor Wi-Fi IP Camera User Manual LZ3 · e: • * � • micr oSD Card Infrared Weatherproof Mot ion Recording Night Vision Camera Detection...
- Page 2 ▪ The microSD card comes pre-installed (16GB) into the microSD card slot located in the bottom compartment of the unit. ▪ Download the app "X10 Linked" from Google Play or the Apple App store. Open the app once installed. AppName: X10 Linked ▪...
- Page 3 ▪ Select your available Wi-Fi home network and enter the correct password. Once selected then proceed to select your current time zone (android). ▪ Ensure the volume is all the way up on your smartphone and place it next to the IP camera's microphone.
-
Page 4: Box Contents
Box Contents: 1 x 720p Outdoor Wi-Fi IP Camera 1 x 16GB SD Card (pre-installed) 1 x Power Adaptor 1 x Mounting Hardware 1 x Adjustement Wrench for Mount... -
Page 5: Product Diagram
Product Diagram:... -
Page 6: Installation And Mounting
LED Status Indicator: Colour Description Green Connected/ Working Green Flashing Connecting To Wi-Fi/ Setup Installation & Mounting: ▪ The SD Card comes pre-installed. It is located in the compartment on the bottom of the camera. ▪ It can be accessed by unscrewing the two screws and pressing in on the SD Card to pop it back out. - Page 7 ▪ Before mounting the camera, you may wish to complete the app setup process first. Your smartphone is required to be placed near the cameras microphone to complete the app setup. If your camera is mounted in a high place such as a wall or ceiling;...
- Page 8 (sold separately) from our store. It is the LZ3-EXT and it provides an additional 15 feet of cable. ▪ Once the device is powered up; the LED status indicator should display green indicating start up.
- Page 9 ▪ Once you have downloaded and installed the app; open the app and a sign in page should display. ▪ Press the sign up button for first time use. ▪ Enter a valid email address for the username and press the "Send code" button to receive a validation code to that email.
- Page 10 ▪ Enter the code that was sent to your email . ▪ Choose a password for your X10 Linked account and enter it twice (once for verification). ▪ When ready, hit the "Register Immediately" button ▪ Enter your username and password into the sign in screen and press the "sign...
- Page 11 ▪ Press the add camera button to connect the IP camera or the + button in the top left hand corner. ▪ Press the "connecting my camera" button; you will also notice a voice prompt will guide you through the setup.
- Page 12 ▪ Connect to your local modem/router by pressing the select button. 10. Choose your local Wi-Fi network from the list on your smartphone. Press the scan button if you wish to refresh the Wi-Fi list.
- Page 13 ▪ Select your appropriate time zone depending on which state and country you're from. ▪ Ensure the volume on your smartphone is turned all the way up. Place your smartphone close to the microphone located in the dongle of the camera so it's able to hear the pairing sound correctly.
- Page 14 ▪ Press the sound wave button to send a pairing sound to the IP camera. Ensure your smartphone is placed right next to the IP camera and in you're in a low level sound environment.
- Page 15 ▪ The sound paring signal will now be playing. If you can't hear the sound, make sure your smartphone volume is all the way up. ▪ The camera will now start pairing with your route. If the pairing is unsuccessful and you are not directed to the next page within 5-10 minutes, some error has occurred and you can try sending the sound wave again.
- Page 16 ▪ If pairing is successful, the camera will switch to the connecting wifi page where it will finalize the connection with your router. Once complete, your camera will be added and available to view.
-
Page 17: Operation
Operation: Recording: record rrom your Smartphone: smartphon0; open the cam0ra in your device list once successfully paired. l'ress Lhe rernrdinq bulton in the botlorn lefl hilnrl rnrn0r to b0ing r0rnrrlmg on your smartphone. Press the recording button again to stop recording. - Page 23 Motion Sensitivity...
- Page 30 Album: View the saved recordings and images. Located in the top right corner, you're able to share the images through social media such as Facebook, Twitter, email or SMS. About Us: Displays the current app version. Logout: Press this button to logout from the app and return to the login screen.
- Page 36 Some additional settings are found by right clicking on your camera in the device list located on the right hand side. Refr�hht Play video Delete camera Video playb;,ck Alarm sMting Turn off LED lights Change umcra's name Administrate the binding ustr You can choose between refreshing the video list, play video, deleting the camera, video playback, alarm settings, turning off...
-
Page 47: Specifications
Specifications: Wi Fi Fr0qu0nry: 7.4GH7 Image Sensor: 1/4" C.MOS Resolution: 720p (1280 x 720) Megapixel: 1.0 Frame Rate: up to 30fps Viowing /Ingle: 100'' Video Compression: H.264 Video r orrndt: .26'1 lnfrarorl: :is X IR I FD, Infrared Range: Up to 20111 Supported Usor flcrounts: ·... - Page 48 Distibuted by: X10.com LZ3 Outdoor HD WiFi IP Camera For help, please visit https://www.x10.com/ x10customersupport.html...
