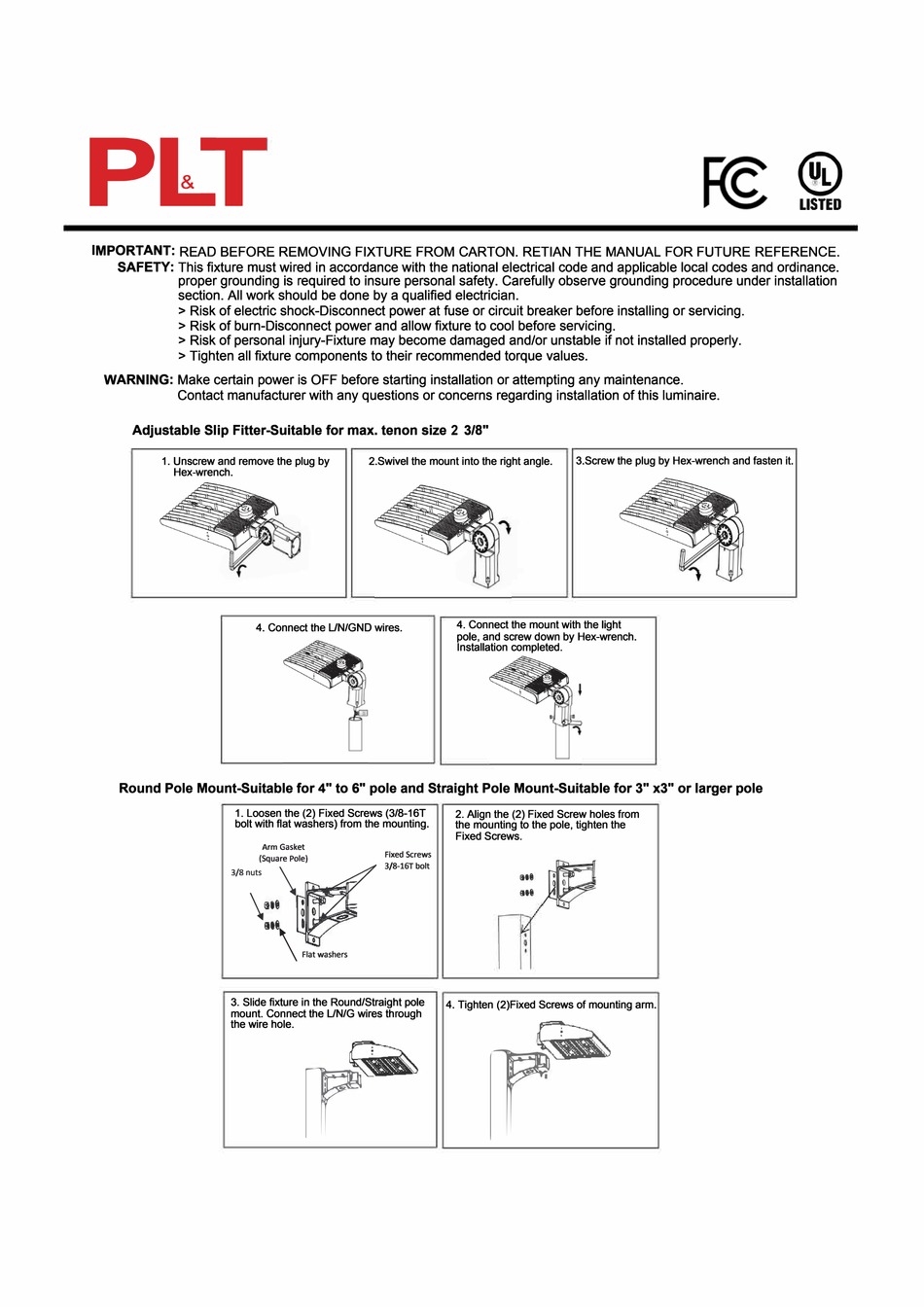

PL&T PLT-11562 Manual

PL..T
IMP O R T AN T : READ BEFORE REMOVING FIXTURE FROM CARTON. RETIAN THE MANUAL FOR FUTURE REFERENCE.
SAFE T Y: This fixture must wired in accordance with the national electrical code and applicable local codes and ordinance.
proper grounding is required to insure personal safety. Carefully observe grounding procedure under installation
section. All work should be done by a qualified electrician.
> Risk of electric shock-Disconnect power at fuse or circuit breaker before installing or servicing.
> Risk of burn-Disconnect power and allow fixture to cool before servicing.
> Risk of personal injury-Fixture may become damaged and/or unstable if not installed properly.
> Tighten all fixture components to their recommended torque values.
WARN I NG: Make certain power is OFF before starting installation or attempting any maintenance.
Contact manufacturer with any questions or concerns regarding installation of this luminaire.
Adjustable Slip Fitter-Suitable for max. tenon size 2 3/8"
1. Unscrew and remove the plug by
Hex-wrench.
4. Connect the UN/GND wires.
Round Pole Mount-Suitable for 4" to 6" pole and Straight Pole Mount-Suitable for 3" x3" or larger pole
1 . Loosen the (2) Fixed Screws (3/8-16T
bolt with flat washers) from the mounting.
Arm Gasket
(Square Pole)
3/Bnuts
\1111
111@
3. Slide fixture in the Round/Straight pole
mount. Connect the L/N/G wires through
the wire hole.
2.Swivel the mount into the right angle.
Fixed Screws
3/8-16T bolt
\
; O .,,.
�
I
\
Fla: washers
4. Tighten (2)Fixed Screws of mounting arm.
I F
�
3.Screw the plug by Hex-wrench and fasten it.
4. Connect the mount with the light
pole, and screw down by Hex-wrench.
Installation completed.
2. Align the (2) Fixed Screw holes from
the mounting to the pole, tighten the
Fixed Screws.
HI
HI
IF
�
®
