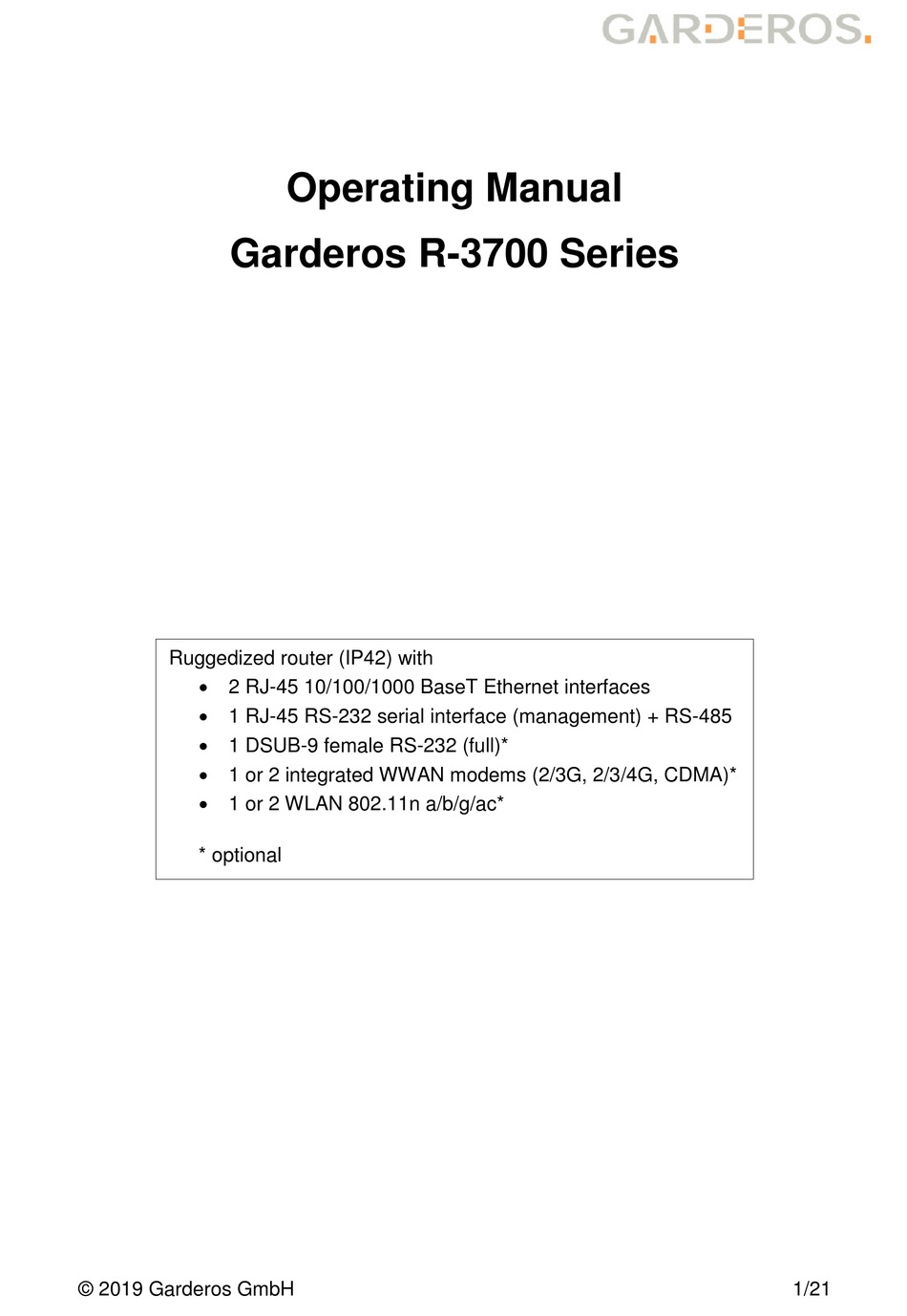

Operating Manual
Garderos R-3700 Series
Ruggedized router (IP42) with
 2 RJ-45 10/100/1000 BaseT Ethernet interfaces
 1 RJ-45 RS-232 serial interface (management) + RS-485
 1 DSUB-9 female RS-232 (full)*
 1 or 2 integrated WWAN modems (2/3G, 2/3/4G, CDMA)*
 1 or 2 WLAN 802.11n a/b/g/ac*
* optional
© 2019 Garderos GmbH
1/21

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R-3700 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Garderos R-3700 Series

Summary of Contents for Garderos R-3700 Series

  • Page 1 Operating Manual Garderos R-3700 Series Ruggedized router (IP42) with  2 RJ-45 10/100/1000 BaseT Ethernet interfaces  1 RJ-45 RS-232 serial interface (management) + RS-485  1 DSUB-9 female RS-232 (full)*  1 or 2 integrated WWAN modems (2/3G, 2/3/4G, CDMA)* ...

  • Page 2: Safety Instructions

    70 °C, so the surface can get very hot. Install the router inaccessible for unauthorized personnel. Before touching the router, remove the power supply and wait for 10 minutes for the router to cool down or wear protective gloves. © 2019 Garderos GmbH 2/21...

  • Page 3: General Information

    2 General information 2.1 Router type The Garderos R-3700 routers are available as several different models with optional WLAN, 2G/3G/4G and CDMA interfaces. This document is a general description for the following router types: Type Eth. RS-232 RS-232 RS-485 WLAN...

  • Page 4: Installation

    3 Hardware 3.1 Installation The Garderos R-3700 has 2 options for mounting. 3.1.1 Mounting on integrated DIN rail mounting clip Mount the router on a DIN rail as shown in the following drawing. Insert the upper metal hook to the DIN rail first, and then push the plastic holder into the bottom part of the DIN rail until it clicks in (see picture).
  • Page 5 IP 42. Insert the upper part of the clip to the DIN rail, then push the router down and insert the DIN rail clip to the rail on the lower part. For unmounting push the router down and remove the lower part of the clip from the DIN rail first. © 2019 Garderos GmbH 5/21...
  • Page 6 IEC 61850-3. For grounding attach a 1.5mm² ground cable with a 0.8 x 2.8mm flat connector to the spade connector on the R-3700 router as shown in the following picture. © 2019 Garderos GmbH 6/21...

  • Page 7: Status Leds

    3.2 Status LEDs The Garderos R-3700 has 8 LEDs on the front, showing its operational status. All LEDs, except from the Ethernet LEDs that are integrated into the RJ-45 Ethernet sockets, are clearly marked on the casing: Shows the status of the router’s power supply and is lit P (green) during the entire period of operation.
  • Page 8 3.3 Connectors Depending on the type, the Garderos R-3700 routers have different connectors on the front. All possible connectors are described below; the image shows the front panel of an R-3728 with an optional RS-232 DSUB9 connector as an example. The R-3700 routers have 2 SIM card slots on the back: Power connection.
  • Page 9 3.3.4 Optional RS-232 connector The R-3700 series routers can be equipped with an additional fully allocated DSUB-9 connector for RS-232. This must be ordered as a special option. The DSUB-9 socket is allocated in the following way: PIN no.
  • Page 10 4 Software The Garderos R-3700 routers run the Garderos Router Software (GRS) operating system. GRS provides the following functions:  Router operating system  Automatic management of the configuration:  Local configuration (startup configuration) to configure the router locally. ...
  • Page 11 Remove the DIN rail mounting kit by pushing the safety lock to the left and pushing the DIN rail mounting kit up at the same time, as shown in the picture. Remove the SIM trays by pressing the yellow button with a screw driver. © 2019 Garderos GmbH 11/21...

  • Page 12: Powering Up The Router

    Otherwise the router might be damaged! Before starting the R-3700 an antenna must be connected to the M1 connector for models containing a WWAN modem, otherwise the router may be damaged. © 2019 Garderos GmbH 12/21...
  • Page 13 Is lit when at least 1 WLAN interface is active. 5.4 Login The Garderos R-3700 can be managed via a serial console. Connect your computer to the router’s CON/RS-485 port using an RJ-45 serial console cable. Use the following settings:...

  • Page 14: Technical Data

    1 * RS-232 (mgmt), 1* RS-485, 1* RS-232 (optional) Ingress protection IP42 IEC protection class Conformity CE, FCC, 61850-3 (criteria for EMI immunity), RoHS *) Max. temperature range. The temperature range may differ depending on the router variant. © 2019 Garderos GmbH 14/21...

  • Page 15: Wifi Radio Settings

    R-3700 for the antenna used with the router. By default the Garderos R-3700 router will set the radiated power lower than 100mW (20dBm) for both bands, meaning that it complies with all restrictions when being used together with an antenna without gain.
  • Page 16 Round up the value (20dBm) and select the safety distance from the table below. 2.4GHz 5.5GHz Output power Safety dist. Output power Safety dist. 18dBi 2.2cm 18dBi 2.2cm 20dBi 2.8cm 20dBi 2.8cm 22dBi 3.6cm 22dBi 3.6cm 24dBi 4.5cm 24dBi 4.5cm 26dBi 5.7cm 26dBi 5.7cm 28dBi 7.2cm 28dBi 7.2cm © 2019 Garderos GmbH 16/21...
  • Page 17  Antenna has a gain of 4dBi in all frequencies for 2G and 4G.  No extension cable. Output power = 24dBm -0.3dB + 4dBi = 26.7dBi Output power = 33.5dBm -0.3dB + 4dBi = 37.2dBi © 2019 Garderos GmbH 17/21...
  • Page 18 20.6cm 18.8cm 18.0cm 38dBi 47.2cm 37.9cm 35.4cm 33.4cm 25.9cm 23.6cm 22.6cm 40dBi 59.4cm 47.7cm 44.6cm 42.0cm 32.6cm 29.7cm 28.4cm 42dBi 74.8cm 60.0cm 56.1cm 52.9cm 41.0cm 37.4cm 35.8cm 44dBi 94.2cm 75.5cm 70.6cm 66.6cm 51.6cm 47.1cm 45.0cm © 2019 Garderos GmbH 18/21...
  • Page 19 6.0cm 9.5cm 7.5cm 28.2cm 22.4cm 21.0cm 21.0cm 21.0cm 7.6cm 11.9cm 9.5cm 35.4cm 28.2cm 26.6cm 26.6cm 26.6cm 9.6cm 15.0cm 11.9cm 44.6cm 35.4cm 33.4cm 33.4cm 33.4cm 12.0cm 18.8cm 15.0cm 56.1cm 44.6cm 42.0cm 42.0cm 42.0cm 15.1cm 23.7cm 18.8cm © 2019 Garderos GmbH 19/21...

  • Page 20: Warranty

    6.4 Warranty The conditions of warranty for the Garderos products are described in the Garderos General Terms and Conditions in the section entitled „Warranty“. 6.5 Declaration of conformity Garderos GmbH declares that the Garderos R-3700 product conforms to CE. The complete statement of conformity can be downloaded at: https://www.garderos.com/conformity...
  • Page 21 T: +49 (89) 189306 – 50 F: +49 (89) 189306 – 98 support@garderos.com Garderos GmbH Balanstr. 55 D-81541 München Germany T: +49 (89) 189306 – 0 F: +49 (89) 189306 – 98 info@garderos.com Novmber 2019 © 2019 Garderos GmbH 21/21...
