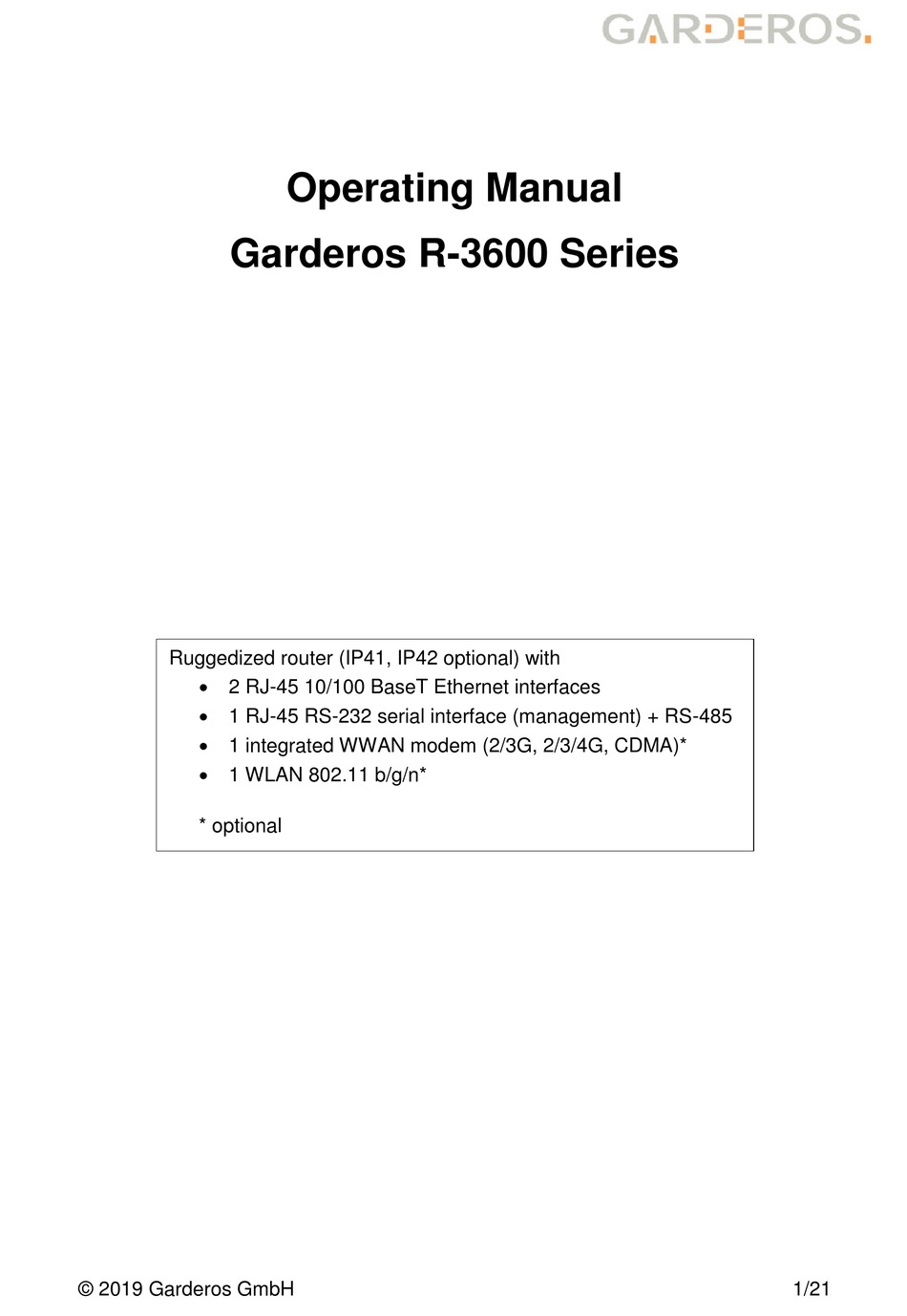

Operating Manual
Garderos R-3600 Series
Ruggedized router (IP41, IP42 optional) with
 2 RJ-45 10/100 BaseT Ethernet interfaces
 1 RJ-45 RS-232 serial interface (management) + RS-485
 1 integrated WWAN modem (2/3G, 2/3/4G, CDMA)*
 1 WLAN 802.11 b/g/n*
* optional
© 2019 Garderos GmbH
1/21

Advertisement

loading
Need help?

Need help?

Do you have a question about the R-3600 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Garderos R-3600 Series

Summary of Contents for Garderos R-3600 Series

  • Page 1 Operating Manual Garderos R-3600 Series Ruggedized router (IP41, IP42 optional) with  2 RJ-45 10/100 BaseT Ethernet interfaces  1 RJ-45 RS-232 serial interface (management) + RS-485  1 integrated WWAN modem (2/3G, 2/3/4G, CDMA)*  1 WLAN 802.11 b/g/n* * optional ©...

  • Page 2: Safety Instructions

    70 °C, so the surface can get very hot. Install the router inaccessible for unauthorized personnel. Before touching the router, remove the power supply and wait for 10 minutes for the router to cool down or wear protective gloves. © 2019 Garderos GmbH 2/21...

  • Page 3: General Information

    2 General information 2.1 Router type The Garderos R-3600 routers are available as several different models with optional WLAN, 2G/3G/4G and CDMA interfaces. This document is a general description for the following router types: Type Eth. RS-232 RS-485 WLAN 2/3G...

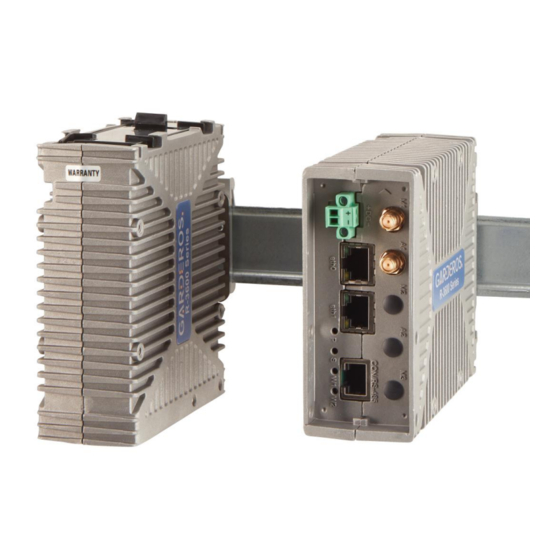

  • Page 4 3 Hardware 3.1 Installation The Garderos R-3600 has 2 options for mounting. 3.1.1 Mounting on integrated DIN rail mounting clip Mount the router on a DIN rail as shown in the following drawing. Insert the upper metal hook to the DIN rail first, and then push the plastic holder into the bottom part of the DIN rail until it clicks in (see picture).
  • Page 5 IP 42. Insert the upper part of the clip to the DIN rail, then push the router down and insert the DIN rail clip to the rail on the lower part. For unmounting push the router down and remove the lower part of the clip from the DIN rail first. © 2019 Garderos GmbH 5/21...
  • Page 6 3.1.4 Grounding For grounding attach a 1.5mm² ground cable with a 0.8 x 2.8mm flat connector to the spade connector on the R-3600 router as shown in the following picture. © 2019 Garderos GmbH 6/21...
  • Page 7 3.2 Status LEDs The Garderos R-3600 has 8 LEDs on the front, showing its operational status. All LEDs, except from the Ethernet LEDs that are integrated into the RJ-45 Ethernet sockets, are clearly marked on the casing: Shows the status of the router’s power supply and is lit P (green) during the entire period of operation.
  • Page 8 3.3 Connectors Depending on the type, the Garderos R-3600 routers have different connectors on the front. All possible connectors are described below; the image shows the front panel of an R-3628 as an example. The R-3600 routers have a SIM card slot on the back: Power connection.
  • Page 9 “6.2 WiFi radio settings” and “6.3 WWAN radio settings” to calculate the maximum allowed TX- power for WiFi and safety distances for your antennas. For routers delivered by Garderos with antennas, Garderos can help you calculate the acceptable values. © 2019 Garderos GmbH...
  • Page 10 4 Software The Garderos R-3600 routers run the Garderos Router Software (GRS) operating system. GRS provides the following functions:  Router operating system  Automatic management of the configuration:  Local configuration (startup configuration) to configure the router locally. ...
  • Page 11 Remove the DIN rail mounting kit by pushing the safety lock to the left and pushing the DIN rail mounting kit up at the same time, as shown in the picture. Remove the SIM tray by pressing the yellow button in the “SIM 1” slot with a screw driver. © 2019 Garderos GmbH 11/21...
  • Page 12 Otherwise the router might be damaged! Before starting the R-3600 an antenna must be connected to the M1 connector for models containing a WWAN modem, otherwise the router may be damaged. © 2019 Garderos GmbH 12/21...
  • Page 13 Is lit when the WWAN interface is active. Is lit when the integrated WLAN interface is active. 5.4 Login The Garderos R-3600 can be managed via a serial console. Connect your computer to the router’s CON/RS-485 port using an RJ-45 serial console cable. Use the following settings:...

  • Page 14: Technical Data

    802.11 b/g/n Serial ports 1 * RS-232 (mgmt), 1* RS-485 Ingress protection IP42 IEC protection class Conformity CE, EN 61000-6-2 (2005), RoHS *) Max. temperature range. The temperature range may differ depending on the router variant. © 2019 Garderos GmbH 14/21...
  • Page 15 The Garderos R-3600 uses the unregulated band in the 2.4GHz range. Depending on the country the maximum radiated power is limited by law to e.g. 100mW (20dBm) in Germany and 400mW (26dBm) in the US. By default the Garderos routers are configured to comply with the German regulatory domain (DE).
  • Page 16 Round up the value (20dBm) and select the safety distance from the table below. 2.4GHz 5.5GHz Output power Safety dist. Output power Safety dist. 18dBi 2.2cm 18dBi 2.2cm 20dBi 2.8cm 20dBi 2.8cm 22dBi 3.6cm 22dBi 3.6cm 24dBi 4.5cm 24dBi 4.5cm 26dBi 5.7cm 26dBi 5.7cm 28dBi 7.2cm 28dBi 7.2cm © 2019 Garderos GmbH 16/21...
  • Page 17  Antenna has a gain of 4dBi in all frequencies for 2G and 4G.  No extension cable. Output power = 24dBm -0.3dB + 4dBi = 26.7dBi Output power = 33.5dBm -0.3dB + 4dBi = 37.2dBi © 2019 Garderos GmbH 17/21...
  • Page 18 20.6cm 18.8cm 18.0cm 38dBi 47.2cm 37.9cm 35.4cm 33.4cm 25.9cm 23.6cm 22.6cm 40dBi 59.4cm 47.7cm 44.6cm 42.0cm 32.6cm 29.7cm 28.4cm 42dBi 74.8cm 60.0cm 56.1cm 52.9cm 41.0cm 37.4cm 35.8cm 44dBi 94.2cm 75.5cm 70.6cm 66.6cm 51.6cm 47.1cm 45.0cm © 2019 Garderos GmbH 18/21...
  • Page 19 6.0cm 9.5cm 7.5cm 28.2cm 22.4cm 21.0cm 21.0cm 21.0cm 7.6cm 11.9cm 9.5cm 35.4cm 28.2cm 26.6cm 26.6cm 26.6cm 9.6cm 15.0cm 11.9cm 44.6cm 35.4cm 33.4cm 33.4cm 33.4cm 12.0cm 18.8cm 15.0cm 56.1cm 44.6cm 42.0cm 42.0cm 42.0cm 15.1cm 23.7cm 18.8cm © 2019 Garderos GmbH 19/21...
  • Page 20 6.4 Warranty The conditions of warranty for the Garderos products are described in the Garderos General Terms and Conditions in the section entitled „Warranty“. 6.5 Declaration of conformity Garderos GmbH declares that the Garderos R-3600 product conforms to CE. The complete statement of conformity can be downloaded at: https://www.garderos.com/conformity...
  • Page 21 T: +49 (89) 189306 – 50 F: +49 (89) 189306 – 98 support@garderos.com Garderos GmbH Balanstr. 55 D-81541 München Germany T: +49 (89) 189306 – 0 F: +49 (89) 189306 – 98 info@garderos.com November 2019 © 2019 Garderos GmbH 21/21...
