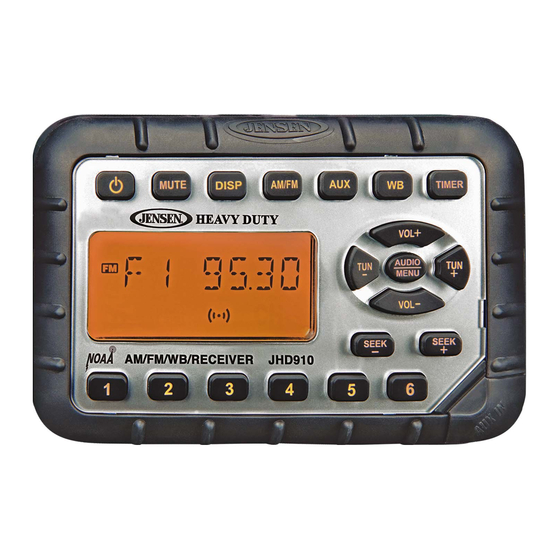

ASA Electronics 25911 Owner's Manual

Hide thumbs Also See for 25911:

Owner's manual (28 pages)

Table Of Contents

Quick Links

Download this manual

JHD910

Owner's Manual

JENSEN

MUTE

DISP

AM/FM

AUX

TIMER

HEAVY DUTY

JENSEN

VOL+

AUDIO

TUN

VOL-

SEEK

AM/FM/WB RECEIVER

JHD910

Table of Contents

Need help?

Do you have a question about the 25911 and is the answer not in the manual?

Questions and answers

Summary of Contents for ASA Electronics 25911

Page 1 JHD910 Owner’s Manual JENSEN MUTE DISP AM/FM TIMER HEAVY DUTY JENSEN VOL+ AUDIO MENU VOL- SEEK SEEK AM/FM/WB RECEIVER JHD910...
Page 2: Table Of Contents
JHD910 CONTENTS Introduction ........................ 1 Installation ........................3 Wiring .......................... 5 Basic Operation......................6 Tuner Operation ......................8 Weather Band Operation ..................10 Troubleshooting....................... 11 Specifications......................12...
Page 3: Introduction
JHD910 INTRODUCTION Thank You! Thank you for choosing a Jensen product. We hope you will find the instructions in this owner’s manual clear and easy to follow. If you take a few minutes to look through it, you’ll learn how to use all the features of your new Jensen receiver for maximum enjoyment.
Page 4 JHD910 Package Contents • JHD910 Radio • Radio Mounting Bracket • Headphone Mounting Bracket • Five (5) 10-16 x 3/4” Stainless Steel PPH Screws • Five (5) 10-32 x 5/8” Stainless Steel PPH Screws • Five (5) 10-32 Stainless Steel Hex Nuts •...
Page 5: Installation
JHD910 INSTALLATION Mounting the Bracket Two options are provided for mounting the bracket (self-tapping screws or machine screws with nuts) to ensure a mounting option ideal for your mounting location. Avoid obstructing airflow to the rear cooling fins on the radio. Note: Mounting holes should be drilled to 7/32”.
Page 6 JHD910 INSTALLATION (CONTINUED) Mounting the Headphone Bracket Three options are provided for mounting the bracket (self-tapping screws, machine screws with nuts or double-sided tape) to ensure a mounting option ideal for your mounting location. Alternately, the headphone can be mounted directly to the instrument panel if access to the rear of the instrument panel is available.
Page 7: Wiring
JHD910 WIRING The wiring diagram depicts the wiring connections required for proper operation of the unit. Antenna Connector (Black Wire) 3.5mm STEREO JACK 3.5mm HEADPHONE OUTPUT 9-Pin Connector (Male) Black Wire WASHER RUBBER CAP VEHICLE PANEL OR HEADPHONE MOUNTING BRACKET Note: Do not connect the red wire to a constant power connection.
Page 8: Basic Operation
JHD910 BASIC OPERATION 1. Power Press the power button (1) to turn the unit on or off. This button is also used to access the version number of the software. To briefly display the software version on the LCD, press and hold the power button for more than five seconds.
Page 9 JHD910 5. Auxiliary Input Function To connect a portable audio device (MP3 player, iPOD, etc.) to the JHD910, connect the headphone or line level output of the device to the 1/8" auxiliary input jack of the JHD910 (5b) using the audio patch cord (included). Pres AUX (5a) to select auxiliary input mode. 6.
Page 10: Tuner Operation
JHD910 TUNER OPERATION 10. Select a Band Press AM/FM (10) momentarily to directly access tuner mode from any other function mode. When the unit is already in tuner mode, briefly press AM/FM to change between two AM bands (AM1 and AM2) and three FM bands (FM1, FM2 and FM3). NOTE: If the unit is programmed for European operation, the sequence will be MW1, MW2, FM1, FM2 and FM3.
Page 11 JHD910 13. Preset Stations Six numbered preset buttons (13) store and recall stations for each AM and FM band. To store a station, select a band (if needed), then select a station. Hold a preset button for three seconds. The current station will be stored, and the corresponding preset number will appear in the display. To recall a station, select a band (if needed).
Page 12: Weather Band Operation
JHD910 WEATHER BAND OPERATION 14. Accessing the Weather Band Press WB (14) to directly access the weather band mode from any other function mode. What is the NOAA Weather Radio? NOAA is a nationwide system that broadcasts local weather emergency information 24 hours a day. The U.S.
Page 13: Troubleshooting
JHD910 TROUBLESHOOTING Problem Cause Corrective Action No power Vehicle ignition switch is not If the power supply is connected to the vehicle accessory circuits but the engine is not moving, switch the ignition key to “ACC”. The 3A fuse is blown Replace the 3A fuse.
Page 14: Specifications
JHD910 SPECIFICATIONS General Power Supply Requirements......DC 12 Volts, Negative Ground Chassis Dimensions .
Page 15 JHD910...
Page 16 ASA Electronics Corporation www.asaelectronics.com www.jensenheavyduty.com ©2017 ASA Electronics Corporation v. 110517...
