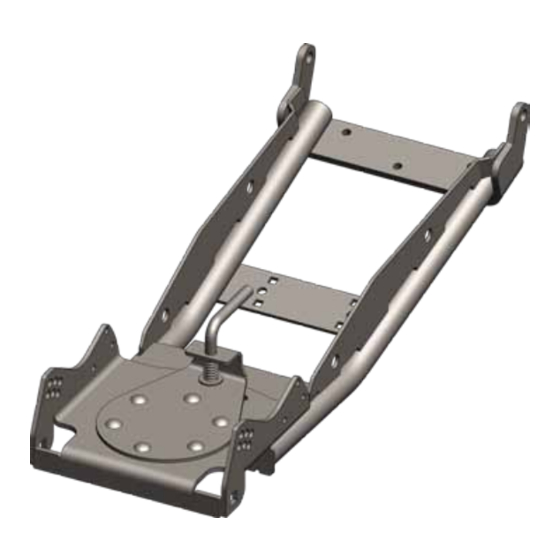

  • Page 1 Instruction Manual UTV Plow Tube System Rev-H 10/13/2021...
  • Page 2 Manual Conventions CAUTION This manual uses the following symbols to help differentiate between different kinds of information. CAUTION indicates a potentially The safety symbol is used with a key word to alert hazardous situation which, if not avoided, you to potential hazards in operating and owning may result in minor or moderate injury.

  • Page 3: Safety Rules

    Safety Rules WARNING CAUTION • Read this manual thoroughly before • Take care when installing PLOW SPRINGS operating your plow. Failure to follow as they will be under tension. instructions could result in serious injury • Use care when lifting components into or death.

  • Page 4: Installation Instructions

    Installation Instructions 1. To secure the blade to the tube system, place the pitch bushing (Item 7.4.1) into BLADE GUSSET the blade gusset hole. Secure the tube HOLE system and the blade together with the Items 7.3.4 carriage bolt, 7.3.3 washer and 7.3.2 lock nut, as shown in Figure 1.
  • Page 5 7.4.3 To attach the tube system to any KFI mounts, position the tube system with blade installed under your UTV. Raise tube attach points to the mount and line 7.4.2...

  • Page 6: Parts List

    This kit will also require a KFI Plow Blade kit, a vehicle specific Plow Mount and Winch for lifting the system. 7.4.3 7.3.7 7.3.1 7.3.5 7.3.3 7.4.2 7.3.2 7.3.4 7.4.1 7.3.10 7.3.9 7.3.8 7.3.6 Part # - 105635 ITEM PART# DESCRIPTION QTY.

  • Page 7: Year Limited Warranty

    2 Year Limited Warranty Western Power Sports Inc. (WPS) warrants to the original purchaser that the product is free from defects in materials and workmanship for a period of two (2) years from the original date of purchase. We will repair or replace, at our discretion, parts found to be defective due to materials or workmanship.
  • Page 8 Western Power Sports Inc. 601 E. Gowen Rd Boise, ID 83716, U.S.A. 1-800-999-3388 ©2021 Copyright Kappers Fabricating, Inc. All rights reserved...
