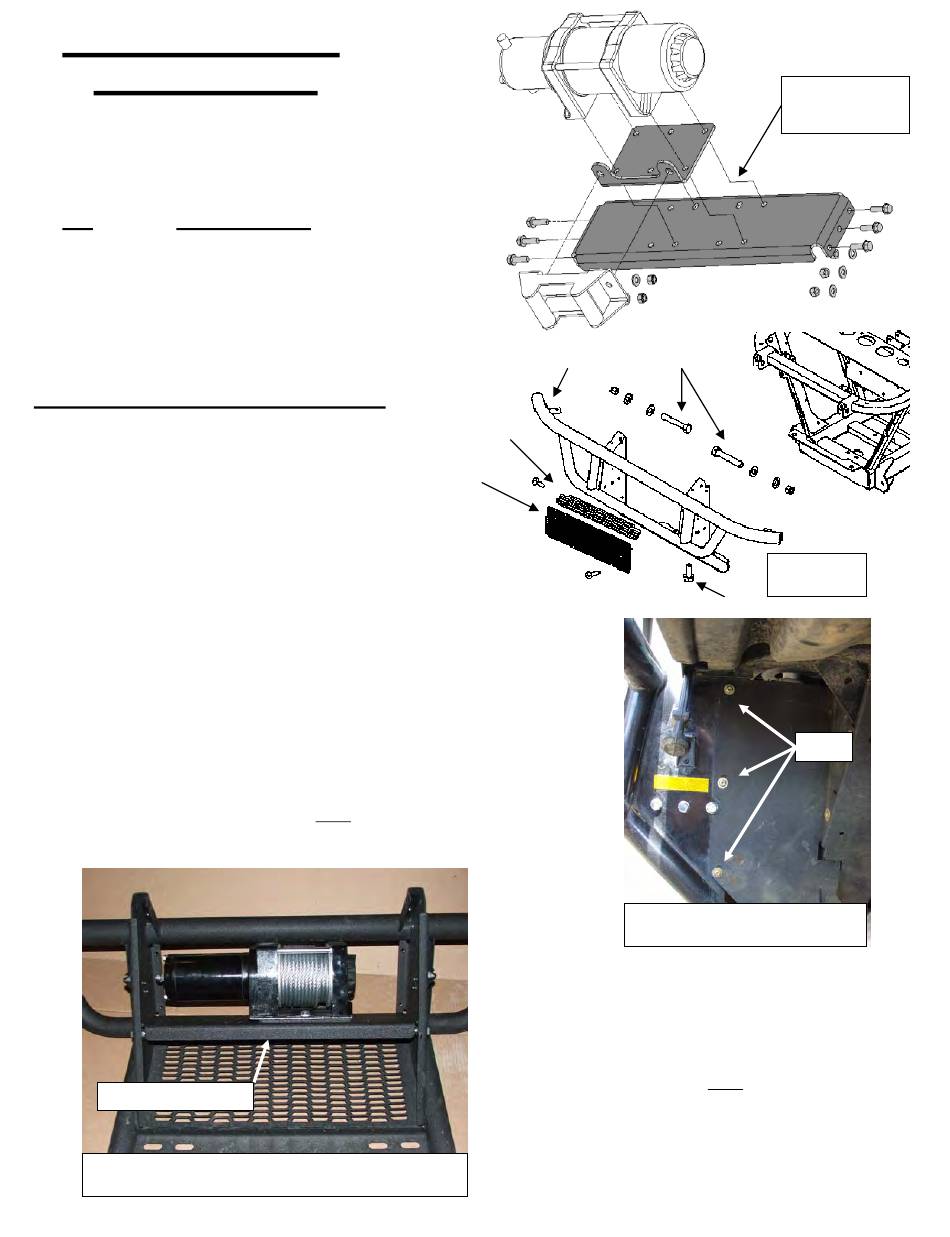

KFI 100560 Quick Start Manual

Polaris RANGER
Winch Mount
Winch Mount
Kit Components:
Qty Part Description
1................ Winch Mount mounting channel
1................ Winch Mount fairlead bracket
6................ 5/16 x 1" Hex Head Flange Bolts
6................ 5/16" SAE Flat Washers
6................ 5/16" Nylock Nuts
1................ Hardware Kit (Mini-Rocker Switch)
INSTALLATION INSTRUCTIONS:
1. Using a torx bit, remove both the small (A)
and large (B) grills that are attached to the
bumper.
2. Using a torx bit, remove the six torx
screws (G) that hold the side plastic
radiator shrouds to the bumper.
3. Using a flat screwdriver, remove the two
plastic fasteners from the bumper tabs (E).
4. Remove the three lower bumper bolts (D).
5. Remove the two top bumper bolts (C).
6. Install the winch mounting plate into
location as shown in "Figure 3" using the
supplied 5/16" hardware.
the front of the bumper the slots will need to be
towards the back and flanges down.
Mounting Bracket
"Figure 3" Install Winch Mounting Plate
PART # 100560
(B)
Note: If looking at
1
(E) (C)
(A)
"Figure 2" Remove Side Screws
Assemble your fairlead to the fairlead
7.
bracket and then assemble your winch and
the fairlead bracket assembly into location
as shown in "Figure 4" to the Mounting
plate using the hardware supplied with
your winch.
4.0 you will need to use the fairlead bracket that
comes with that winch kit and discard the one
included.
SLOTS TO
THE BACK
"Figure 1"
(D)
(G)
Note: If you are installing a Warn
