Seafloor HyDrone TARANIS X7 Manual

AutoNav
Up: Manual Mode
Down: Auto Mode
AutoNav
Up: Arm
Down: Disarm
Alarm Volume
Clockwise: Up
Counterclockwise: Down
Power
ON/OFF
Start Up
Center all switches and joysticks.
1
Hold Power button until all four loading
2
process dots appear on the screen.
If "Switch Warning" appears, ensure all
3
switches are turned off or centered, auto
switch is set to Manual and arming is set
to Disarm.
Seafloor Systems, Inc.
TM

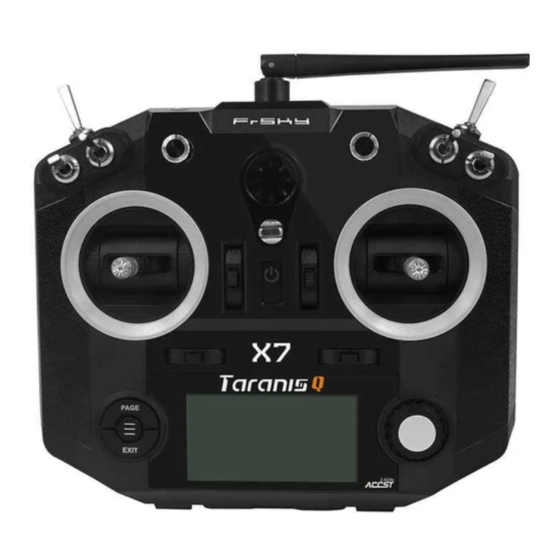

TARANIS X7 Controller
HyDrone
Loiter
Up: On
Down/Center: Off
info@seafloorsystems.com
TM
Arm HyDrone
To arm the HyDrone's AutoNav, move
1
arming switch to arming position then
hold arming toggle switch up for 3
seconds. You will hear the HyDrone
AutoNav chime when arming is complete.
To Disarm, switch the Arm switch to
2
Disarm and hold arming safety switch
for 3 seconds. The AutoNav will chime
when disarmed.
Arming Safety
Switch
Forward
Left
Right
Reverse
1 (530) 677 - 1019
