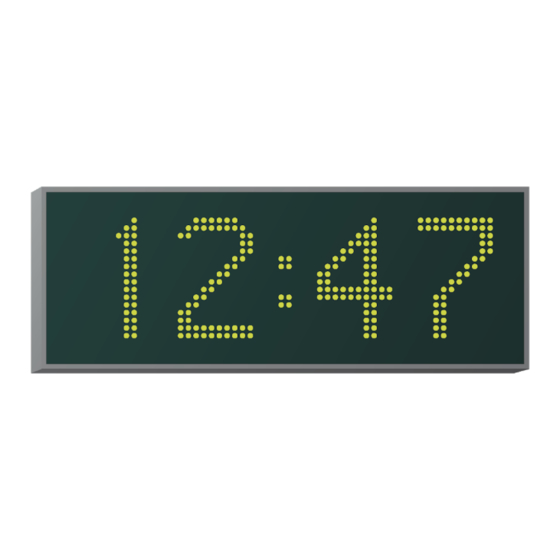

4000x Series Digital Clock
Operating and Installation Instruction
Issue 2.3
Contents
Page 3
Page 4
Page 5
Page 6
Page 7
Page 9
Page 10
Page 14
Page 14
Page 15
Page 18
Page 18
Page 18
Page 19
Advertisement
Table of Contents
Related Manuals for WHARTON 4000 Series
Summary of Contents for WHARTON 4000 Series
-

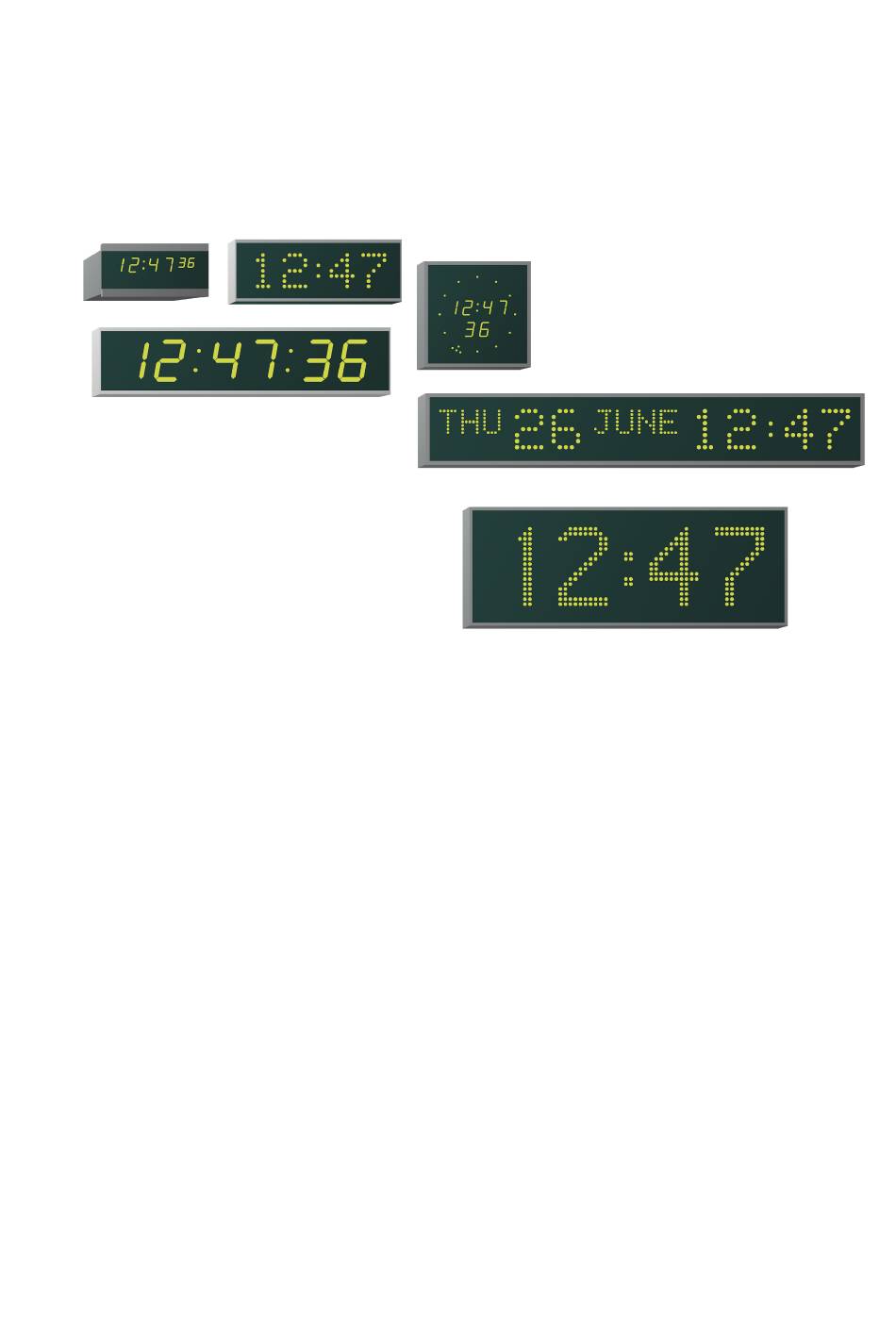

Page 1: Table Of Contents
4000x Series Digital Clock Operating and Installation Instruction Issue 2.3 Contents 1 Introduction Page 3 2 Installation and Operation Page 4 3 Function Programming Page 5 4 Time and Date Setting Page 6 5 Location Setup Page 7 6 Network Setup Page 9 7 Synchronisation Setup Page 10... - Page 2 © 2012 - 2020 Wharton Electronics Ltd, All rights reserved. Trademarks Wharton Electronics and 4000x, 4000N, 4000NE and 4000NEP are trademarks of Wharton Electronics Ltd. MOBALine is a registered trademark of Moser Baer AG. All other trademarks and registered trademarks are property of their respective owners.
-
Page 3: Introduction
4000x Series Digital Clock Operating and Installation Instructions 1 - Introduction The 4000x series of digital clocks provide a precise and elegant display of time using red, green, yellow/amber, blue or white LED display characters with an unrivalled flexibility of operation in the most demanding timekeeping and stopwatch applications. -
Page 4: Installation And Operation
4000x Series Digital Clock Operating and Installation Instructions 2 - Installation and Operation Power Supply Connection The 4000x series digital clocks are fitted with either universal mains power supplies (enabling operation at voltages from 100 to 240V AC 50/60Hz without adjustment), low voltage DC power supplies or Power-over-Ethernet (PoE) power supplies, as specified at time of order. -
Page 5: Function Programming
4000x Series Digital Clock Operating and Installation Instructions 3 - Function Programming The 4000x digital clocks have a user friendly programming interface based around a series of function menus, accessed using the supplied Infrared remote control or four switches located on the right hand rear of the display. -
Page 6: Time And Date Setting
4000x Series Digital Clock Operating and Installation Instructions 4 - Time and Date Setting The 4000x series digital clocks can be configured to automatically adjust for daylight savings changes, however if the unit is run in Standalone mode of operation (i.e. unsynchronised), you may occasionally need to manually adjust the time. -
Page 7: Location Setup
4000x Series Digital Clock Operating and Installation Instructions 5 - Location Setup The 4000x series digital clocks provide advanced time zone functionality where the display may be user programmed to automatically indicate the time in one of 83 preset locations. Incorporating ‘Set Once’ technology, the 4000x series digital clock displays will automatically calculate future seasonal time changes for all preset time location code settings. - Page 8 4000x Series Digital Clock Operating and Installation Instructions UTC+12 (MIKE) MHT Marshall Is. - Majuro, Kwajalein NZST/NZDT New Zealand - Wellington, Auckland TKT Tokelau - Fakaofo LINT Line Is.- Kiritimati UTC-13 UTC-12 (YANKEE) UTC-11 (X-RAY) Midway Is. UTC-10 (WHISKEY) HAST Hawaii - Honolulu UTC-9 (VICTOR) AKST/AKDT US - Alaska, Anchorage UTC-8 (UNIFORM) PST US - Pitcairn Is.
-
Page 9: Network Setup
4000x Series Digital Clock Operating and Installation Instructions 6 - Network Setup The 4000N and 4000NE series digital clocks are fitted with a 10/100Base-T Ethernet network interface and designed to synchronise to a remote NTP (Network Time Protocol) time server across a TCP/IP computer network. -
Page 10: Synchronisation Setup
4000x Series Digital Clock Operating and Installation Instructions 7 - Synchronisation Setup The 4000x series digital clocks have a standalone accuracy of better than 0.1 sec/day @ 20-25ºC. However, for applications where an increased level of accuracy is required, units may be synchronised to a range of different synchronisation methods. - Page 11 4000x Series Digital Clock Operating and Installation Instructions NTP Client 4000N & 4000NE products are primarily intended to be synchronised via NTP/SNTP from a remote time server located on the customers TCP/IP Ethernet network. Up to 4 remote NTP time servers can be specified either fully automatically using DHCP option 42 configured on your company's DHCP server or manually by the user.
- Page 12 4000x Series Digital Clock Operating and Installation Instructions 48x0 and w482 Time Code Synchronisation Clock configuration The 4000NE and 4000NEP series digital clocks Press ‘Menu’ or ‘Up’ button to access clock settings can be configured to synchronise to 48x0 or menu.
- Page 13 4000x Series Digital Clock Operating and Installation Instructions 24V Alternate Polarity Impulse Clock configuration Synchronisation Press ‘Menu’ or ‘Up’ button to access clock settings The 4000NEP series digital clocks can be menu. configured to synchronise to 24V alternate Press ‘+’ button until ‘Fu Sy’ is displayed polarity impulses from a suitable master clock (supplied separately) as follows.
-
Page 14: Display Setup (4200X, 4010X And 4900X Series)
4000x Series Digital Clock Operating and Installation Instructions 8a - Display Setup - 4200x, 4010x and 4900x series digital clocks 4010 & 4200 digital clocks can be configured to display time of day, alternating time & date and continuous date in a number of different display formats as detailed in the table below. Fu Di Display Setup Function... -
Page 15: Stopwatch Setup
4000x Series Digital Clock Operating and Installation Instructions Please refer to the diagram and table below for further information. Calendar Language Setup for dot-matrix calendar displays Code Language Code Language Code Language Catallonian English Russian Czech Hungarian Swedish German Croatian Finnish Danish Italian... - Page 16 4000x Series Digital Clock Operating and Installation Instructions Fu SS Stopwatch settings (continued) Function Display Type Description 'Up' button hh:mm hh:mm:ss function SA 0 2 SA 0 2 Count Down from pre-programmed start time & stop at zero. Select hold mode SA ...
- Page 17 4000x Series Digital Clock Operating and Installation Instructions Stopwatch input from voltage free switch contacts In addition to the stopwatch configuration and control being made via the supplied RC100 infrared remote control, the Start/Stop and Hold/Reset stopwatch functions on the 4000E and 4000NE series digital clocks can be controlled by either the connection of a 496E stopwatch controller or by connection of a pair of external, voltage free, momentary switch contacts.
-
Page 18: External Interface Setup
4000x Series Digital Clock Operating and Installation Instructions 10 - External interface setup The external interface of the 4000x series clocks can be used for connection of a 406 temperature (supplied separately) or to provide a Local Master synchronisation output. Fu Et External Interface Setup Function... -
Page 19: Mounting Options
4000x Series Digital Clock Operating and Installation Instructions 13 - Mounting Options Wall Mounting (.S) Flush Fitting Panel Case (.FP) All dimensions in mm unless otherwise specified. Issue 2.3... - Page 20 4000x Series Digital Clock Operating and Installation Instructions Flush Fitting Case with Mounting Box (.FB) Single Sided Ceiling Suspended Case (.SS) and Double Sided Ceiling Suspended Case (.DS) All dimensions in mm unless otherwise specified. Issue 2.3...
