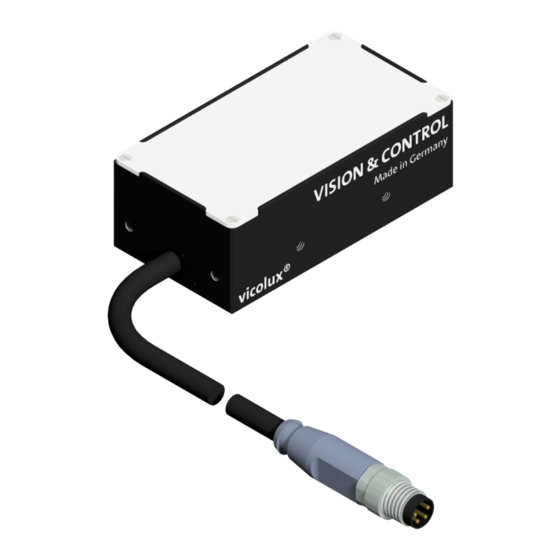

Led area light, diffuse illumination, luminous colour: red - 633 nm

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

creating machine vision

Instructions for Use

DL30x60-R633/UDC/-a

LED area light, diffuse illumination,

Luminous colour: Red - 633 nm

999.995.521.10-en-1.2

VISION & CONTROL

Table of Contents

Need help?

Do you have a question about the DL30x60-R633/UDC/-a and is the answer not in the manual?

Questions and answers

Summary of Contents for Vision & Control DL30x60-R633/UDC/-a

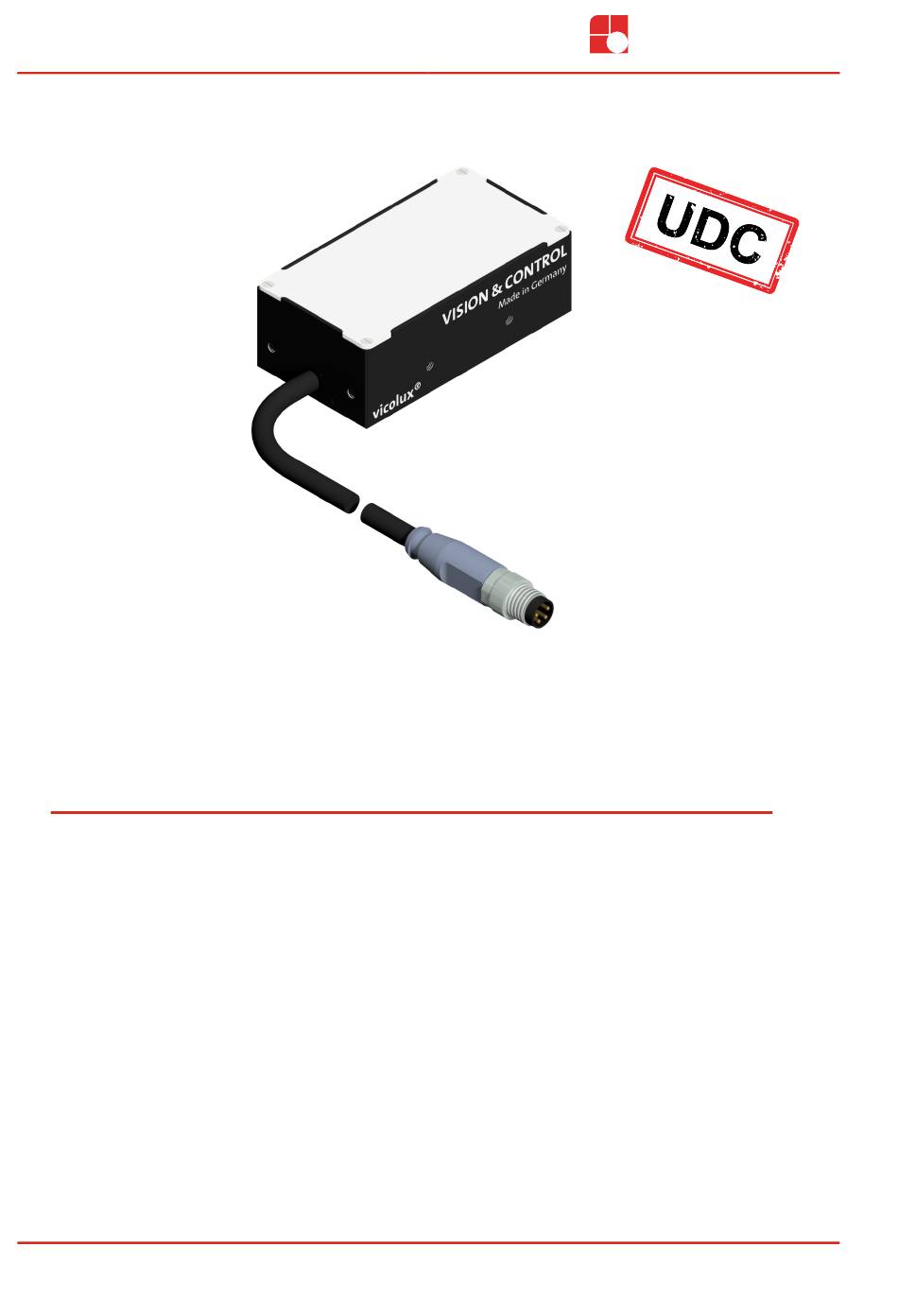

Page 1 VISION & CONTROL Instructions for Use Instructions for Use DL30x60-R633/UDC/-a DL30x60-R633/UDC/-a LED area light, diffuse illumination, LED area light, diffuse illumination, Luminous colour: Red - 633 nm Luminous colour: Red - 633 nm 999.995.521.10-en-1.2 © Vision & Control GmbH 2019...
Page 2 Impress Publisher / Manufacturer Vision & Control GmbH Mittelbergstraße 16 98527 Suhl, Germany Telephone: +49 (0) 3681 7974-0 Telefax: +49 (0) 3681 7974-33 www.vision-control.com Name of the document 999.995.521.10-en-1.2 Date of first issue 2018-12-21 Date modified 2019-11-05 Copyright © Vision & Control GmbH 2019 Copyright It is forbidden to pass this document on to third parties, reproduce and communicate its contents in as far as this has not been expressly authorized.
Page 3 Validity These instructions for use are valid for the following device: Device Order no. DL30x60-R633/UDC/-a 1-21-168 Product Identification Designation Description LED area light, diffuse illumination 30x60 Dimensions light-emitting surface: 60 mm x 30 mm R633 Wavelength: Red - 633 nm...
Page 4: Table Of Contents
DL30x60-R633/UDC/-a Table of Contents TABLE OF CONTENTS 1 Information about the Instructions of Use..........7 1.1 Intended Use....................7 1.2 Improper Use....................8 1.3 Qualified Personnel..................8 1.4 Warranty and Liability...................9 2 Safety......................10 2.1 Presentation of Safety Instructions.............10 2.2 Safe Handling of the Device..............11 3 Scope of Delivery and Accessories............
Page 5 DL30x60-R633/UDC/-a Table of Contents 8.1 Maintenance....................31 8.2 Service......................32 9 Disposal......................33 10 EU Declaration of Conformity..............34 © Vision & Control GmbH 2019 999.995.521.10-en-1.2...
Page 7: Information About The Instructions Of Use
DL30x60-R633/UDC/-a Information about the Instructions of Use 1 INFORMATION ABOUT THE INSTRUCTIONS OF This document contains technical information, important instructions for correct installation, commissioning and use, as well as product information which were up-to-date at the time of going to press.
Page 8: Improper Use
DL30x60-R633/UDC/-a Information about the Instructions of Use 1.2 Improper Use All unintended use and all device-related activities not described in these instructions of use is to be deemed as unauthorised misuse outside the legal limits of indemnity of the manufacturer.
Page 9: Warranty And Liability
DL30x60-R633/UDC/-a Information about the Instructions of Use 1.4 Warranty and Liability The contents of this document have been checked carefully and correspond to current legislation and best practise at the time of going to press. However, the manufacturer shall not be liable for any damage arising from the use of this edition of the manual, and rejects any warranty derived therefrom.
Page 10: Safety
DL30x60-R633/UDC/-a Safety 2 SAFETY 2.1 Presentation of Safety Instructions Each safety instruction is introduced by a key word and colour highlighted. The key word indicates the degree of danger. The danger and its cause are described, and then the measures to prevent conceivable consequences of the danger.
Page 11: Safe Handling Of The Device
DL30x60-R633/UDC/-a Safety 2.2 Safe Handling of the Device Read the following applicable safety instructions carefully and completely. Follow the instructions for your own safety, the safety of other people, and to avoid damage to the device and the connected technical equipment. Hazards going beyond the general safety instructions are referred to separately at the relevant points in this manual.
Page 12: Scope Of Delivery And Accessories
Scope of Delivery and Accessories 3 SCOPE OF DELIVERY AND ACCESSORIES 3.1 Scope of Delivery Designation Quantity Device DL30x60-R633/UDC/-a Instructions for Use DL30x60-R633/UDC/-a 3.2 Accessories Connection cable M8, 4-pin, open cable end Designation Description Order no. Cable with M8 socket,...
Page 13 DL30x60-R633/UDC/-a Scope of Delivery and Accessories Connection cable lighting (M8, 4-pin) to DLC Designation Description Order no. Adapter cable M8, 4-pin, Adapter cable with 4-pin M8 1-30-208 0.15 m socket and 4-pin PTSM plug, 4 x 0,5 mm², PUR. Adapter cable M8, 4-pin,...
Page 14: Device Description
DL30x60-R633/UDC/-a Device Description 4 DEVICE DESCRIPTION 4.1 Device Views Image 1: Device view Light-emitting surface Casing Connection cable with 4-pin M8 connector 2 x M3 mounting hole, depth 6 mm (on each side) 999.995.521.10-en-1.2 © Vision & Control GmbH 2019...
Page 15: Notices On The Device
DL30x60-R633/UDC/-a Device Description 4.2 Notices on the device Following instructions are provided on the device: Type plate Vision & Control 98527 Suhl, Germany Type: XXXXXXXXXXX No.: XXXXXXXX Image 2: Type plate Device designation Manufacturer information Serial number © Vision & Control GmbH 2019...
Page 16: Technical Data
DL30x60-R633/UDC/-a Technical Data 5 TECHNICAL DATA 5.1 General Parameters Parameter Characteristic Housing material Aluminium, black anodised Optical material PMMA Housing dimensions 65 mm x 35 mm x 23 mm (without connector) Dimensions light-emitting surface 60 mm x 30 mm Weight...
Page 17 DL30x60-R633/UDC/-a Technical Data Connecting cable Parameter Characteristic Length 150 mm Cable diameter 5.0 mm Core cross-section 4 x 0.5 mm² Material cable coating Drag chain suitable Bending radius cable fixed at least 5 x cable diameter Bending radius cable moved...
Page 18: Electrical Parameters
DL30x60-R633/UDC/-a Technical Data 5.2 Electrical Parameters NOTICE Verify that temperature, current and pulse time are kept inside specified limits! Please refer to the diagram: "Pulse load ". There is no automatic limitation of the electrical parameters. The temperature of the device is not monitored automatically.
Page 19 DL30x60-R633/UDC/-a Technical Data Pulse load 0.05 0.02 1.0 E-1 1.0 E+0 1.0 E+1 1.0 E+2 Duty Cycle Power-on time Power-off time Image 3: Pulse load ADVICE To take advantages of the vicolux smart-light technology, enter the following Light-Code in the user interface of your smart-light-controller (available from firmware-version 1.3 or higher):...
Page 20: Photometric Parameters
DL30x60-R633/UDC/-a Technical Data 5.3 Photometric Parameters Parameter Peak wavelength λ 645 nm peak Dominant Wavelength λ 627 nm 633 nm 639 nm Spectral bandwidth Δλ 16 nm Continuous operation Radiance 80 W/(m²sr) Flash mode / Pulse mode Radiance 205 W/(m²sr) The wavelengths stated are maintained as from an LED current of 0.04 A.
Page 21: Conditions For Operation, Storage And Transport
DL30x60-R633/UDC/-a Technical Data 5.4 Conditions for Operation, Storage and Transport Store and transport the device in shock-proof box, if possible in the original packaging. For accessories, connected devices and components observe the specific information in the associated instructions for use.
Page 22: Technical Drawings
DL30x60-R633/UDC/-a Technical Data 5.5 Technical Drawings M8 connector light-emitting surface Ø 5 2 x M3, depth 6 (on both sides) 7.75 2 x M3, depth 6 (on both sides) Image 5: Technical drawings (dimensions in mm) 999.995.521.10-en-1.2 © Vision & Control GmbH 2019...
Page 23: Commissioning
DL30x60-R633/UDC/-a Commissioning 6 COMMISSIONING 6.1 Unpacking 1. Lift the cardboard, together with the device, out of the carton. 2. Fold out the tucked in sides on the bottom of the cardboard. Loosening the film and forming an insertion pocket. 3. Remove the device out of the insertion pocket.
Page 24: Mounting The Device
DL30x60-R633/UDC/-a Commissioning 6.2 Mounting the Device NOTICE Installation and connection operations may only be performed in the off and de-energised state. To mount the device, tapped holes are located at the sides. 2 x M3 tapped hole (on both sides)
Page 25: Connecting
DL30x60-R633/UDC/-a Commissioning 6.3 Connecting NOTICE Installation and connection operations may only be performed in the off and de-energised state. NOTICE Cable damage • Comply with the specified minimum bending radius. • Cables must generally be mounted with a strain relief clamp.
Page 26: Pin Assignment
DL30x60-R633/UDC/-a Commissioning 6.3.2 Pin assignment Use the M8 connector to connect the device according to the pin assignment. Pin assignment Connection diagram +ILED Image 6: M8 male plug, 4-pin -ILED Core colour Signal Description BN (brown) +ILED LED anode, positive current input...
Page 27: Configuration
DL30x60-R633/UDC/-a Commissioning 6.4 Configuration Configuration with vicolux smart light lighting controllers When using a vicolux smart light lighting controller, the light is configured via the user interface DLC Server Control Center. Refer to the Instructions of Use DLC Server Control Center for more information.
Page 28: Operation
DL30x60-R633/UDC/-a Operation 7 OPERATION CAUTION Physiological effects by flashing lights • Working under flashing lights can cause effects such as headache, nausea, or epileptic seizures. • Avoid exposure to certain kinds of flashing lights or stroboscopes. • Wear protective goggles.
Page 29: Making Operational Readiness
DL30x60-R633/UDC/-a Operation 7.1 Making Operational Readiness NOTICE This device is intended for use with suitable controllers only. All technical data and permissible conditions must be complied with. The lighting is switched on by turning on the LED current I The lighting is switched off by turning off the LED current I 7.2 Operation with vicolux smart light lighting controller...
Page 30: Operating Modes
DL30x60-R633/UDC/-a Operation 7.3 Operating Modes Continuous operation For continuous operation, apply a constant current I to the lighting. Flash operation For pulse or flash operation, apply current pulses I to the lighting. Observe the specified parameters. see "Electrical Parameters", page 18 999.995.521.10-en-1.2...
Page 31: Maintenance And Service
DL30x60-R633/UDC/-a Maintenance and Service 8 MAINTENANCE AND SERVICE 8.1 Maintenance The device is maintenance-free. Depending on the operating environment, it may have to be cleaned. The housing can be cleaned according to the conditions applicable to the given protection class.
Page 32: Service
DL30x60-R633/UDC/-a Maintenance and Service 8.2 Service Technical Support Please contact our technical support if you have any technical questions concerning our products. We will be glad to be of service: Monday to Thursday 8:00 to 17:00, and Friday 8:00 to 15:00.
Page 33: Disposal
DL30x60-R633/UDC/-a Disposal 9 DISPOSAL The device and its accessories and packaging must be sent to environmentally compatible recycling. Do not throw electrical devices or tools into the household waste! According to European Directive 2012/19/EU on waste electrical and electronic equipment and its implementation in national law, unusable electric tools must be collected separately, and sent to environmentally compatible recycling.
Page 34: Eu Declaration Of Conformity
D-98527 Suhl, Germany Representative: Dr. Jürgen Geffe, Managing director We, Vision & Control GmbH Suhl, declare that the product described below – Designation: DL30x60-R633/UDC/-a – Order no.: 1-21-168 has been manufactured in accordance with the following standards and normative documents: •...
Page 36 Vision & Control GmbH Mittelbergstraße 16 98527 Suhl, Germany Telephone +49 (0) 3681 7974-0 Telefax: +49 (0) 3681 7974-33 Vision & Control GmbH...
