Summary of Contents for SafeCom T-Former Series

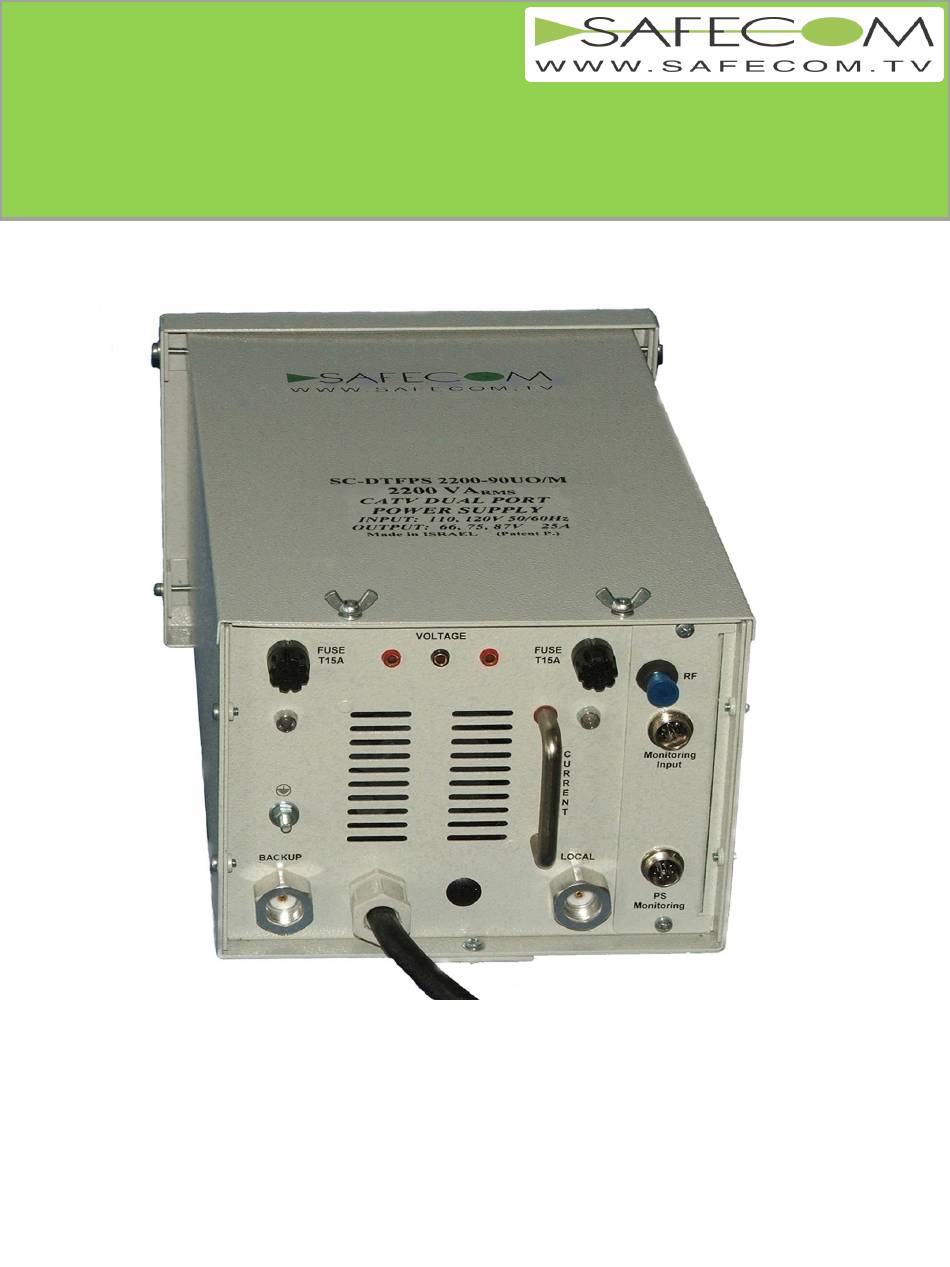

- Page 1 Power Safecom T-Former Series Stabilized pure sine voltage technology ( US Patent 8,415,822 Safecom TFPS Series Installation Manual FEB-2015 SAFECOM US Patent 8,415,822.
-
Page 2: Table Of Contents
Page 10: Bottom view – Connecting panel Page 11: Back View bracket open & Mounting template Page 12: back View bracket locked Page 13 : Safecom T-former P.S ordering information Page 14 : Connecting Power Cable to T-former AC OUTPUT Page 15 : Troubleshooting and Repair... - Page 3 T-Former - High efficiency Power supply • Lower Operating Costs - saves at least 5% energy compared to Ferro systems • Lower Capital Cost per unit - compared to traditional Ferro-resonant devices • Longer Life -Unique technology enables almost unlimited lifetime •...
-
Page 4: Safety Instructions
Safety Instructions Review the Installation Manual before proceeding. If there are any questions regarding safe installation or operation & performance please contact us at: support@safecom.tv. Prior to any handling, the Power Supply must be disconnected from the Mains. Only an experienced and authorized technician or electrician, who is... - Page 5 T-Former is designed to work at a wide range of temperatures humidity without maintenance, at full power capacity. 100% of Safecom's T-Formers undergo rigorous and repeated quality testing.
- Page 6 Model SC-DTFPS 1050-60EO/I Electrical Input Voltage Taps (Vac) 230±15% EUROPE Input Frequency (Hz) 50/60 Input Current (A) < 5.5A Input inrush current < 10 A In single pulse of 5ms Input Power Factor 0.95 at full load Output Voltage Taps (Vac) 60, 66, 72V -25A (87V -25A ) Total Output Current (A)
-
Page 7: Technology
• Safecom T-Former P.S offers the most efficient technology with almost 95% efficacy at a wide range of loads. It saves electricity and maintains the transformer and its electronic parts at cold temperature, making it the most reliable P.S with unlimited lifetime. -
Page 8: Inside View
Inside view : T-former outdoor 87V -15A... -
Page 9: Voltage Configuration
Voltage configuration Safecom TF-PS series offers input & output voltage-level flexibly. Technicians can easily configure the optimal input voltage level and recommend output voltage levels for supplying power to the network. 1) Ensure utility power is OFF when changing voltage configuration at input &... - Page 10 Bottom view RF port – IP monitoring Output Testing point Ground Connector Clamp Meter Output current test indicator LED Green /Red External Power output Power output monitoring Quick type RF Input port Quick type RF connector connector...
- Page 11 Back View Hanging Bracket Closed Cabinet Installed with special bracket for hanging or shelf-lain mounting Mounting slot Mounting slot Screw hole Hanging Bracket Locking Screw Installing TFPS – Outdoor The SC-TFPS outdoor series non-standby power supplies are designed to be mounted by separate brackets on a wall or on a pole.
-
Page 12: Back View Bracket Locked
Back view TF-PS Bracket locked... -
Page 13: Safecom T-Former P.s Ordering Information
Safecom T-former P.S ordering information TFPS “M” : Monitoring “I” : indoor housing “O” :outdoor housing “E” :Europe standard 230V +/- 15% 50Hz “U” :USA standard 120V +/- 15% 60Hz “60” : 60V CATV voltage standard. “90” : 87V CATV voltage standard. -
Page 14: Connecting Power Cable To T-Former Ac Output
Connecting Power Cable to T-former AC OUTPUT All Safecom power supplies have high current output quick type connectors without seizure screws. Simply plug in connector at the front panel. Connection is made quickly and reliably from outside. Beryllium, cooper contact. -
Page 15: Troubleshooting And Repair
Troubleshooting and Repair The T-former P.S is designed to be the most reliable P.S that can be used for unlimited time at all weather conditions, even at maximum load. The Power supply has slow-start circuit and overload protection to prevent the most common failure at the network such as inrush current that switches OFF the circuit breaker, or blows the fuse as a result of overload or short circuit.
