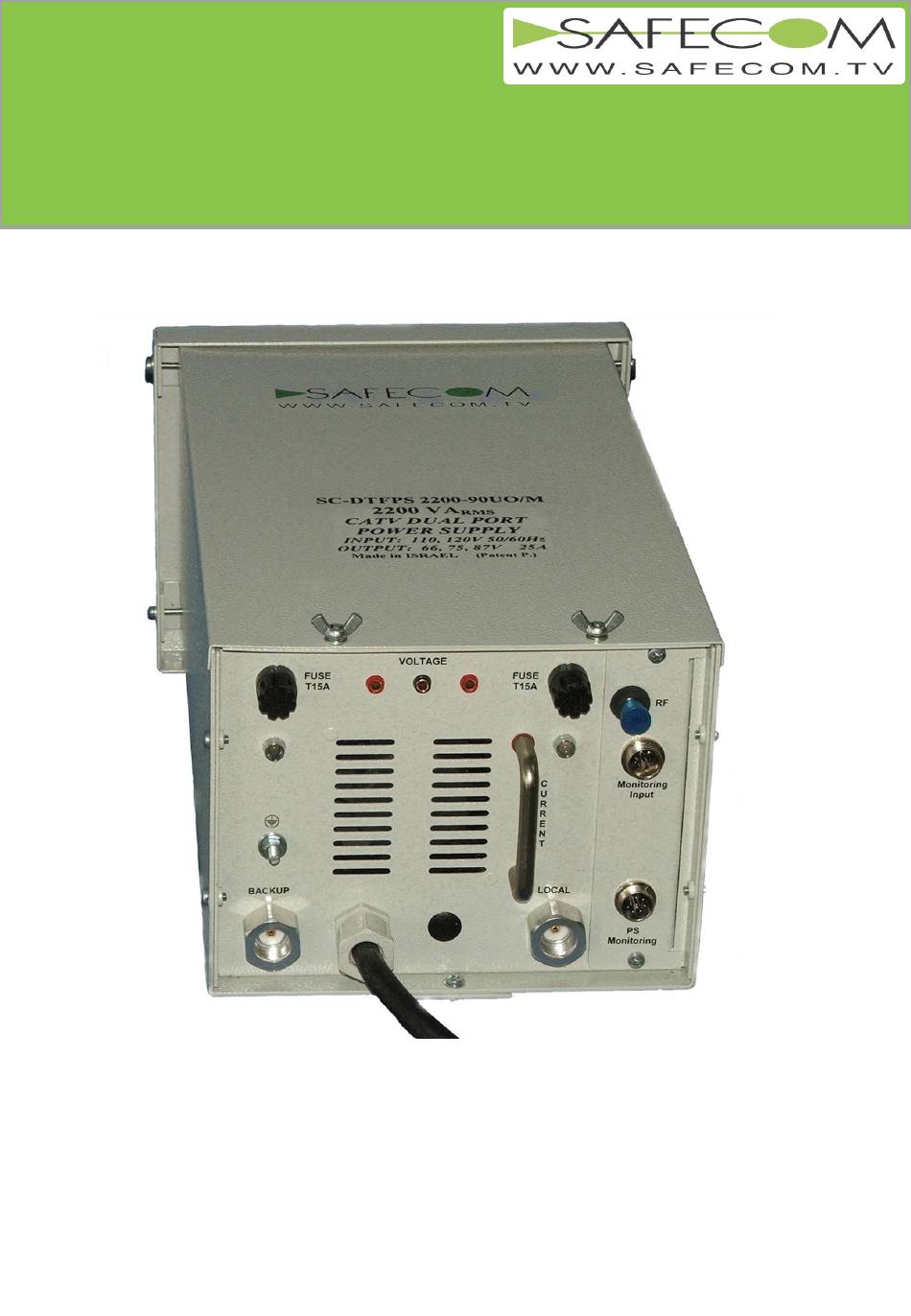

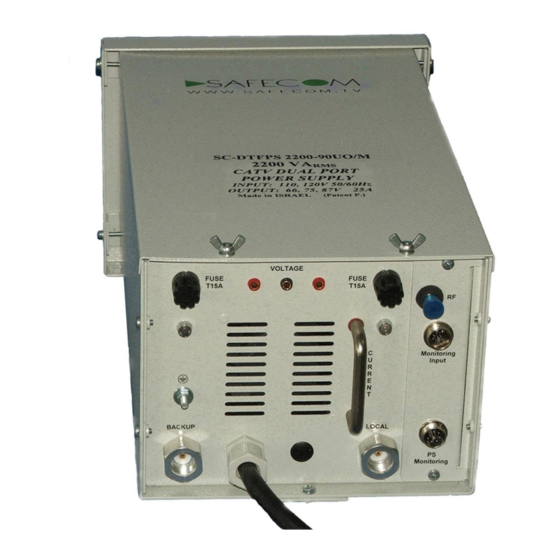

- Page 1 Power Safecom T-Former Series Stabilized sine voltage technology (Patent P) Modular UPS & Non –standby Power Supplies Safecom TFPS Series Installation Manual JUN-2011 SAFECOM Patent.P...
-
Page 2: Table Of Contents
Page 10: Bottom view – Connecting panel. Page 11: Back View bracket open & Mounting template. Page 12: back View bracket locked. Page 13 : Safecom T-former P.S ordering information. Page 14 : Connecting Power Cable to T-former AC OUTPUT. Page 15 : Troubleshooting and Repair... - Page 3 T-Former (patent P) - High efficiency Power supply • Lower Operating Costs - Saves at least 5% energy compared to Ferro systems • Lower Capital Cost per unit - compared to traditional Ferro-resonant devices. • Longer Life -Unique technology enables almost unlimited lifetime. •...
-
Page 4: Safety Instructions
Review the installation manual before proceeding. If there is any questions regarding safe installation or operation & performance please contact us support@safecom.tv Prior to any handling, the power supply is required to be disconnected from the Mains. Only an experienced and authorized technician or electrician who is qualified to work on the electrical grid while taking necessary precautions that comply with the electrical code will do handling. - Page 5 T-Former is designed to work at a wide range of temperatures humidity without maintenance, at full power capacity. Safecom's T-Formers undergo rigorous quality testing - with fully 100% of the units repeatedly tested.
- Page 6 Model SC-DTFPS 1050-60EO/I Electrical Input Voltage Taps (Vac) 230±15% EUROPE Input Frequency (Hz) 50/60 Input Current (A) < 5.5A Input inrush current < 10 A In single pulse of 5ms Input Power Factor 0.95 at full load Output Voltage Taps (Vac) 60, 66, 72V -25A (87V -25A ) Total Output Current (A)
-
Page 7: Technology
• Safecom T-Former P.S has the most efficient technology with almost 95% efficacy at wide range of load. It saves electricity and keeps cold temperature of transformer and electronic parts make P.S most reliable for un-limited life time •... -
Page 8: Inside View
Inside view : T-former outdoor 87V -15A... -
Page 9: Voltage Configuration
Voltage configuration Safecom TF-PS serial offer input & output voltage level flexibly. Technician can easily configure the optimal input voltage level and recommended output voltage level for supplying power to the network. 1) Ensure utility power is OFF when changing voltage configuration at input &... - Page 10 Bottom view Output Testing point Ground nnector Clamp Meter Output current test ndicator ED Green /Red Power output Quick type RF connector...
- Page 11 Back View Hanging Bracket Closed Cabinet Installed with special bracket for hanging or shelf-lain mounting Mounting slot Mounting Screw hole Hanging slot Bracket Locking Screw Installing an TFPS – Outdoor The SC-TFPS outdoor series non-standby power supplies are designed to mount by separate bracket on a wall or pole.
-
Page 12: Back View Bracket Locked
Back view TF-PS Bracket locked... -
Page 13: Safecom T-Former P.s Ordering Information
Safecom T-former P.S ordering information TFPS “M” : Monitoring “I” : indoor housing “O” :outdoor housing “E” :Europe standard 230V +/- 15% 50Hz “U” :USA standard 120V +/- 15% 60Hz “60” : 60V CATV voltage standard. “90” : 87V CATV voltage standard. -
Page 14: Connecting Power Cable To T-Former Ac Output
Connecting Power Cable to T-former AC OUTPUT All Safecom power supplies model has high current output quick type connector without seizure screw. Simply plug in connector at the front panel. Connection is made quickly and reliably from outside. Beryllium, cooper contact. -
Page 15: Troubleshooting And Repair
Troubleshooting and Repair The T-former P.S designed to be the most reliable P.S that can be use for unlimited time at most harass environmental such as heating and humidity even at maximum load. Power supply has slow start circuit and overload protection to prevent the most common failure at the network such as inrush current that switch OFF circuit breaker, or fuse blow cause by overload or sort circuit.
