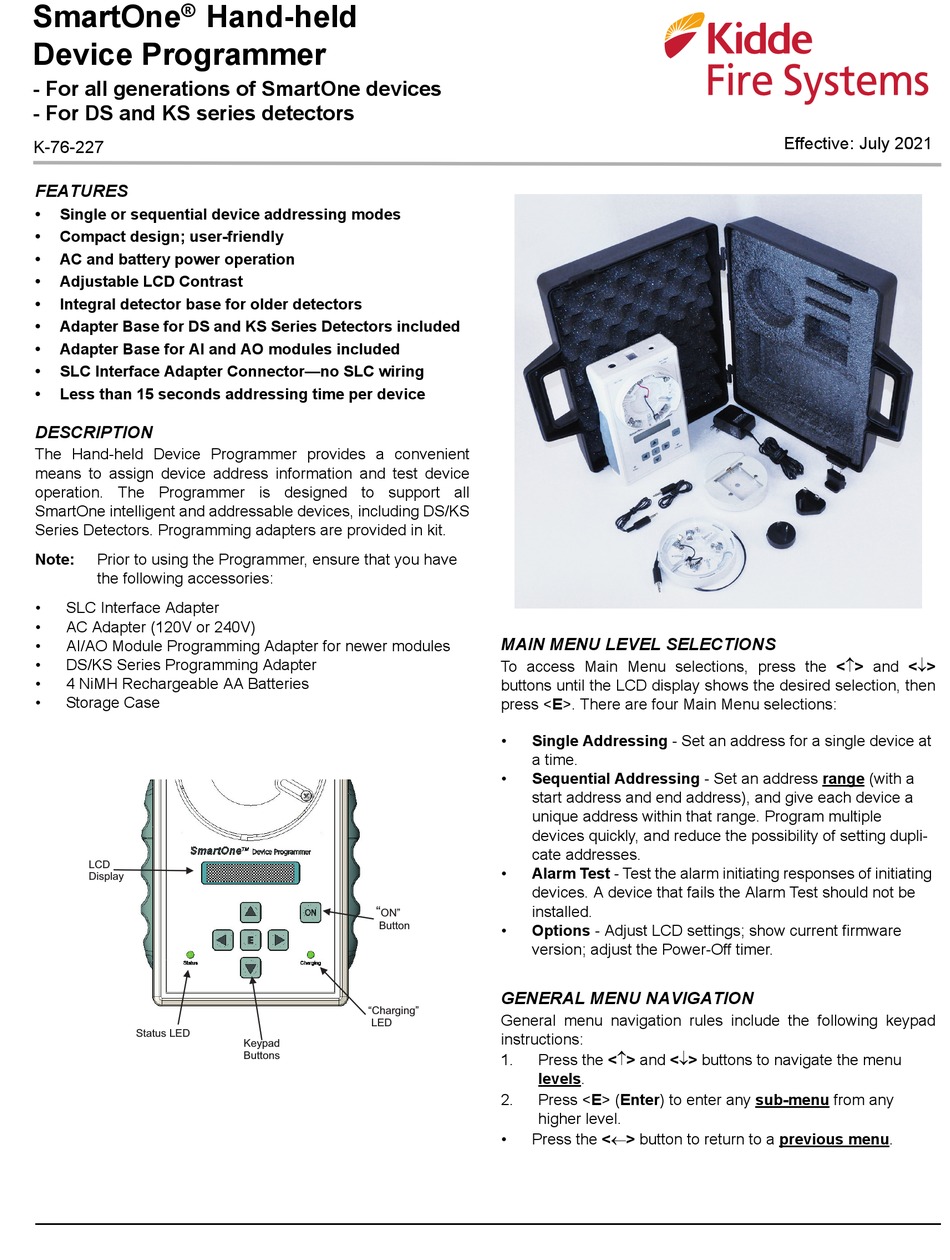

SmartOne
Hand-held
®
Device Programmer
- For all generations of SmartOne devices
- For DS and KS series detectors
K-76-227
FEATURES
•
Single or sequential device addressing modes
•
Compact design; user-friendly
•
AC and battery power operation
•
Adjustable LCD Contrast
•
Integral detector base for older detectors
•
Adapter Base for DS and KS Series Detectors included
•
Adapter Base for AI and AO modules included
•
SLC Interface Adapter Connector—no SLC wiring
•
Less than 15 seconds addressing time per device
DESCRIPTION
The Hand-held Device Programmer provides a convenient
means to assign device address information and test device
operation. The Programmer is designed to support all
SmartOne intelligent and addressable devices, including DS/KS
Series Detectors. Programming adapters are provided in kit.
Note:
Prior to using the Programmer, ensure that you have
the following accessories:
•

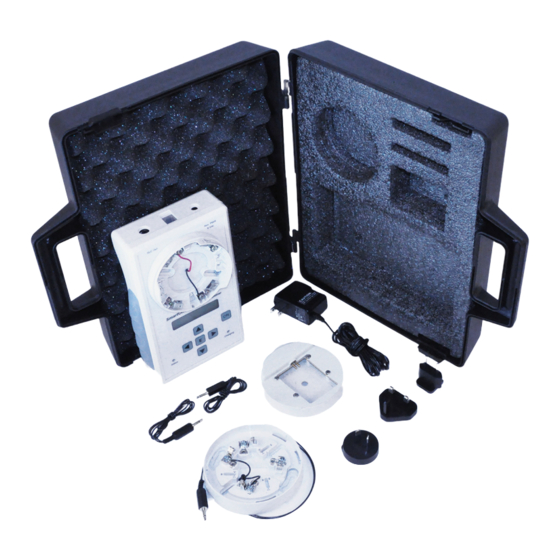

SLC Interface Adapter
•
AC Adapter (120V or 240V)
•
AI/AO Module Programming Adapter for newer modules
•
DS/KS Series Programming Adapter
•
4 NiMH Rechargeable AA Batteries
•
Storage Case
LCD
Display
Status LED
"
ON"
Button
"Charging"
LED
Keypad
Buttons
MAIN MENU LEVEL SELECTIONS
To access Main Menu selections, press the <> and <>
buttons until the LCD display shows the desired selection, then
press <E>. There are four Main Menu selections:
•
Single Addressing - Set an address for a single device at
a time.
•
Sequential Addressing - Set an address range (with a
start address and end address), and give each device a
unique address within that range. Program multiple
devices quickly, and reduce the possibility of setting dupli-
cate addresses.
•
Alarm Test - Test the alarm initiating responses of initiating
devices. A device that fails the Alarm Test should not be
installed.
•
Options - Adjust LCD settings; show current firmware
version; adjust the Power-Off timer.
GENERAL MENU NAVIGATION
General menu navigation rules include the following keypad
instructions:
1.
Press the <> and <> buttons to navigate the menu
levels.
2.
Press <E> (Enter) to enter any sub-menu from any
higher level.
•
Press the <> button to return to a previous menu.
Effective: July 2021
