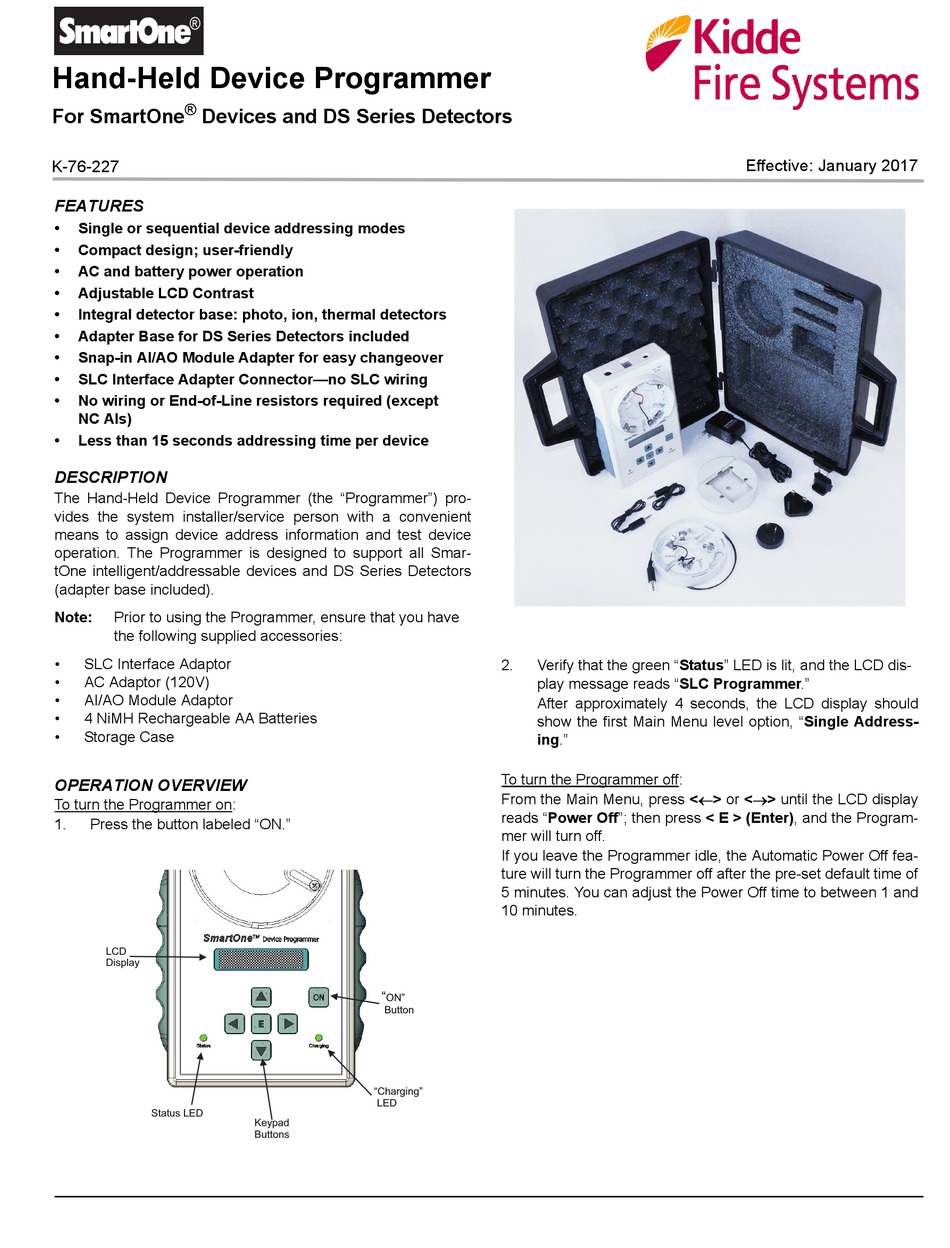

Kidde Fire Systems SmartOne K-76-227 Quick Start Manual

®
Hand-Held Device Programmer
®
For SmartOne Devices and DS Series Detectors
K-76-227
FEATURES
• Single or sequential device addressing modes
• Compact design; user-friendly
• AC and battery power operation
• Adjustable LCD Contrast
• Integral detector base: photo, ion, thermal detectors
• Adapter Base for DS Series Detectors included
• Snap-in AI/AO Module Adapter for easy changeover
• SLC Interface Adapter Connector—no SLC wiring
• No wiring or End-of-Line resistors required (except
NC AIs)
• Less than 15 seconds addressing time per device
DESCRIPTION
The Hand-Held Device Programmer (the "Programmer") pro-
vides the system installer/service person with a convenient
means to assign device address information and test device
operation. The Programmer is designed to support all Smar-
tOne intelligent/addressable devices and DS Series Detectors
(adapter base included).
Note: Prior to using the Programmer, ensure that you have
the following supplied accessories:
• SLC Interface Adaptor
• AC Adaptor (120V)
• AI/AO Module Adaptor
• 4 NiMH Rechargeable AA Batteries
• Storage Case
OPERATION OVERVIEW
To turn the Programmer on:
1. Press the button labeled "ON."
LCD
Display
Status LED
"
ON"
Button
"Charging"
LED
Keypad
Buttons
2. Verify that the green "Status" LED is lit, and the LCD dis-
play message reads "SLC Programmer."
After approximately 4 seconds, the LCD display should
show the first Main Menu level option, "Single Address-
ing."
To turn the Programmer off:
From the Main Menu, press <> or <> until the LCD display
reads "Power Off"; then press < E > (Enter), and the Program-
mer will turn off.
If you leave the Programmer idle, the Automatic Power Off fea-
ture will turn the Programmer off after the pre-set default time of
5 minutes. You can adjust the Power Off time to between 1 and
10 minutes.
Effective: January 2017
