weed instrument EOTec 2000 MUX Installation Instructions

Specifications
Power Requirements 9VDC @ 200mA via
the interconnection Bus
from a 2A06 or 2A16
power supply or the
MUX Base Module
(2M55, 2M57, 2M59 or
2M61)
Connections Pluggable, Cage Clamp
Screw Terminal Blocks,
Accept 12 to 24 AWG
Serial Communications Bi-directional,
Half-Duplex
Baud Rates RS-232: 9.6K to 115.2K
RS-485: 9.6K to 230.4K
Wire Cable Termination
RS-232 none required
RS-485 User supplied based on
cable specifications
Maximum Devices
and Cable Length
RS-232 1 Device, 50ft (15m)
RS-485 30 Devices, 2000ft
Ambient Conditions -40 to 85°C
0 to 95% Humidity
(Non-condensing)
Mounting 35mm DIN Rail
Weight < 9oz
Flammability Rating UL V-0
Safety and Warning Information
Connect the DIN Rail, via the Model 2A09 End
Clamp, to protective earth ground with low
impedance. The modules are grounded to PE
when they are snapped onto the DIN Rail. A
Model 2A09 End Clamp on each side of the
module bundle on the DIN rail prevents
accidental
interconnection bus.
Important Notice - Before utilizing the product, the user should
determine the suitability of the product for its intended use. The
user assumes all risk and liability in connection with such use.
WEED INSTRUMENT'S WRITTEN WARRANTY FOR THE
(600m)
PRODUCT IS MADE IN LIEU OF ALL OTHER WARRANTIES,
EXPRESSED
MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE. The user's exclusive remedy for breach of Weed
Instrument's written warranty shall be the repair or replacement
of such quantity of product which is proven to be defective. In no
case shall Weed Instrument be liable for any special, incidental,
or consequential damages based upon breach of contract,
negligence, strict liability or other legal theory.
Weed Instrument Co., Inc.
Fiber Optics Division
Phone:
Fax:
Email:
Visit:
Publication Number:
disconnection of the modules'
OR IMPLIED WARRANTIES
800-880-9333
512-434-2850
512-434-2851
fiberop@weedinstrument.com
www.weedinstrument.com
RM0900177 Rev. 7/04
Weed Instrument
Fiber Optics

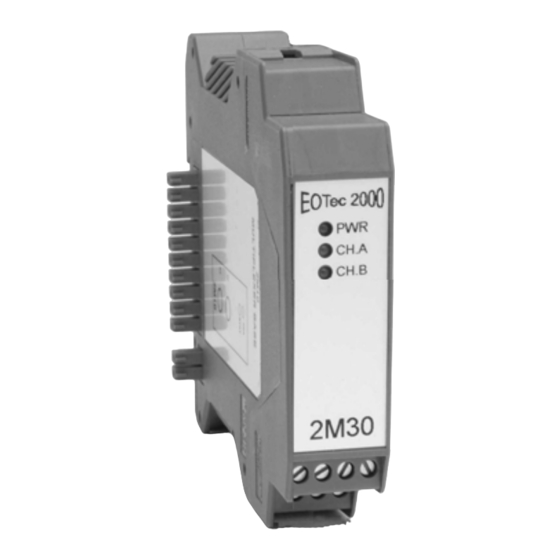

EOTec 2000 MUX Model
2M30
Dual Channel, RS-232/485
Installation Instructions
OF
2 Channel, RS-232 or RS-485
Serial Communications Module
For use with the EOTec 2000
Multiplexer (MUX)
