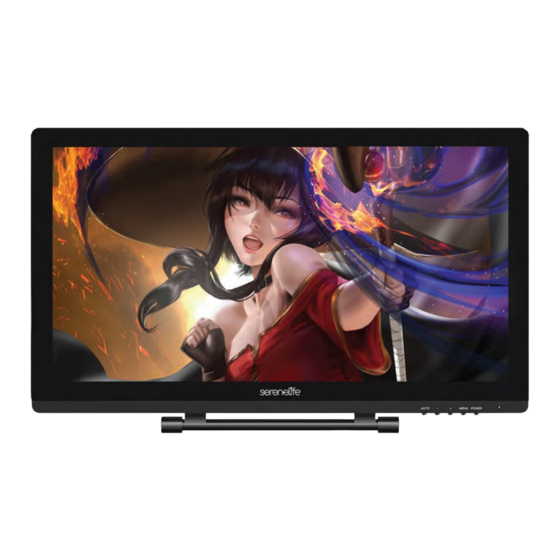

SereneLife SLGT22 User Manual

22 graphics tablet monitor full-laminated technology drawing monitor with 8 buttons each frame and wireless pen
Hide thumbs Also See for SLGT22:

Advertisement

Quick Links

SLGT22
22'' Graphics Tablet Monitor
Full-Laminated Technology Drawing Monitor with 8 Buttons
Each Frame and Wireless Pen

Advertisement

loading
Need help?

Need help?

Do you have a question about the SLGT22 and is the answer not in the manual?

Questions and answers

Related Manuals for SereneLife SLGT22

Summary of Contents for SereneLife SLGT22

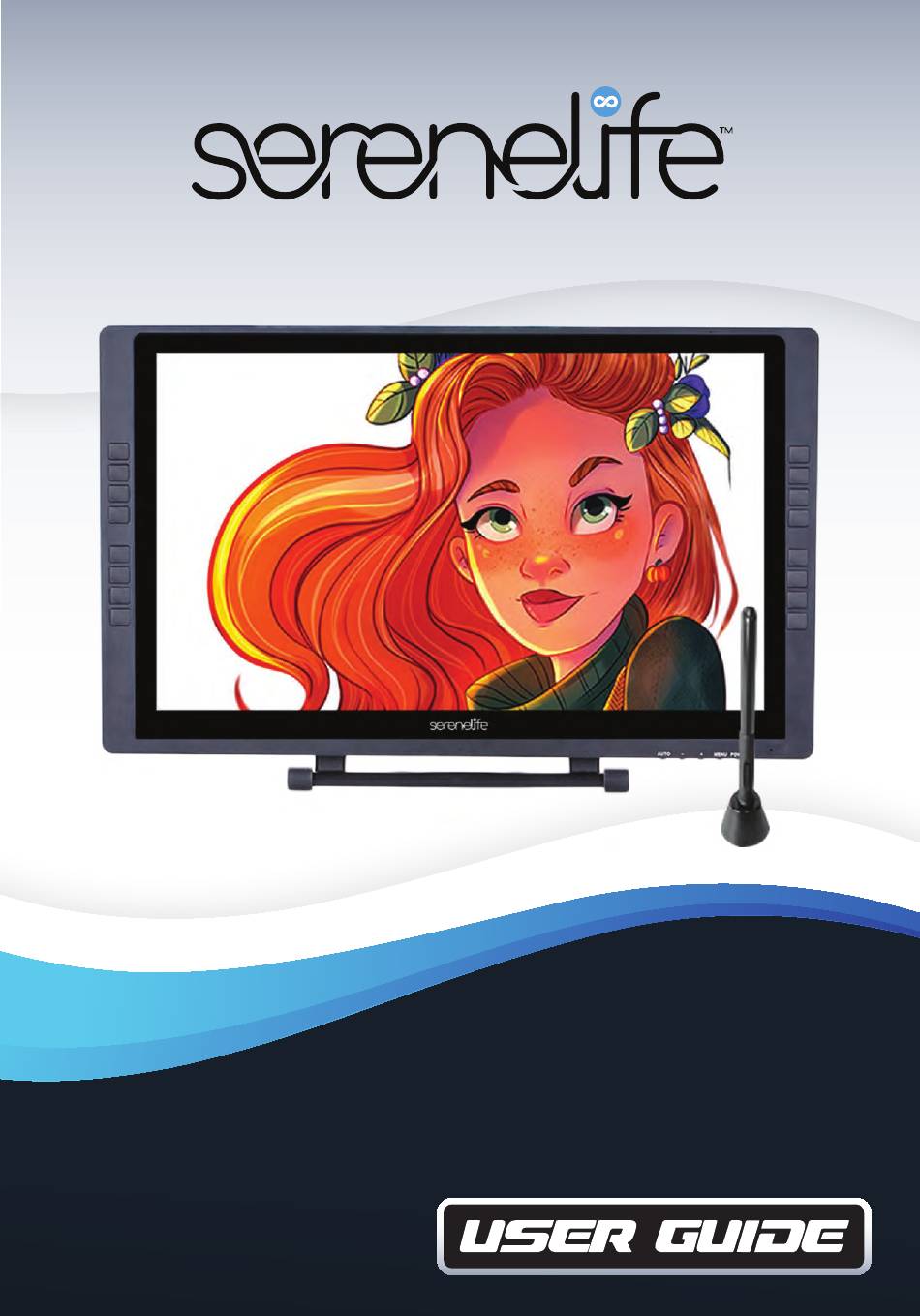

  • Page 1 SLGT22 22'' Graphics Tablet Monitor Full-Laminated Technology Drawing Monitor with 8 Buttons Each Frame and Wireless Pen...

  • Page 2: Table Of Contents

    In order for you to better understand and use your graphics tablet, please be sure to read this manual carefully before use. CONTENTS Precautions Part 1. Product Overview Part 2. Connecting the Monitor Part 3. Driver Installation Part 4. Driver Setting Part 5.

  • Page 3: Precautions

    Precautions 1. Please read this manual carefully before using, and keep it well for future reference. 2. Before cleaning the display please unplug the USB cable and wipe with a soft damp cloth, do not use any kind of detergents. 3.

  • Page 4: Part 1. Product Overview

    Part 1. Product Overview 1.1 Overview 1. Display/Working area 2. Express key 3. Power indicator light a. On, Blue: The monitor is connected to your computer and powered on b. On, Red: The monitor is powered on, but not connected to a computer c.
  • Page 5 After receiving the product, please inventory the contents to ensure you have all the proper parts, as listed below. If anything is missing or damaged, please contact SereneLife Customer Service for a replacement. 1 Pressure pen 1 monitor LED Display...
  • Page 6 1 VGA cable 1 power cord + 1 12V3A Adapter 1 Pen Holder 1 Pen Charging cable (contains pen Nibs & clipper) 1.4 System requirements • Windows 10,8, or 7/Mac OS X 10.8 or above • Pentium 233MHz or higher 64MB of Ram （128MB recommended）...

  • Page 7: Part 2. Connecting The Monitor

    Notes: Barrel button functions can be customized in the tablet's driver settings. Pen Nib Remove and Pen Nibs Pen Nib Remover Pen Nibs Pen Nib replacement 1. You will need the Pen nib removal tool. 2. For monitor, use the pen nib removal tool to pull out the pen nib. 3.

  • Page 8: Part 3. Driver Installation

    Connect the monitor's power cord. Plug the cord into the included adapter, then into a wall outlet. 1. VGA 2. DVI 3. HDMI 4. Power jack 5. USB Part 3. Driver Installation 3.1 Instructions 1. Disable any antivirus or rewall software and close any non-essential background software before beginning the installation.
  • Page 9 5. (Recommended) Open [Control Panel] > [Display], then set Change the size of text, apps, and other items to 100%. 6. In [Control Panel] > [Display], change your dual monitor settings to Extend mode/Extend these displays. 7. In Extend mode, set your monitor to monitor 2 and choose a resolution of 1920 x 1080.

  • Page 10: Part 4. Driver Setting

    3. Extract the ".zip" le contents before running ".pkg”. Part 4. Driver Setting Notes: a. The monitor's express keys are designed to work with US English keyboards. Keys may not function correctly with the other keyboard languages. b. By default, the monitor express keys are mapped to standard Photoshop keyboard shortcuts.
  • Page 11 Barrel Button Settings You may customize the functions of your tablet pen's barrel buttons here. Use the “Function Key" option to program custom keystrokes. Click Sensitivity & Current Pen Pressure You can adjust pen pressure to "Output" or “Press” sensitivity on here. Current Pen Pressure shows the current pressure level being exerted on your tablet and can be used to test pen pressure.
  • Page 12 Mouse Mode Absolute (Pen) Mode: Standard tablet mode; Each point of the tablet's work area corresponds to an absolute point on your computer display. Relative (Mouse) Mode: Mouse mode; The tablet's work area does not correspond to absolute points on your computer display and your pen works as a standard mouse. Windows Ink Windows Ink capability can be toggled on and o here.
  • Page 13 4.2 MAC To open the monitor's driver settings, open Finder > Applications > Pen Tablet Setting. www.SereneLifeHome.com...
  • Page 14 In this tab, you may customize the functions of your stylus' barrel buttons, adjust pressure sensitivity, and test your pen pressure. Pressure No Support function can disable pen pressure when drawing. Click “Default Button Setting" to revert to manufacturer settings. Note: Pen/Eraser Toggle With the stylus In range of the monitor's working area, press the assigned barrel...
  • Page 15 Monitor The “Monitor” tab allows you to con gure your tablet for use monitor 1 or monitor 2. www.SereneLifeHome.com...
  • Page 16 Calibration The Calibration tab allows you to calibrate your tablet or rotate your display. To calibrate, click Calibration and follow the on-screen instructions. Rotate: You may rotate the monitor's display in this tab. Shortcut Keys setting In this tab, you may edit the functions of the monitor’s shortcut keys. www.SereneLifeHome.com...

  • Page 17: Part 5. Driver Uninstallation

    About This tab displays the current version of your driver software. Part 5. Driver Uninstallation 5.1 Windows In the Start menu, open [Settings] — [Apps & features]. Find "Pentablet" and dick "Uninstall” Follow the on-screen instructions. 5.2 MAC Open [Finder] > [Application] > [Pen Tablet], then click "Uninstall Pen Tablet" and follow the on screen instructions.

  • Page 18: Part 6. Osd Key And Display Stand

    NOTE: When attempting to reinstall the monitor driver, be sure to reboot your computer after the uninstall is complete. Part 6. OSD KEY and Display Stand 6.1 OSD KEY & Display Stand OSD KEY The monitor's controls are on right of the display bezel. The ve buttons have the following functions: 1.
  • Page 19 6.2 The Express Keys 1. Brush Size + 2. Brush Size - 3. Zoom In 4. Zoom Out 5. Undo 6. Hand 7. Brush 8. Eraser 6.3 LED Color Status Green Power on No Signal — Power o 6.4 Display Stand Adjusting the Display Stand level To adjust the tablet monitor in an optimum tilt position for di erent applications Display Stand www.SereneLifeHome.com...
  • Page 20 6.5 MENU Description Luminance Brightness Adjusts the brightness of the display. The adjustment range is from 0 to 100. Contrast Adjusts the image contrast. The adjustment range is from 0 to 100. Gamma Turns gamma decoding on or o . Picture Phase Allows adjustment of the monitor's Phase...
  • Page 21 Color Color Temperature Allows you to select a xed color temperature value (6500K, 7500K, or 9300K) or select the User setting to allow adjustment of the individual Red, Green, and Blue levels. When the Color Temperature is set to User, you can edit the Red, Green, and Blue level in the image.
  • Page 22 Setup Language Allows selection of the language to use in the OSD menu. The available options are English, Spanish, French, German, Italian, Portuguese, Korean, and Chinese. The default is English. Input Allows selection of which video input to use, VGA, DVI, or HDMI. Reset Resets the monitor to its default settings.

  • Page 23: Part 7. Troubleshooting

    Part 7. Troubleshooting If your tablet monitor fails to operate correctly, consult the following table for possible solution before calling for repairs. Condition Check point • Check to make sure the signal cable is rmly seated in the socket • NO Signal Check that the power is ON at computer.
  • Page 24 Questions? Issues? We are here to help! Phone: (1) 718-535-1800 Email: support@pyleusa.com...
