- Page 1 CY3280-BSM Universal CapSense™ Simple Button Module Kit Quick Start Doc. # 001-51789 Rev. *A Cypress Semiconductor 198 Champion Court San Jose, CA 95134-1709 Phone (USA): 800.858.1810 Phone (Intnl): 408.943.2600 http://www.cypress.com [+] Feedback...

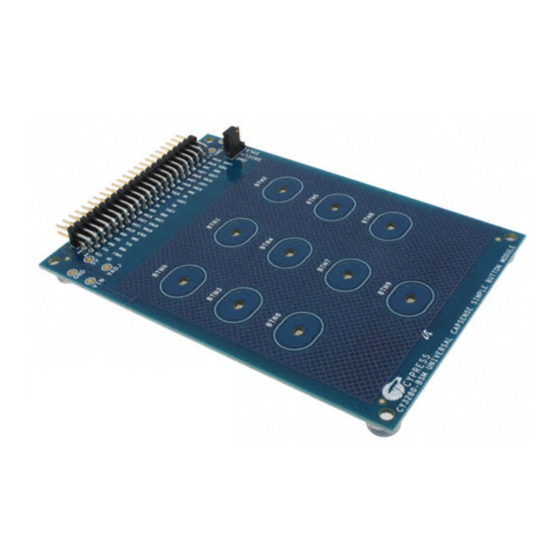

- Page 2 1. Kit Contents Each CY3280-BSM Universal CapSense™ Simple Button Module Kit contains: ■ CY3280-BSM Universal CapSense Module Board ■ CY3280-BSM Universal CapSense Module Board CD/DVD ■ CY3280-BSM Quick Start ■ 3 mm Acrylic Overlay with adhesive ■ 1.5 mm Acrylic Overlay with adhesive Universal CapSense Module boards are available for purchase separately, or as part of combination kits.
- Page 3 3. Getting Started The CY3280-BSM board can be used with any of the UCC (Universal CapSense controller) boards. The example firmware is available on the CD/DVD. Insert the CY3280-BSM Kit CD/DVD into the CD/DVD drive of your PC, and follow the instructions on the screen to complete the installation.
- Page 4 ©2009 Cypress Semiconductor Corporation. CapSense™ and Programmable System-on-Chip™ are ® trademarks, and PSoC is a registered trademark of Cypress Semiconductor Corp. All other trademarks or registered trademarks referenced herein are property of the respective corporations. If you have questions, call Cypress Customer Support +1 (800) 541-4736 Ext.
