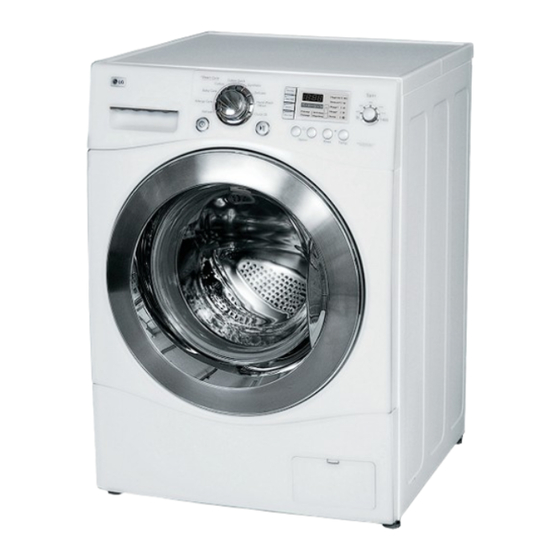

LG F1403TDS Owner's Manual

Remove Packaging Electrical connection
1 4
1. Do not use an extension cord or double adapter.
• The appliance is fi tted with transit bolts to prevent internal
2. Have damaged supply cords replaced by the manufacturer or its service agents or a similarly qualifi ed person
damage during transport. Be careful, heavy load!
to prevent danger.
3. Always unplug the machine and turn off the water supply after use.
• Packing and all transit bolts must be removed before using
4. Connect the machine to an earthed socket in accordance with current wiring regulations.
the washing machine.
5. The appliance must be positioned so that the plug is easily accessible.
• Repairs to the washing machine must only be carried out by qualifi ed personnel. Repairs carried out by inexpe-
• When unpacking the base, be sure to remove the additional
rienced persons may cause injury or serious malfunctioning. Contact your local service centre.
packing support in the middle of the base packing.
• Do not install your washing machine in rooms where temperature below freezing may occur. Frozen hoses may burst
under pressure. The electronic control unit may become unreliable at temperatures below freezing point.
i Store original packing for future move. • If the appliance is delivered in the winter months and temperatures are below freezing: Leave the washing machine
Dispose of packing material according to local regulations. standing at room temperature for a few hours before putting it into operation.
BS Plug Safety Details (For U.K. User)
This appliance must be earthed As the colours of the wires in the mains lead of
this apparatus may not correspond with the coloured markings identifying the
Transit bolts terminals in your plug, proceed as follows: The green and yellow wire must be
2
connected to the terminal in the plug marked E or by the earth symbol
coloured green or green and yellow. The wire coloured blue must be connected to
Schraubenschlüssel
the terminal marked with the letter N or coloured black. The wire coloured brown must be connected to the terminal
1 2
To prevent internal dama- marked with the letter L or coloured red. If a 13 amp (BS 1363) plug is used, fi t a 13 amp BS 1362 fuse.
Remove the 4 bolts
ge during transport, the
along with the rubber
special 4 bolts are locked.
bungs by slightly CAUTION
If they are not removed, it
twisting the bung.
may cause heavy vibrati-
on, noise and machine to
The appliance is not intended for use by young children or infi rm persons without supervision.
malfunction. Young Children should be supervised to ensure that they do not play with appliance.
3 4 Connecting water supply hose
Close the holes with 5
Unscrew the 4 bolts
3. Die 4 Schrauben lösen und die
using the spanner the caps supplied.
Gummipfropfen etwas drehen, um sie
supplied. The hose supplied with the machine must be used. Old hoses may not be reused
zusammen mit den Schrauben abzunehmen.
Die 4 Schrauben und den Schraubenschlüssel
für späteren Gebrauch aufbewahren.
• Die Transportsicherungsschrauben müssen vor
i
Keep the 4 bolts and the spanner for the future use. Refi t transit bolts before transporting the appliance.
jedem Transport des Geräts wieder angebracht
werden.
Requirements for installation site
3
4. Die Schraubenbohrungen mit den
beiliegenden Kappen verschließen.
Level fl oor: Permissible fl oor gradient under entire washing machine
is 1˚ .
5
Power socket: Must be within 100 cm of either side of location of
• Two rubber seals are supplied with the water inlet hoses. They are used for preventing water leaks.
washing machine. Do not overload the socket with more than one • Make sure the connection to taps is tight enough.
appliance.
• Periodically check the condition of the hose and replace the hose if necessary.
• Make sure that there is no kink on the hose and that it is not crushed.
Additional Clearance: For wall, fl oor and door space is needed.
(10cm: rear / 2cm:right & left side). Do not place or store laundry pro- i
If after completing connection water leaks from the hose, repeat the same steps. Use the most conventional
ducts on top of the washing machine at any times. They can damage
type of tap for water supply. In case the faucet is square or too big, remove the spacing ring before inserting
the fi nish or controls of the machine.
the tap into the adaptor.
6 Installation of drain hose
or
• The drain hose should not be placed higher than 100 cm above the fl oor.
• Proper securing of the drain hose will protect the fl oor from damage due to any water leakage.
Water supply pressure must be between 1.0-10 bar (100kPa~1000kPa) • If the drain hose is too long do not force back into the washing machine. This will cause unusual noise.
Don't strip or crossthread when connecting inlet hose to the valve.
If the water supply pressure is more than 1000kPa, a decompression
device should be installed.
Level adjustment
7
• Proper level-adjustment of the washing ma-
chine prevents excessive noise and vibration.
Install the appliance on a solid and level fl oor
surface, preferably in a corner of the room.
Adjustable feet • If the fl oor is uneven, adjust feet as required.
(Do not insert pieces of wood etc. under the
feet). Make sure that all four feet are stable
and resting on the fl oor. Then check that
the appliance is perfectly level. (Use a spirit
level).
Adjustable feet
Safety instructions for use
Safety instuctions for the installation
Read all instructions and explanations of the installation before use. Follow the instructions carefully. Keep the
Install or store appliance where it will not be exposed to sub-zero temperatures or exposed to the weather. Fit ground of the
operating instructions handy for later use. If the appliance is sold or passed on then ensure that the new owner
washing machine correctly to conform with all statutory regulations and ordinances. Ensure that the base opening is free from
always receives these operating instructions. The following warnings must be strictly observed for safety rea-
obstruction by carpeting if the washing machine is installed on a carpeted fl oor. In countries where there is a risk of cockroach
sons. They must be read before installing the appliance and putting it into operation.
infestation or other vermin, pay particular attention to keep the appliance and its surroundings in a clean condition at all times.
Any damage which may be caused by cockroaches or other vermin is not covered by the appliance guarantee. • Intended use: This appliance has been designed exclusively for use in dry-interior households. Use the appliance only
with cold drinking water and only for washing textiles with washing detergents designed for washing machines. Every
other use is improper and may lead to injuries, whereby the liability of the manufacturer will cease.
CAUTION about positioning the appliance
• This appliance may only be used by adults. Do not allow children to touch the controls or to play with the product.
Install the washing machine on a fl at hard fl oor. Make sure that air circulation around the washing machine is
• Never modify the appliance on your own, as this is dangerous.
not impeded by carpets, rug etc.
• This appliance is heavy. Transporting with care.
• Remove all packaging and transport bolts before using the appliance. Otherwise serious damage may result.
• Never try to correct any unevenness in the fl oor using pieces of wood, cardboard or similar materials under the washing machine.
• All installation work must be carried out by a qualifi ed fi tter or technician.
• If it is not possible to position the washing machine away from a gas cooker or coal burning stove, an insulation panel
(85x60cm) covered with aluminum foil on the side facing the cooker or stove, must be inserted between the two appliances. • Have electrical connections done by a qualifi ed electrician.
• The washing machine must not be installed in rooms where the temperature may drop below 0°C. • Never place the appliance on the power cord.
• Please ensure that when the washing machine is installed an engineer can gain easy access in the event of a breakdown. • If the appliance is placed on a carpet then place the feet so that air can circulate underneath the appliance.
• Adjust all four feet using the transit bolt spanner provided to ensure that the appliance is stable, with 20mm clearnace between • Always unplug the machine and turn off the water supply after use. Disconnect appliance by pulling only the plug
the top of the washing machine and underside of the worktop. - never disconnect by pulling the power cord. Never touch the plug with wet fi ngers or hands.
• Do not overload the appliance.
• Wash only machine-washable textiles. If you have doubts regarding this, then observe the markings on the label.
CAUTION about the power cord
• Never place electrical heaters, candles etc. in the vicinity of the appliance. They could cause the appliance to ignite or
We recommend connecting most appliances to a dedicated circuit. That is, a single outlet supplying power only to the appliance parts to warp.
• Protect the appliance from wet and damp. Otherwise, there is danger of electric shock and fi re.
concerned, without any additional outlets or branch circuits. Check the specifi cations of this owner's manual. Do not overload
• Connect the appliance to a suitable wall socket for 220-240V. Never use an extension cord or double adapter.
wall sockets. Overloaded wall sockets, loose or damaged wall sockets or extension cords, frayed power cords, damaged or
• Empty all pockets. Hard or sharp objects such as coins, needles, nails, screws or stones may cause serious damage.
cracked wire insulation are dangerous. Any of these conditions could result in electric shock or fi re. Periodically examine the
cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, Unbalanced mass may create heavy vibrations. If heavy vibrations remain also without load, call for an authorized
and have the cord replaced with an exact replacement part by an authorized servicer. Protect the power cord from physical or customer service.
mechanical abuse, such as being twisted, kinked, pinched, squashed in a jamb of a door, or walked upon. Pay particular atten- • Do not wash or dry articles that have been cleaned in, washed in, soaked in, or dabbed with combustible or explosive
tion to plugs, wall outlets, and the point where the cord exits the appliance. We recommend to use a residual current operated substances (such as wax, oil, paint, gasoline, degreasers, dry-cleaning solvents, kerosene, etc.). This may result in
device in the mains supply. fi re or explosion.
• Never insert products coated with mineral oils (e.g. nylon coating, plastic belts, etc. ) into the machine. If a stain re-
mover has been used then make sure that the solvent has been carefully washed out before inserting the clothes into
CAUTION about location and moving
the appliance. Oil may remain in the tub after a whole cycle resulting in fi re during drying. So, do not load oily clothes.
This equipment is not designed for maritime use or for use mobile installations such as caravans, aircraft etc. Turn off the stop- • Do not operate the appliance at locations where fl ammable substances are present such as oil, benzene or highly
cock if the machine is to be left for any length of time (e.g. if you are going on holiday), especially if there is no fl oor drain (gully) infl ammable gas. Such materials may cause fi re or explosion. Never use combustible detergents.
in the immediate vicinity. If relocating the appliance use the original packing material. Disable the door lock to prevent young • Only add the prescribed amount of softener. Excessive amounts may damage the clothes.
children becoming trapped inside. Packaging material (e.g. plastic fi lm, Styrofoam) can be dangerous for children. There is a risk • After washing, keep the drum door open to protect the door seal.
of suffocation! Keep all packaging well away from children. • Make sure that all water has run off before opening the door. Never open the door if water still remains. Danger of
scalding.
CAUTION about the fl oor surface • Animals and children may get into the washing machine. So always check the appliance before using it.
• During washing, the glass door becomes very hot. Keep children away from the appliance when in operation.
• The installation surface must be clean, dry and level.
• Never try to repair the machine yourself. Incorrect repairs may result in injuries and/or serious defects to the machine.
• Install washing machine on a fl at hard fl oor.
• The product should be serviced and repaired only by the authorised customer service using original replacement
• Proper placement and levelling of the washing machine ensure long, regular and reliable operation.
parts.
• The washing machine must be perfectly level and fi rmly in position. • When disposing of your old machine, the power cable must be capped and the door lock must be made unusable in
• It must not "see-saw" across corners under load. order to protect children.
• The installation surface must be clean, free from fl oor wax and other lubricant coatings. • When placing on a carpeted fl oor, make sure that the opening in the socket is not blocked.
• Do not allow the feet of the washing machine to get wet. If feet of the washing machine get wet, slipping may occur. • If the appliance has been under water then contact the customer service. There is danger of electric shock and fi re.
• The cover cup of the fi lter as well as the dispenser drawer may not be opened during the operation.
• Keep all washing powder and detergents away from children. Danger of poisoning
@ Technical Specifi cation
Disposal • When this crossed-out wheeled bin symbol is attached to a product it means the product is
covered by European Directive 2002/96/EC.
• All electrical and electronic products should be disposed of separately from municipal
Name of product Front loading washing machine Max. Watt 2100 W (Wash) / 1100 W (Steam)
waste stream via designated collection facilities appointed by the government or the local
Power supply 220~240 V~, 50 Hz Wash capacity 8 kg authorities.
• The correct disposal of your old appliance will help prevent potential adverse consequences
Size WxDxH mm: 600 x 590 x 850 Water consumption 52 ℓ (6.5 ℓ / kg)
for the environment and human health.
• For more detailed information about disposal of your old appliance, please contact your city
Weight 63 kg Permissible water pressure 1.0-10 bar (100-1000kPa)
offi ce, waste disposal service or the shop where you purchased the product.
N Troubleshooting
• Water supply is not adequate in area Check another tap in the house.
• Water supply taps are not completely open. Fully open tap.
• Water inlet hose(s) are kinked. Straighten hose(s).
• The filter of the inlet hose(s) are clogged. Check the filter of the inlet hose(s).
Clean and straighten the drain hose.
• Drain hose is kinked or clogged.
Clean the drain filter.
• The drain filter is clogged.
For more detailed information,
please refer to "Cleaning the drain pump filter"
• Load is too small. Add 1 or 2 similar items to help
• Load is out of balance.
balance the load.
• The appliance has an unbalance detection Rearrange load to allow proper
and correction system. If individual heavy spinning
articles are loaded (ex. bath mat, both robe,
etc.), this system may stop spinning or even
interrupt the spin cycle altogether.
• If the laundry is still too wet at the end of the
cycle, add smaller articles of laundry to
balance the load and repeat the spin cycle.
• Is the door opened or not
Close the door completely.
completely closed? If " "is not released, call for service.
Unplug the power plug and call for service.
• Water overfills due to the faulty water
Close the water tap.
valve.
Unplug the power plug.
Call for service.
• Water level sensor has malfunctioned.
• Over load in motor.
• Water leaks
Call for service.
• The washer experienced a power failure.
Restart the cycle.
Rattling and clanking noise Extraneous objects such as coins or safety pins maybe in drum or pump.
Thumping sound Heavy wash loads may produce a thumping sound. This is usually normal.
Vibrating noise
Have all transit bolts and packing been removed?
Water leaks. Check and tighten hose connections. Unclog drain pipe.
Contact plumber if necessary.
Excessive suds Too much detergent or unsuitable detergent.
Please read this owner's manual carefully, it provides instructions on safe installation, use and maintenance.
Washing machine does not start Power cord may not be plugged in or connection may be loose.
Keep it handy for future reference of this machine. Make a note of the model and serial numbers of your washing machine.
Washing machine won't spin Check that the door is fi rmly shut.
Door does not open Once started, the door can not be opened for safety reasons.
Wait one or two minutes before opening the door to allow the electric
CUSTOMER SERVICES Tel. : +44-(0) 844 847 LGLG(5454) Fax. : +44-(0) 844 847 1413
locking mechanism time to release.
Owner's Manual
F1403TDS(1~9)
F1203TDS(1~9)
Before use please read carefully the safety instructions!
Thank you for buying an LG fully automatic washing machine.
For the U.K. customer
LGEUK SERVICE WEB-SITE : http://www.lge.co.uk
P/No. :MFL59755582
