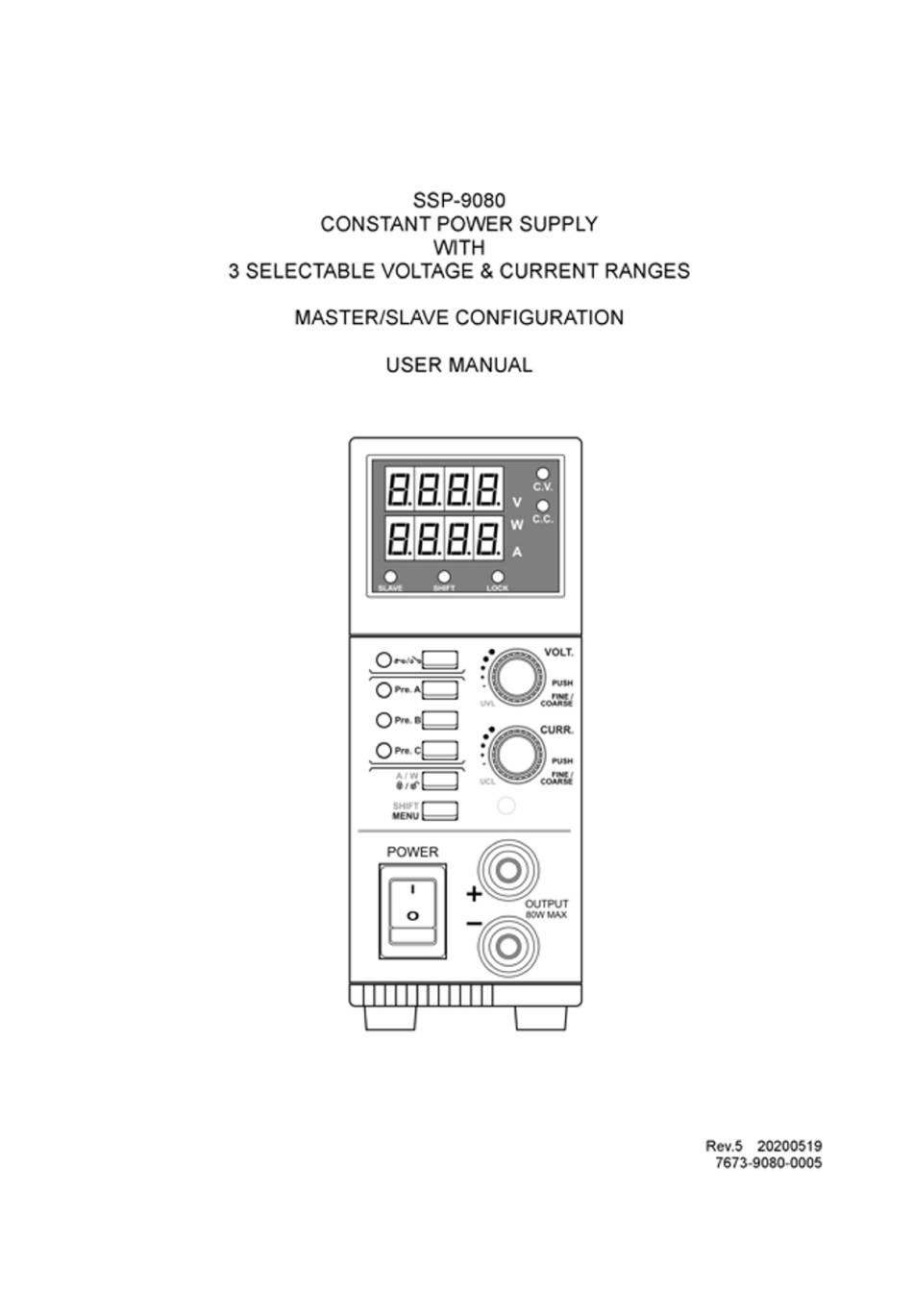

- Page 1 Copyright © <202005> by <Manson Eng. Ind. Ltd.>. All Rights Reserved.
-
Page 2: Table Of Contents
SSP-9080 User manual Table of contents Precautions and Warning ..................3 Warning ......................3 Caution ......................3 Operating environmental condition ..............3 Accessories ....................... 4 Introduction ...................... 4 Display and Indications ..................5 Back Panel ......................7 Operation Procedures ..................8 Adjusting output voltage and current ............... -
Page 3: Precautions And Warning
SSP-9080 User manual Precautions and Warning Keep this manual in a safe place for quick reference at all times. This manual contains important safety and operation instructions for the correct use of the power supply. Read through the manual and pay special attention to the markings and labels of this unit and equipment to be connected. -
Page 4: Accessories
3 user presets of V&I for frequently used output settings. Master & Slave configuration with either SSP-9080 or SSP-9081 as Master for parallel connection of up to 30 Units of either SSP-9080 or SSP-9081as slave units. -
Page 5: Display And Indications
SSP-9080 User manual Display and Indications Fig. Display panel 4 digits displays The upper part of display is volt-meter and the lower part of display is amp-meter or watt-meter. Constant Voltage Mode LED Indicates the Power Supply is working in Constant Voltage mode. - Page 6 SSP-9080 User manual Indicates the lower row of the 4 digit LED is Amp-meter. The value is showing output current in Ampere. Slave LED Indicates the Power Supply is in slave mode and controlled by the master unit. The voltage and current setting of slave units are controlled by the master unit.
-
Page 7: Back Panel
SSP-9080 User manual Back Panel 1. Remote sensing terminals 2. DC output terminal which has same power rating as the front output 3. Master / Slave connection 4. Factory reserved 5. AC Input socket 7 / 17... -
Page 8: Operation Procedures
SSP-9080 User manual Operation Procedures Adjusting output voltage and current Set upper voltage limit and upper current limit Select and adjust 3 preset value of Voltage and Current Output ON/OFF and power up ON/OFF setting Lock and unlock of front panel... -
Page 9: Adjusting Output Voltage And Current
SSP-9080 User manual Adjusting output voltage and current Voltage adjust knob Adjust output voltage Rotate Voltage Knob clockwise to INCREASE output voltage. Rotate Voltage Knob anti-clockwise to REDUCE output voltage. Press Voltage knob to switch between COARSE and FINE adjustment. When press the knob the digit will be high-lighted for tuning. - Page 10 SSP-9080 User manual · Press to confirm setting. If the new UVL value is lower than set output voltage, it will show UVL Error alert. Just reduce the set output voltage to lower than the UVL value. Then the UVL Error will be OFF.
-
Page 11: Select And Adjust 3 Preset Value Of Voltage And Current
SSP-9080 User manual Select and adjust 3 preset value of Voltage and Current This power supply has 3 preset of Voltage and Current value for quick recall to use. Select preset value by press Adjust value of preset After the preset is selected, use Voltage and Current knob to adjust value for that preset program. -
Page 12: Watt-Meter And Amp-Meter Selection
SSP-9080 User manual Watt-meter and Amp-meter selection The lower row 4 digit display can use as Watt-meter or Amp-meter. Select Watt-meter Press LED is ON. Press . If LED is ON, the display is showing output in watt. Select Amp-meter Press LED is ON. -
Page 13: Master/Slave Configuration
SSP-9080 User manual Master/Slave configuration The SSP-9080 and SSP-9081 can be configured for Master/Slave connection either with the same model or in combination of both models. Every slave unit should be assigned an unique Address ID from 1-30. The Master unit must be assigned an Address ID=0 (factory default) The load current is shared equally by all units and the Masterʼs output voltage is the output voltage of all... -
Page 14: Remote Sensing Operation
SSP-9080 User manual Remote sensing operation When the output current is large or long cable to load, there is a voltage drop across the connecting cable such that the voltage at the load point is less than at the output terminal of the power supply. By connecting the Remote Sense terminals to the load point, the voltage reading at the output display and the voltage at the load point will be the same. -
Page 15: Specifications
SSP-9080 User manual Specifications Models SSP-9080 100 – 240V~ Input Voltage Range ≤150mA No Load Input Current at 230V~ ≤500mA Full Load Input Current at 230V~ AC input Frequency 50/ 60 Hz ≥78% Efficiency ≥0.9 Power Factor Constant Voltage and Current Range Selection: Auto range with maximum output power 80W (V x A ≤80W) -
Page 16: Troubleshooting
SSP-9080 User manual Troubleshooting Error Message Description Resolve UVL (Upper Voltage Limit) setting error. Solution 1 - Rotate Volt knob clockwise. Both UVL and Output will be set to new This error message indicates that you try to set a value UVL setting 12V as in the example. - Page 17 SSP-9080 User manual 17 / 17...
