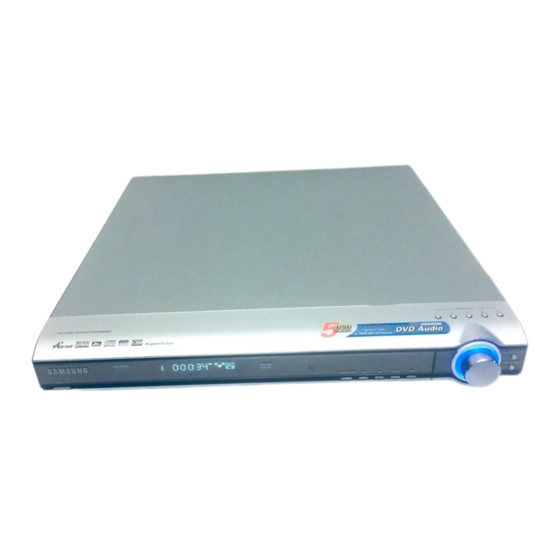

Samsung HT-DS610 Service Manual

Dvd receiver amp
Hide thumbs Also See for HT-DS610:
Table of Contents

Advertisement

Quick Links

Download this manual
All manuals and user guides at all-guides.com
SERVICE
DVD RECEIVER AMP SYSTEM
DVD RECEIVER AMP
HT-DS610
HT-DS630T
HT-DS1860
Manual
CONTENTS
- Confidential -

Advertisement

Table of Contents
loading

Related Manuals for Samsung HT-DS610

Summary of Contents for Samsung HT-DS610

  • Page 1: Table Of Contents

    All manuals and user guides at all-guides.com DVD RECEIVER AMP HT-DS610 HT-DS630T HT-DS1860 SERVICE Manual DVD RECEIVER AMP SYSTEM CONTENTS 1. Alignment and Adjustments 2. Exploded Views and Parts List 3. Disassembly and Reassembly 4. Electrical Parts List 5. Block Diagrams 6.
  • Page 2 All manuals and user guides at all-guides.com ELECTRONICS © Samsung Electronics Co.,Ltd. MAR. 2004 Printed in Korea Code no. AH68-01383P...

  • Page 3: Alignment And Adjustments

    FM S.S.G Output 28 dB(±2dB) 10 kΩ Adjust SVR1 so that “TUNED” of FLT is * AM, LW, SW Band : No Adjustment point lighted (Figure 1-2) *Adjust FM S.S.G level to 28dB Figure1-2 FM Auto Search Level Adjustment Samsung Electronics...

  • Page 4: Exploded Views And Parts List

    All manuals and user guides at all-guides.com 2.Exploded Views and Parts List 2-1 Total Exploded View Samsung Electronics...
  • Page 5 ABS 94HB, NATURAL AH61-01578A HOLDER-MECHA,RE ABS 94HB, NATURAL AH64-02923B DECO-BOTTOM,L HIPS 94HB, D/GRAY AH64-02924B DECO-BOTTOM,R HIPS 94HB, D/GRAY AH64-02936A CABINET-BOTTOM SECC 0.8T AH61-01600A BRKT-TUNER SECC 1.0T AH63-00733A SHEET-SMPS PC 0.5T, BLACK AH61-40014A SUPPORT-RIVET PP BLACK AH61-01579A HOLDER-H/SINK ABS + GF30% Samsung Electronics...
  • Page 6 FF-050SK-11170 AH66-00223A WIRE-MONO UL1571 #28, 80mm AH66-00207A GEAR-WORM POM(N109/LG), BLK AH66-00210A SHAFT-WORM SUS 303 Ø2.0 AH66-00222A PULLEY-WORM POM(N109/LG), BLK AH63-00525A TRAY-DISK ABS(SR0320V/CHEIL), DARK GRAY(8C253) AH63-00526A FELT-ROULETTE FELT, 9*4*1.1t AH63-00527A FELT-LOADING PORON, 10*20* 1.5t AH63-00528A ROULETTE-DISK ABS(SR0320V/CHEIL), DARK GRAY(8C253) Samsung Electronics...
  • Page 7 All manuals and user guides at all-guides.com 2-3 SPEAKER Composite View 2-3-1 HT-DS610 * CAUTION : The NET FRAME(or FRONT PANEL ASS’Y) uses bonding to connect to CABINET ASS’Y. The extreme care not to damage the SPEAKER during disassembly. Samsung Electronics...
  • Page 8 All manuals and user guides at all-guides.com 2-3-2 HT-DS630T * CAUTION : The NET FRAME(or FRONT PANEL ASS’Y) uses bonding to connect to CABINET ASS’Y. The extreme care not to damage the SPEAKER during disassembly. Samsung Electronics...
  • Page 9 All manuals and user guides at all-guides.com 2-3-3 HT-DS1860 FRONT REAR CENTER Samsung Electronics...

  • Page 10: Disassembly And Reassembly

    1. Turn up the SET and insert the thin pole in the half-moon type Hall of CABINET BOTTOM. 2. Press the TRAY OPEN manual lever 15 times with thin poles toward the OPEN direction as indicated in CABINET BOTTOM to lower the CD DECK. Samsung Electronics...
  • Page 11 2. Unfasten 4 SCREW 3 and lift the back of MECHA to separate 2 connectors. 3. Slightly lift the front, right and left of TRAY to rotate the door, and lift the back of DVD MECHA to separate while the door opens. 4. Separate connector 1. Samsung Electronics...
  • Page 12 3-5. Separate FRONT 1. Separate the connector connected to the FRONT. 2. Unfasten 2 SCREW 4 and 4 SCREW 5. 3. Turn over the hook at 2 places of sides and 2 places of bottom and separate the FRONT. Samsung Electronics...

  • Page 13: Electrical Parts List

    4. Electrical Parts List Location no. Code no. Description & Specification Remarks Location no. Code no. Description & Specification Remarks MR25 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 MR22 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 HT-DS610 Parts List DR72 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 ***** ***** DR61 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 DR57 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 3809-001297 CABLE-FLAT;30V,80C,70MM,13P,1.25MM,UL289...
  • Page 14 C-CER,CHIP;220nF,+80-20%,16V,Y5V,TP,1608 2402-001042 C-AL,SMD;100uF,20%,16V,GP,TP,6.6x6.6x5. MC41 2203-001636 C-CER,CHIP;0.033nF,5%,50V,NP0,TP,1608 2402-001049 C-AL,CHIP;10uF,20%,16V,GP,TP,3.3x3.3x5.4 MC40 2203-001636 C-CER,CHIP;0.033nF,5%,50V,NP0,TP,1608 PC11 2402-001049 C-AL,CHIP;10uF,20%,16V,GP,TP,3.3x3.3x5.4 MC39 2203-001636 C-CER,CHIP;0.033nF,5%,50V,NP0,TP,1608 MC10 2402-001049 C-AL,CHIP;10uF,20%,16V,GP,TP,3.3x3.3x5.4 2203-001656 C-CER,CHIP;0.47nF,5%,50V,NP0,TP,1608 2402-001059 C-AL,SMD;220UF,20%,6.3V,-,TP,6X6.6X6.6 2203-001656 C-CER,CHIP;0.47nF,5%,50V,NP0,TP,1608 PC10 2402-001059 C-AL,SMD;220UF,20%,6.3V,-,TP,6X6.6X6.6 2203-001656 C-CER,CHIP;0.47nF,5%,50V,NP0,TP,1608 2402-001059 C-AL,SMD;220UF,20%,6.3V,-,TP,6X6.6X6.6 MC26 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 2801-004284 CRYSTAL-SMD;27MHZ,10PPM,28-AAN,20PF,30OH Samsung Electronics...
  • Page 15 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM AH81-01439R A/S PART-GRILL;PSDS610E,-,-,PUNCHING GRI UR72 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM AH81-01439T A/S PART-CARTON BOX;PSCS610E,-,-,CARTON UR53 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM AH92-02051A ASSY PCB;HT-DS610,MAIN PCB ASSY 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM OPT1 0603-001149 OPTIC TRANSMITTER;5V,12MB/S,20M,-,700NM, AR3R 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM OIC2 0801-002518 IC-CMOS LOGIC;74LCX157,2-INPUT MULTIPLEX AR3L 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM...
  • Page 16 VR13 2001-000645 R-CARBON;330KOHM,5%,1/8W,AA,TP,1.8X3.2M 2701-000114 INDUCTOR-AXIAL;10UH,10%,2534 VR16 2001-000645 R-CARBON;330KOHM,5%,1/8W,AA,TP,1.8X3.2M JW228 3301-000297 BEAD-AXIAL;25ohm,3.6x1.2x5.7mm,,TP,,, VR17 2001-000645 R-CARBON;330KOHM,5%,1/8W,AA,TP,1.8X3.2M UR211 2001-000660 R-CARBON;33KOHM,5%,1/8W,AA,TP,1.8X3.2MM AH92-02052A ASSY PCB;HT-DS610,FRONT PCB ASSY AR6L 2001-000702 R-CARBON;39KOHM,5%,1/8W,AA,TP,1.8X3.2MM ZLED2 0601-001432 LED;ROUND,BLUE,3mm,455nm AR6R 2001-000702 R-CARBON;39KOHM,5%,1/8W,AA,TP,1.8X3.2MM ZLED3 0601-001432 LED;ROUND,BLUE,3mm,455nm 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M OJACK1 0603-001149 OPTIC TRANSMITTER;5V,12MB/S,20M,-,700NM, 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M...
  • Page 17 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 SW13 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST R149 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 SW12 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST R148 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 R2RL 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 AH92-02053A ASSY PCB;HT-DS610,AMP PCB ASSY R2RR 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 2003-000777 R-METAL OXIDE(S);68ohm,5%,2W,AA,TP,4x12m 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 2401-000118 C-AL;1000uF,20%,10V,GP,TP,10x12.5,5 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 2401-003564 C-AL;1000uF,20%,35V,LZ,TP,12.5X25mm R2FR 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608...
  • Page 18 2203-005171 C-CER,CHIP;1uF,10%,16V,X7R,TP,2012,- C136 2401-001355 C-AL;470uF,20%,10V,GP,TP,8x11.5mm,5 2203-005171 C-CER,CHIP;1uF,10%,16V,X7R,TP,2012,- C135 2401-001355 C-AL;470uF,20%,10V,GP,TP,8x11.5mm,5 C19S 2203-005171 C-CER,CHIP;1uF,10%,16V,X7R,TP,2012,- C178 2401-001364 C-AL;470uF,20%,16V,GP,TP,10x12.5,5 C19RR 2203-005171 C-CER,CHIP;1uF,10%,16V,X7R,TP,2012,- 2401-001538 C-AL;47uF,20%,25V,GP,TP,5x11mm,5mm C19RL 2203-005171 C-CER,CHIP;1uF,10%,16V,X7R,TP,2012,- HC8R 2401-001893 C-AL;100uF,20%,16V,GP,TP,6.3x7,5 C19FR 2203-005171 C-CER,CHIP;1uF,10%,16V,X7R,TP,2012,- HC8L 2401-001893 C-AL;100uF,20%,16V,GP,TP,6.3x7,5 C19FL 2203-005171 C-CER,CHIP;1uF,10%,16V,X7R,TP,2012,- 2401-001975 C-AL;47uF,20%,16V,GP,TP,5x11mm,5mm Samsung Electronics...
  • Page 19 All manuals and user guides at all-guides.com Location no. Code no. Description & Specification Remarks Location no. Code no. Description & Specification Remarks 2401-001975 C-AL;47uF,20%,16V,GP,TP,5x11mm,5mm HL1R 2703-000404 INDUCTOR-SMD;220uH,10%,3225 HL1L 2703-000404 INDUCTOR-SMD;220uH,10%,3225 3301-001069 BEAD-SMD;1.6x0.8x0.8mm,-,- 3301-001069 BEAD-SMD;1.6x0.8x0.8mm,-,- 3301-001069 BEAD-SMD;1.6x0.8x0.8mm,-,- 3301-001069 BEAD-SMD;1.6x0.8x0.8mm,-,- Samsung Electronics...

  • Page 20: Block Diagrams

    All manuals and user guides at all-guides.com 5. Block Diagram 5-1 MAIN Part Samsung Electronics...
  • Page 21 All manuals and user guides at all-guides.com 5-2 DVD Part Samsung Electronics...

  • Page 22: Wiring Diagram

    All manuals and user guides at all-guides.com 6. Wiring Diagram Samsung Electronics...

  • Page 23: Schematic Diagrams

    All manuals and user guides at all-guides.com 7. Schematic Diagram - This Document can not be used without Samsung’s authorization - 7-1-1 MAIN (OLD VERSION) Samsung Electronics...
  • Page 24 All manuals and user guides at all-guides.com 7-1-2 MAIN (NEW VERSION) - This Document can not be used without Samsung’s authorization - Samsung Electronics...
  • Page 25 All manuals and user guides at all-guides.com 7-2 FRONT - This Document can not be used without Samsung’s authorization - Samsung Electronics...
  • Page 26 All manuals and user guides at all-guides.com 7-3 AMP - This Document can not be used without Samsung’s authorization - Samsung Electronics...
  • Page 27 All manuals and user guides at all-guides.com 7-4 SMPS - This Document can not be used without Samsung’s authorization - Samsung Electronics...
  • Page 28 All manuals and user guides at all-guides.com 7-5 TUNER - This Document can not be used without Samsung’s authorization - Samsung Electronics...
  • Page 29 All manuals and user guides at all-guides.com 7-6 DVD PACK - This Document can not be used without Samsung’s authorization - Samsung Electronics...

  • Page 30: Ic Block Diagrams

    All manuals and user guides at all-guides.com 8. IC Block Diagrams 8-1 Main 8-1-1. FAN8082 Samsung Electronics...
  • Page 31 All manuals and user guides at all-guides.com 8-1-2. MAX232 Samsung Electronics...
  • Page 32 All manuals and user guides at all-guides.com 8-1-3. TAS5121 Samsung Electronics...
  • Page 33 All manuals and user guides at all-guides.com 8-1-4. S5G5128A Samsung Electronics...
  • Page 34 All manuals and user guides at all-guides.com Samsung Electronics...
  • Page 35 All manuals and user guides at all-guides.com 8-1-5. PS9818 8-1-6. WM8775 Samsung Electronics...
  • Page 36 All manuals and user guides at all-guides.com 8-2 DVD 8-2-1. A29L160 8-2-2. ESMT_M12L128168A Samsung Electronics...
  • Page 37 All manuals and user guides at all-guides.com 8-2-3. 74HCT245 8-2-4. S524C20D21_20D41 Samsung Electronics...
  • Page 38 All manuals and user guides at all-guides.com 8-2-5. STM_74LCX157 8-2-6. STM_74LCX244 Samsung Electronics...
  • Page 39 All manuals and user guides at all-guides.com 8-2-7. STM_74LCX374 8-10 Samsung Electronics...
  • Page 40 All manuals and user guides at all-guides.com MICOM PORT ASSIGNMENT Samsung Electronics 8-11...

  • Page 41: Troubleshooting

    All manuals and user guides at all-guides.com 9. TroubleShooting 9-1 Main Samsung Electronics...
  • Page 42 All manuals and user guides at all-guides.com Samsung Electronics...
  • Page 43 All manuals and user guides at all-guides.com 9-2 DVD SERVO parts Samsung Electronics...
  • Page 44 All manuals and user guides at all-guides.com Samsung Electronics...
  • Page 45 All manuals and user guides at all-guides.com Samsung Electronics...
  • Page 46 All manuals and user guides at all-guides.com Samsung Electronics...
  • Page 47 All manuals and user guides at all-guides.com Samsung Electronics...
  • Page 48 All manuals and user guides at all-guides.com Samsung Electronics...
  • Page 49 All manuals and user guides at all-guides.com Samsung Electronics...
  • Page 50 All manuals and user guides at all-guides.com 9-3 DVD MPEG Parts Samsung Electronics 9-10...
  • Page 51 All manuals and user guides at all-guides.com 9-11 Samsung Electronics...
