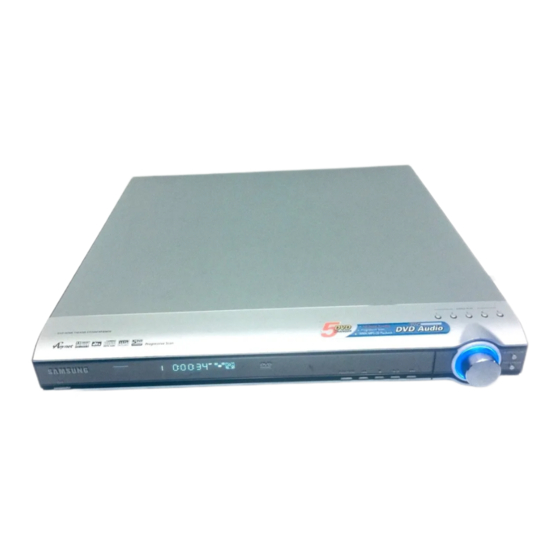

DVD RECEIVER AMP HT-DS610 HT-DS630T HT-DS1860 SERVICE Manual DVD RECEIVER AMP SYSTEM CONTENTS 1. Alignment and Adjustments 2. Exploded Views and Parts List 3. Disassembly and Reassembly 4. Electrical Parts List 5. Block Diagrams 6. Wiring Diagram 7. Schematic Diagrams 8.
FM IN Output 28 dB(±2dB) 10 kΩ Adjust SVR1 so that “TUNED” of FLT is * AM, LW, SW Band : No Adjustment point lighted (Figure 1-2) *Adjust FM S.S.G level to 28dB Figure1-2 FM Auto Search Level Adjustment Samsung Electronics...
Page 7
2-3 SPEAKER Composite View 2-3-1 HT-DS610 * CAUTION : The NET FRAME(or FRONT PANEL ASS’Y) uses bonding to connect to CABINET ASS’Y. The extreme care not to damage the SPEAKER during disassembly. Samsung Electronics...
Page 8
2-3-2 HT-DS630T * CAUTION : The NET FRAME(or FRONT PANEL ASS’Y) uses bonding to connect to CABINET ASS’Y. The extreme care not to damage the SPEAKER during disassembly. Samsung Electronics...
Page 9
2-3-3 HT-DS1860 FRONT REAR CENTER Samsung Electronics...
1. Turn up the SET and insert the thin pole in the half-moon type Hall of CABINET BOTTOM. 2. Press the TRAY OPEN manual lever 15 times with thin poles toward the OPEN direction as indicated in CABINET BOTTOM to lower the CD DECK. Samsung Electronics...
Page 11
2. Unfasten 4 SCREW 3 and lift the back of MECHA to separate 2 connectors. 3. Slightly lift the front, right and left of TRAY to rotate the door, and lift the back of DVD MECHA to separate while the door opens. 4. Separate connector 1. Samsung Electronics...
Page 12
3-5. Separate FRONT 1. Separate the connector connected to the FRONT. 2. Unfasten 2 SCREW 4 and 4 SCREW 5. 3. Turn over the hook at 2 places of sides and 2 places of bottom and separate the FRONT. Samsung Electronics...
