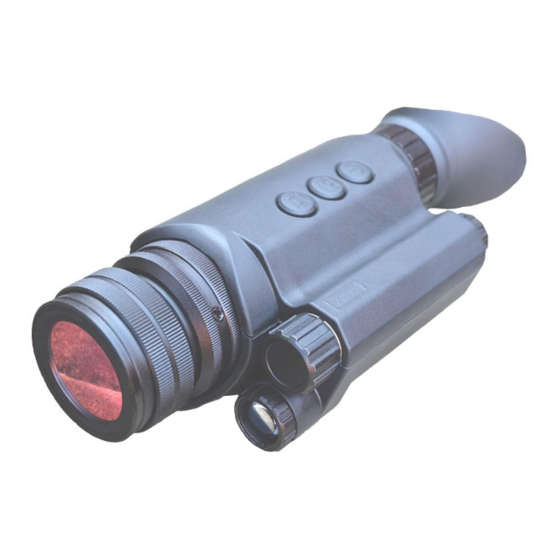

- Page 1 LN-G3-M44 GEN-3 HD DIGITAL TECHNOLOGY DAY & NIGHT MONOCULAR 5-30x44 INSTRUCTION MANUAL SOFTWARE VERSION M5/2021/06/17 IMPORTANT: Please read this manual in its entirety prior to using this device!
- Page 2 4. For more details on how to operate your viewer, please read this manual completely to ensure proper operation. YOUR SYSTEM INCLUDES THE FOLLOWING: 1. LN-G3-M44 Monocular 2. 8GB Micro SD-card (installed into the SD-card slot) 3. Color Enhancing Filter (installed onto the front lens – daylight use only –...
- Page 3 Please identify all the parts of the device PRIOR to operation! (50mm lens shown, 44mm version is identical in all parts except the lens size) 11-a 11-b 11-c...
-
Page 4: Installing The Batteries
GLOSSARY: 1 – Objective Lens Focusing Wheel 8 – Folding Eyecup 2 – IMAGE Button 9 – Menu Super Controller 3 – CAMERA Button 10 – Power / IR Indicator Lights 4 – POWER & IR Button 11 – Connection Area: 5 –... -
Page 5: Turning The Unit On And Off
TURNING THE UNIT ON AND OFF: Your night vision unit has one-touch push-buttons. To turn the unit ON, press the POWER Button (4) momentarily once. The LED Power Indicator (10) located on the back of the unit should light up in green color. Look through the eyecup (8) –... - Page 6 OPERATING FROM A USB POWER BANK: Your digital viewer can also operate from the commonly available 5V USB Power Bank chargers. Please make sure the output of the Power Bank is at least 2A, otherwise it may fail to power the unit especially when the IR illuminator is activated.
- Page 7 MAIN MENU consists of the following selections: MODE: Video: this mode allows you to record videos when CAMERA button (3) is pressed during operation Photo: this mode allows you to capture still images when CAMERA button (3) is pressed during operation Playback: this mode allows you to playback videos and photos stored on your SD card RESOLUTION:...
-
Page 8: Image Button
magnification rotate the Menu Super Controller (9) to the right (clockwise) and look into the ocular – you will see the image magnification increase with each rotation click by a certain increment. See next the magnification chart according to each rotation: 5x –... -
Page 9: Setting Up Date And Time
SETTING UP DATE AND TIME: As your viewer has capability to take images and record video, time and date is automatically stamped onto each image and video recording. To set the correct date and time, please follow this procedure: Turn the unit ON. After image appears, press onto the Super Controller (9) and hold it for approximately 2 seconds to activate the menu. -
Page 10: Important: Please Read
and most powerful) the next momentary press on the IR button will turn the IR off completely. The red LED light indicator (10) will disappear when the IR illuminator is properly turned off. When using the infrared illuminator it is important to remember that like a flashlight, it is brightest when used in short distances. -
Page 11: Brightness Adjustment
steps to minimize this effect and ensure the best possible image and video recording quality: During nighttime and in any dark condition always activate built-in IR illuminator – it will provide extra light needed for the image sensor to “speed up” its refresh rate and image delay will be minimized. During nighttime you need to remove the daylight color enhancing filter –... - Page 12 To take a still image, focus the unit onto the object you are viewing and with a steady hand firmly press the CAMERA button (3) once. The display will give a countdown (2-1) in the upper left corner and then image is taken and is automatically stored onto the SD card.
- Page 13 You can connect the unit directly to the computer via USB connection by utilizing the micro-USB connector (11-b). To do so, connect the micro-USB part to the unit, then connect the standard USB part to the computer. Device does not need to be powered. It will power up once connected. Look through the eyepiece –...
- Page 14 Highlight the correct disc by single-click and then choose on the bottom left side of the menu to “Format Partition” (alternatively right- click on the highlighted disc and choose the same function). A pop-up window will appear. You can label your partition (such as “Luna Optics...
-
Page 15: Troubleshooting
Monocular” or any other name you desire (it’s optional) and then make sure to select “FAT32” as the File System. Then click “OK”. Once the format is finished, click on “Apply” located in the most upper left corner. You must select “Apply” otherwise the formatting is not finished. -
Page 16: Technical Specifications
External Power _____________________________________ 5V/2A micro-USB Operating Time (battery power) _______________________________3-3.5hrs External outputs ______________________________ micro-HDMI / micro-USB Dimensions_____________________165mm x 80mm x 63mm (6.5”x3.1”x2.5”) Weight________________________________________________ 500g (17 Oz) Warranty______________________________________________________1yr ---------------------------------------------------------------------------------------------------------- LUNA OPTICS, INC. 300 Hawthorn Dr., Fate, TX 75087 (USA) E-mail: info@lunaoptics.com Web: www.lunaoptics.com © 2021...
