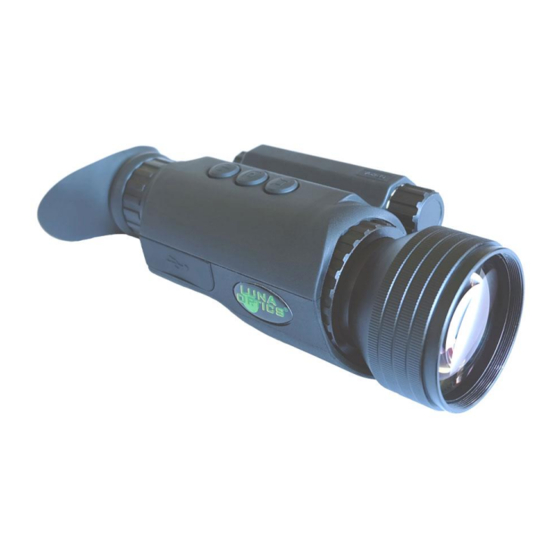

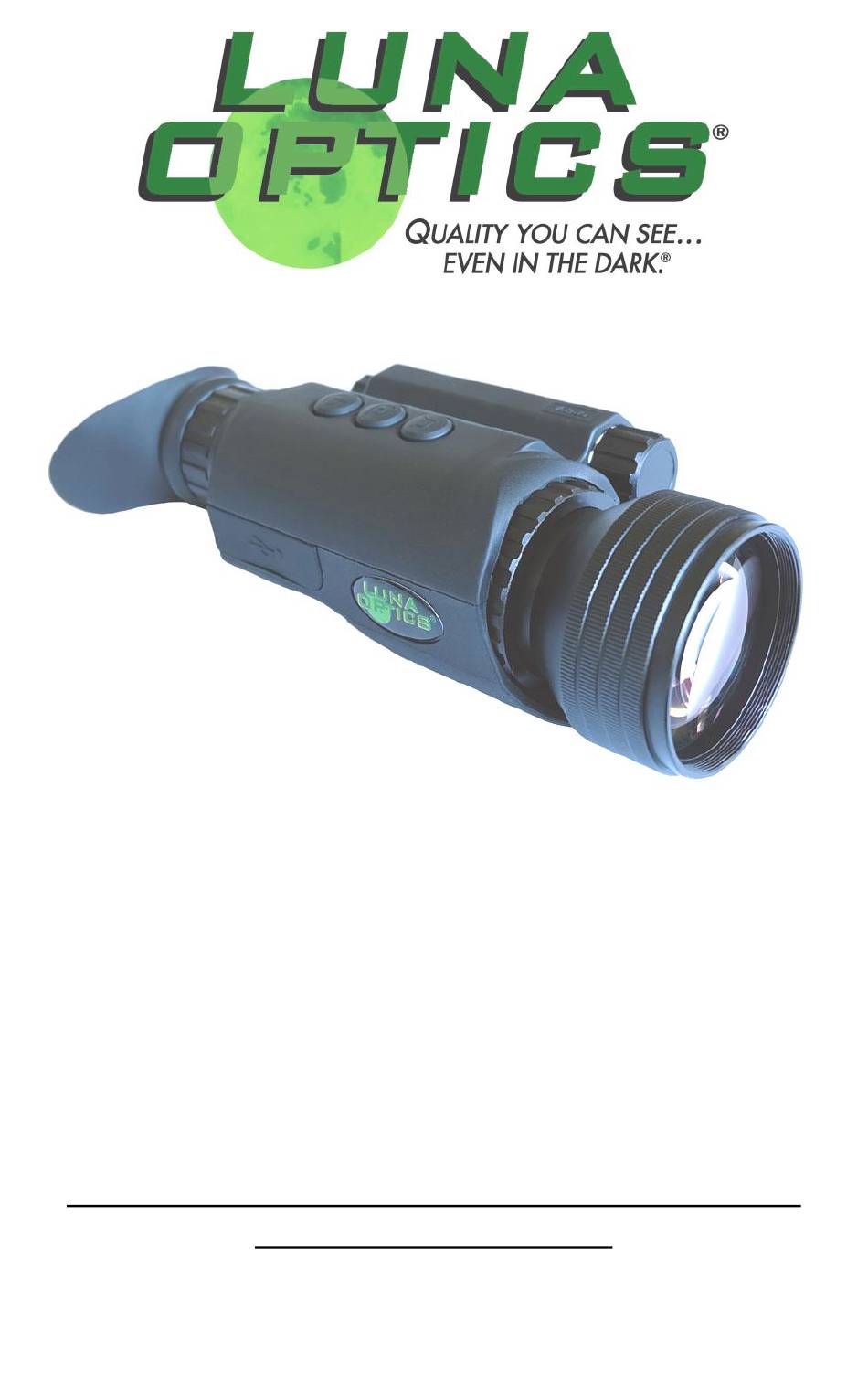

- Page 1 LN-G3-M HIGH DEFINITION DIGITAL DAY & NIGHT VIEWER INSTRUCTION MANUAL IMPORTANT: Please read this manual in its entirety prior to using this device!
- Page 2 4. For more details on how to operate your viewer, please read this manual completely to ensure proper operation. YOUR SYSTEM INCLUDES THE FOLLOWING: 1. LN-G3-M High Definition Viewer 2. 8GB Micro SD-card (installed into the SD-card slot) 3. Color Enhancing Filter (installed onto the front lens – daylight use only –...
- Page 3 Please identify all the parts of the device PRIOR to operation! 11-a 11-b 11-c...
-
Page 4: Installing The Batteries
GLOSSARY: 1 – Objective Lens Focusing Wheel 8 – Folding Eyecup 2 – IMAGE Button 9 – Menu Super Controller 3 – CAMERA Button 10 – Power / IR Indicator Lights 4 – POWER & IR Button 11 – Connection Area: 5 –... -
Page 5: Turning The Unit On And Off
TURNING THE UNIT ON AND OFF: Your night vision unit has one-touch push-buttons. To turn the unit ON, press the POWER Button (4) momentarily once. The LED Power Indicator (10) located on the back of the unit should light up in green color. - Page 6 SUPER CONTROLLER / MENU FUNCTIONS: Your monocular features a unique and user-friendly adjustment called Super Controller (9). It incorporates various operating functions and makes navigating and adjusting menu functions fast, easy and natural without having to take your eyes off the eyepiece in the field. It is especially useful when using in the dark conditions where button location may be particularly difficult.
- Page 7 NIGHT VISION: Normal: Image is displayed in Full-Color (best for daytime or well-lit room – keep the red filter on the front lens) B&W: Image is B&W (good for nighttime city setting) Green: Image is traditional night vision green (good for nighttime field use) WI-FI: ON: Turns the Wi-Fi signal ON.
-
Page 8: Setting Up Date And Time
SHORTCUTS (MULTIPLE BUTTON FUNCTIONS): The three top buttons can be used to skip the main menu navigation and provide quick shortcuts to the most popular functions: POWER & IR BUTTON (4): a) Initial short-press – turns the power ON b) When power is ON, single short press activates power level of IR illuminator. - Page 9 by momentarily pressing onto it. To adjust the numbers, rotate the Super Controller in either direction. To switch between numbers, press onto Super Controller momentarily. After Date is set, adjust the time. Time is in 24hr format, so 13:00 is 1pm; 17:30 is 5:30pm and so on. As with the date, changing hours and minutes is done by rotating the Super Controller and moving between hours and minutes is done by pressing onto it.
-
Page 10: Important: Please Read
Extended range IR illuminators are available (model LN-EIR-2, or LN- ELIR-2), which can be mounted into the single (black) bottom accessory mount socket. The thread is a standard ¼” type and will accept any accessory with mounting screw of that size. If the black bottom mount is utilized for tripod mounting, you can utilize any of the two gold sockets. -
Page 11: Brightness Adjustment
BRIGHTNESS ADJUSTMENT: Your digital viewer is equipped with dual image brightness control. An automatic picture optimization sensor adjusts the image according to the available ambient and artificial light. In addition a manual Image Brightness Button (2) allows you to fine-tune the image brightness to the most comfortable level. - Page 12 different distances. There are 4 different video recording resolution options: 1. FULL-HD 1080P / 30FPS: Blue-Ray quality recording. Best for recording in daylight with color filter on when highest video resolution is necessary. Also good for recording at nighttime without the color filter, when monocular is stationary on a tripod and no sudden movements are expected 2.
- Page 13 computer has a direct micro-SD slot, you can insert the card directly to the slot bypassing the above options. It is also possible to utilize the full-size SD card adapter (not included with monocular). To replace the micro-SD card gently push it into the slot (11-a) until it clicks and stays in CONNECTING TO EXTERNAL VIDEO SOURCE: You can connect your device to the HD source, such as HDTV or monitor via the micro-HDMI cable (included with your device).
- Page 14 7. Follow on screen menu on your mobile phone to utilize the available features of the app. NOTE: during Wi-Fi streaming the ZOOM and MENU functions are disabled and cannot be utilized! 8. During Wi-Fi streaming single press onto the Super Controller activates either Video or Photo capture.
-
Page 15: Troubleshooting
A pop-up window will appear. You can label your partition (such as “Luna Optics Monocular” or any other name you desire (it’s optional) and then make sure to select “FAT32” as the File System. -
Page 16: Technical Specifications
External Power _____________________________________ 5V/2A micro-USB Operating Time (battery power) _______________________________3-3.5hrs External outputs ______________________________ micro-HDMI / micro-USB Dimensions_____________________170mm x 80mm x 63mm (6.7”x3.1”x2.5”) Weight________________________________________________ 510g (17 Oz) Warranty______________________________________________________1yr -------------------------------------------------------------------------------------------------------- LUNA OPTICS, INC. 300 Hawthorn Dr., Fate, TX 75087 (USA) E-mail: info@lunaoptics.com Web: www.lunaoptics.com © 2019...
