SERVICE MANUAL
2 S ERVICE MANUAL

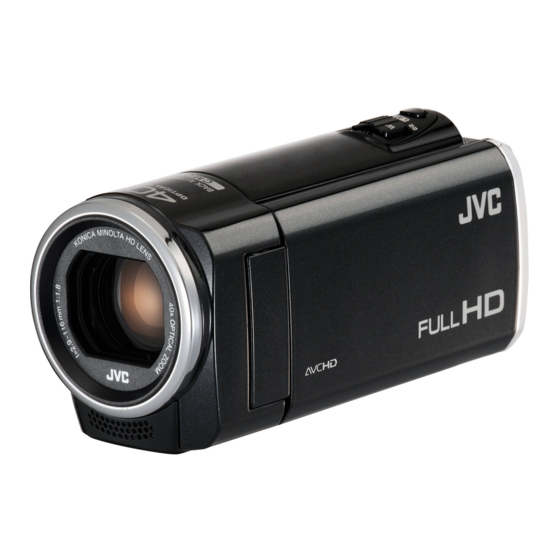

EVERIO-S-HD
YF436<Rev.001>
2013
GZ-E100BUA, GZ-E100BUB
COPYRIGHT © 2013 JVC KENWOOD Corporation
Lead free solder used in the board (material: Sn-Ag-Cu, melting point: 219 Centigrade)
This service manual (No.YF436< Rev.001 >) describes only the items which differ from those of already issued service manual
(No.YF431< Rev.001 >)
1
PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
2
SPECIFIC SERVICE INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
3
DISASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
4
ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-17
5
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-19
All manuals and user guides at all-guides.com
CAMCORDER
GZ-E100BUAM, GZ-E100BUBM [C3A111]

TABLE OF CONTENTS

COPYRIGHT © 2013 JVC KENWOOD Corporation
SERIES
C3A1
No.YF436<Rev.001>
2013/2

Advertisement

loading
Need help?

Need help?

Do you have a question about the GZ-E100BUA and is the answer not in the manual?

Questions and answers

Related Manuals for JVC GZ-E100BUA

Summary of Contents for JVC GZ-E100BUA

  • Page 1: Table Of Contents

    C3A1 GZ-E100BUAM, GZ-E100BUBM [C3A111] COPYRIGHT © 2013 JVC KENWOOD Corporation Lead free solder used in the board (material: Sn-Ag-Cu, melting point: 219 Centigrade) This service manual (No.YF436< Rev.001 >) describes only the items which differ from those of already issued service manual (No.YF431<...

  • Page 2: Precautions

    SECTION 1 PRECAUTIONS SAFETY PRECAUTIONS Prior to shipment from the factory, JVC products are strictly can increase the high voltage value and cause X-ray emis- inspected to conform with the recognized product safety and sion from the cathode ray tube.
  • Page 3 All manuals and user guides at all-guides.com 1.1.2 Safety Check after Servicing Examine the area surrounding the repaired location for damage (4) Leakage current test or deterioration. Observe that screws, parts and wires have been Confirm specified or lower leakage current between earth returned to original positions, Afterwards, perform the following ground/power cord plug prongs and externally exposed tests and confirm the specified values in order to verify...

  • Page 4: Specific Service Instructions

    All manuals and user guides at all-guides.com SECTION 2 SPECIFIC SERVICE INSTRUCTIONS DIFFERENCE LIST MODEL GZ-E100BUA GZ-E100BUB AC CORD IRAM TYPE BRAZIL TYPE 1-4 (No.YF436<Rev.001>)

  • Page 5: Disassembly

    All manuals and user guides at all-guides.com SECTION 3 DISASSEMBLY Disassembly procedure Fig.3-1-1 (No.YF436<Rev.001>)1-5...
  • Page 6 All manuals and user guides at all-guides.com Fig.3-1-2 1-6 (No.YF436<Rev.001>)
  • Page 7 All manuals and user guides at all-guides.com Fig.3-1-3 (No.YF436<Rev.001>)1-7...
  • Page 8 All manuals and user guides at all-guides.com Fig.3-1-4 1-8 (No.YF436<Rev.001>)
  • Page 9 All manuals and user guides at all-guides.com Fig.3-1-5 (No.YF436<Rev.001>)1-9...
  • Page 10 All manuals and user guides at all-guides.com Fig.3-1-6 1-10 (No.YF436<Rev.001>)
  • Page 11 All manuals and user guides at all-guides.com Fig.3-1-7 (No.YF436<Rev.001>)1-11...
  • Page 12 All manuals and user guides at all-guides.com Fig.3-1-8 1-12 (No.YF436<Rev.001>)
  • Page 13 All manuals and user guides at all-guides.com Fig.3-1-9 (No.YF436<Rev.001>)1-13...
  • Page 14 All manuals and user guides at all-guides.com Fig.3-1-10 1-14 (No.YF436<Rev.001>)
  • Page 15 All manuals and user guides at all-guides.com Fig.3-1-11 (No.YF436<Rev.001>)1-15...
  • Page 16 All manuals and user guides at all-guides.com Fig.3-1-12 1-16 (No.YF436<Rev.001>)

  • Page 17: Adjustment

    All manuals and user guides at all-guides.com SECTION 4 ADJUSTMENT PREPARATION • 4.1.1 Precaution Torque Driver This model is specially adjusted by using PC. Be sure to use to fastening the mechanism and exterior parts However, if parts such as the following are replaced, an because those parts must strictly be controlled for tightening adjustment is required.
  • Page 18 All manuals and user guides at all-guides.com JIG CONNECTOR CABLE CONNECTION Connection procedure Remove the 3 screws (1-3), and then remove the TOP COVER ASSY. TOP COVER ASSY CN9003 CONNECTOR CABLE SERVICE SUPPORT SYSTEM (Software) MENU PC CABLE PERSONAL COMPUTER 1-18 (No.YF436<Rev.001>)

  • Page 19: Troubleshooting

    All manuals and user guides at all-guides.com SECTION 5 TROUBLESHOOTING This service manual does not describe TROUBLESHOOTING. (No.YF436<Rev.001>)1-19...
  • Page 20 All manuals and user guides at all-guides.com <BOARD INTERCONNECTIONS> O P E R A T I O N C M O S P W B ZOOM O P B L O C K ( A 2 W N ) SPEAKER SNAP Trigger C N 4 0 0 1...
  • Page 21 All manuals and user guides at all-guides.com <MAIN(MAIN IF) SCHEMATIC DIAGRAM> Note : The parts numbers in the schematic diagram are for references only. When replacing the parts, refer to the PARTS LIST. L E D S P K M I C TELE,WIDE,PHOTO-KEY,TRIGGER,GND # CN9006 QGF0543F3-06X...
  • Page 22 All manuals and user guides at all-guides.com <MAIN(SUB CPU) SCHEMATIC DIAGRAM> Note : The parts numbers in the schematic diagram are for references only. When replacing the parts, refer to the PARTS LIST. LIT_3.0V R1014 LIT_3.0V AL_2.8V AL_2.8V REG_2.8V R1063 REG_2.8V R1064 C1001...
  • Page 23 All manuals and user guides at all-guides.com <MAIN(AUDIO) SCHEMATIC DIAGRAM> Note : The parts numbers in the schematic diagram are for references only. When replacing the parts, refer to the PARTS LIST. From REG REG_3.3V Q2462 LSCR523EB-X REG_5.0V REG_2.8V REG_1.8V R2462 4.7k From/to PAN/TILL SW...
  • Page 24 All manuals and user guides at all-guides.com <MAIN(FELIX) SCHEMATIC DIAGRAM> Note : The parts numbers in the schematic diagram are for references only. When replacing the parts, refer to the PARTS LIST. M A I N P W B OPEN C3079 MENU MENU...
  • Page 25 All manuals and user guides at all-guides.com <MAIN(AUTO) SCHEMATIC DIAGRAM> Note : The parts numbers in the schematic diagram are for references only. When replacing the parts, refer to the PARTS LIST. A2WN C N 4 6 0 2 Q G F 0 5 4 3 F 3 - 1 4 X Z O O M 0 2 Z O O M 0 2 Z O O M 0 3...
  • Page 26 All manuals and user guides at all-guides.com <MAIN(REG) SCHEMATIC DIAGRAM> Note : The parts numbers in the schematic diagram are for references only. When replacing the parts, refer to the PARTS LIST. MODEL C3A2(WIFI) C3A1(NO-WIFI) SYMBOL NO. NCB20JK-106X OPEN C6307~C6308 ADP_DC R6311 NRSA6AD-204W...
  • Page 27 All manuals and user guides at all-guides.com <MAIN(eMMC) SCHEMATIC DIAGRAM> Note : The parts numbers in the schematic diagram are for references only. When replacing the parts, refer to the PARTS LIST. M A I N P W B # C8011 # C8003 # C8009 AH11...
  • Page 28 All manuals and user guides at all-guides.com <MAIN(WIFI) SCHEMATIC DIAGRAM> Note : The parts numbers in the schematic diagram are for references only. When replacing the parts, refer to the PARTS LIST. WIFI_RST MOD_3.3V_CTRL SFL_IN SFL_SCK # C8501 WIFI_FLASH_DISABLE WIFI_RX WIFI_TX MOD_DN MOD_DN...
  • Page 29 All manuals and user guides at all-guides.com <REAR SCHEMATIC DIAGRAM> Note : The parts numbers in the schematic diagram are for references only. When replacing the parts, refer to the PARTS LIST. R E A R P W B TO MAIN PWB L601 OPEN AV JACK...
  • Page 30 All manuals and user guides at all-guides.com <JACK SCHEMATIC DIAGRAM> Note : The parts numbers in the schematic diagram are for references only. When replacing the parts, refer to the PARTS LIST. J 2 0 1 NNZ0212-001X TO MAIN PWB H D M I C N 2 0 1 QGF0543F3-18X...
  • Page 31 All manuals and user guides at all-guides.com <MONITOR SCHEMATIC DIAGRAM> Note : The parts numbers in the schematic diagram are for references only. When replacing the parts, refer to the PARTS LIST. From Main PWB M O N I T O R P W B CN701 REG_2.8V QGF0574F1-34X...
  • Page 32 All manuals and user guides at all-guides.com <CMOS SCHEMATIC DIAGRAM> Notes : 1. The parts number in the schematic diagram are for references only. When replacing the parts, refer to the PARTS LIST. 2. The schematic diagram is only for reference. Avoid replacing individual parts. Replace the entire unit only.
  • Page 33 All manuals and user guides at all-guides.com <MAIN CIRCUIT BOARD> (Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)) <01>MAIN LYB10352-001A COMPONENT SIDE(B) C9016 CN9003 R9001 R9002 C9005 RA9001 C8003 L8055 R8010 IC8001 Q9001 IC8002 IC8003 C6108...
  • Page 34 All manuals and user guides at all-guides.com <MAIN CIRCUIT BOARD> (Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)) CAUTION : FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, REPLACE ONLY WITH SAME TYPE AND RATED FUSE(S). ATTENTION : POUR UNE PROTECTION PERMANENTE CONTRE LES RISQUE D'INCENDE, REMPLACER LES FUSIBLES PAR UNAAUTRE DE MEME TYPE ET DE MEME TENSION.
  • Page 35 All manuals and user guides at all-guides.com <REAR CIRCUIT BOARD> (Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)) CAUTION : <02>REAR FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, REPLACE ONLY WITH SAME TYPE AND RATED FUSE(S). ATTENTION : LYB10353-001A POUR UNE PROTECTION PERMANENTE CONTRE LES RISQUE D'INCENDE,...
  • Page 36 All manuals and user guides at all-guides.com <MONITOR CIRCUIT BOARD> (Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)) <04>MONITOR LYB10353-001A FOIL SIDE(B) COMPONENT SIDE(A) R750 R749 UL MARK R748 R747 R746 R745 R744 R743 1-LAYER FPC C721...
  • Page 37 All manuals and user guides at all-guides.com JVC KENWOOD Corporation Home & Mobile Electronics Business Group, Imaging Products Business Division 12, 3-chome, Moriya-cho, Kanagawa-ku, Yokohama-city, Kanagawa-prefecture, 221-0022, Japan (No.YF436<Rev.001>) Printed in Japan...
