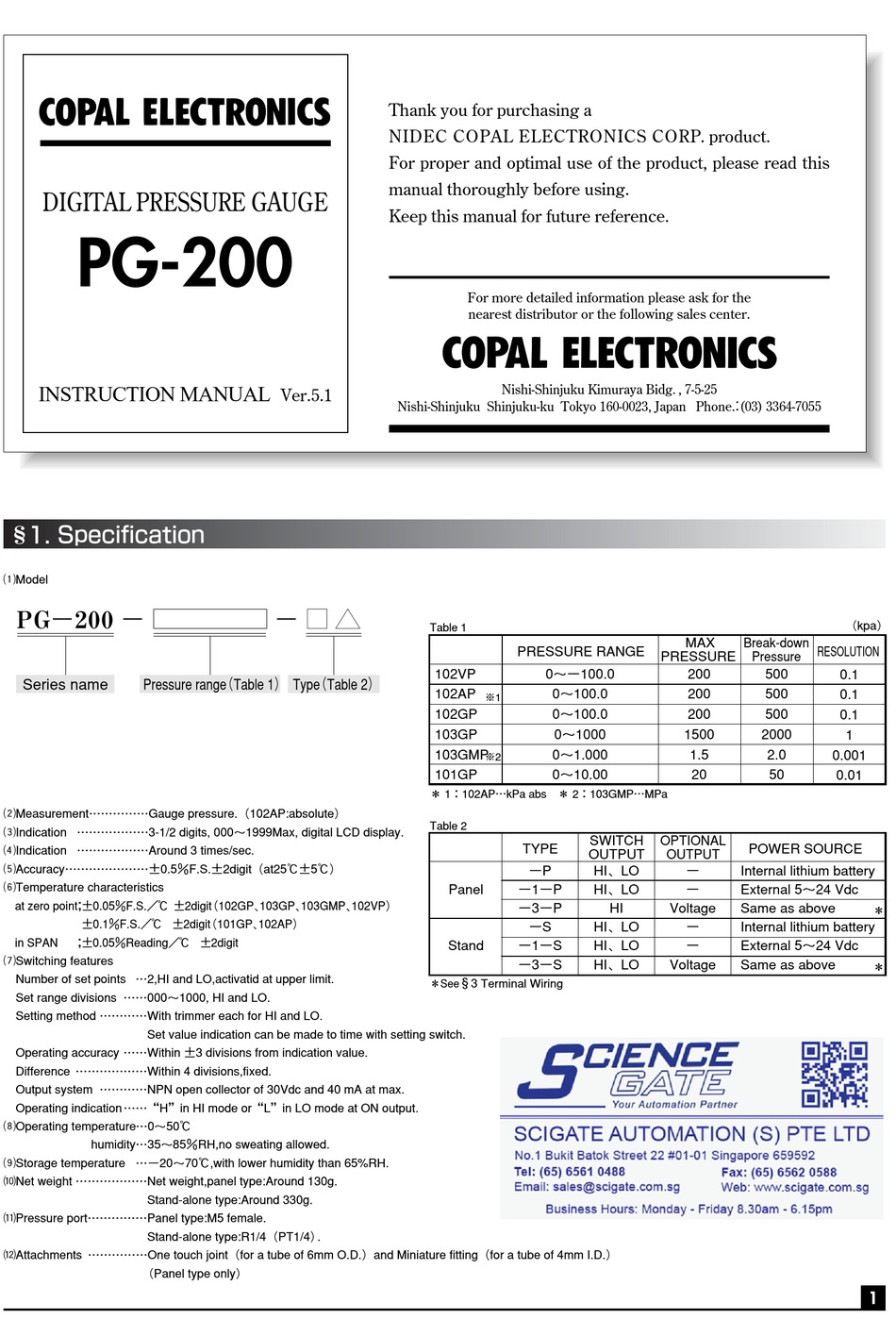

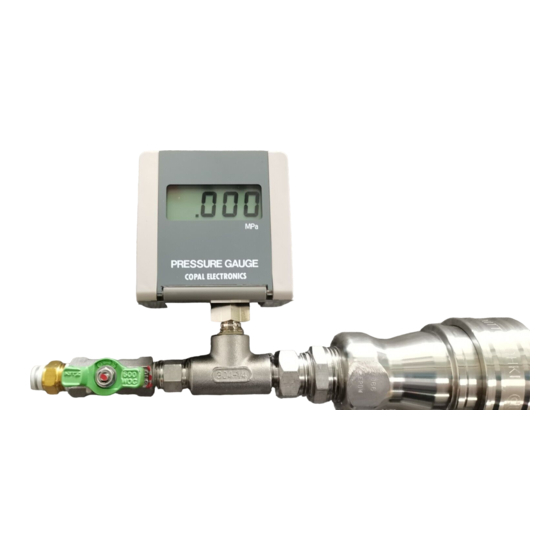

Copal PG-200 Instruction Manual

DIGITAL PRESSURE GAUGE
PG-200
INSTRUCTION MANUAL
1. Specification
§
¸Model
PG−200 − −
Series name Pressure range （ Table 1） Type （Table 2）
¹Measurement...............Gauge pressure.（102AP:absolute）
ºIndication ..................3-1/2 digits, 000〜1999Max, digital LCD display.
»Indication ..................Around 3 times/sec.
¼Accuracy.....................±0.5％F.S.±2digit（at25℃±5℃）
½Temperature characteristics
at zero point ； ±0.05％F.S.／℃ ±2digit （102GP、 103GP、 103GMP、 102VP）
±0.1％F.S.／℃ ±2digit （101GP、 102AP）
in SPAN ； ±0.05％Reading／℃ ±2digit
¾Switching features
Number of set points ...2,HI and LO,activatid at upper limit.
Set range divisions ......000〜1000, HI and LO.
Setting method ............With trimmer each for HI and LO.
Set value indication can be made to time with setting switch.
Operating accuracy ......Within ±3 divisions from indication value.
Difference ..................Within 4 divisions,fixed.
Output system ............NPN open collector of 30Vdc and 40 mA at max.
Operating indication ...... H in HI mode or L in LO mode at ON output.
¿Operating temperature...0〜50℃
humidity...35〜85％RH,no sweating allowed.
ÀStorage temperature ...−20〜70℃,with lower humidity than 65%RH.
ÁNet weight ..................Net weight,panel type:Around 130g.
Stand-alone type:Around 330g.
ÂPressure port...............Panel type:M5 female.
Stand-alone type:R1/4（PT1/4） .
ÃAttachments ...............One touch joint（for a tube of 6mm O.D.）and Miniature fitting（for a tube of 4mm I.D.）
（Panel type only）
Thank you for purchasing a
NIDEC COPAL ELECTRONICS CORP. product.
For proper and optimal use of the product, please read this
manual thoroughly before using.
Keep this manual for future reference.
Ver.5.1
Nishi-Shinjuku Shinjuku-ku Tokyo 160-0023, Japan Phone. ： (03) 3364-7055
Table 1
102VP
102AP
102GP
103GP
103GMP
101GP
＊ 1：102AP...kPa abs
Table 2
Panel
Stand
＊See§3 Terminal Wiring
For more detailed information please ask for the
nearest distributor or the following sales center.
Nishi-Shinjuku Kimuraya Bidg. , 7-5-25
PRESSURE RANGE
0〜−100.0
0〜100.0
※1
0〜100.0
0〜1000
0〜1.000
※2
0〜10.00
＊ 2：103GMP...MPa
SWITCH
TYPE
OUTPUT
−P HI、LO
−1−P HI、LO
−3−P HI
−S HI、LO
−1−S HI、LO
−3−S HI、LO
MAX Break-down
RESOLUTION
PRESSURE Pressure
200 500
200 500
200 500
1500 2000
1.5 2.0
20 50
OPTIONAL
POWER SOURCE
OUTPUT
− Internal lithium battery
− External 5〜24 Vdc
Voltage Same as above
− Internal lithium battery
− External 5〜24 Vdc
Voltage Same as above
（kpa）
0.1
0.1
0.1
1
0.001
0.01
＊
＊
1
