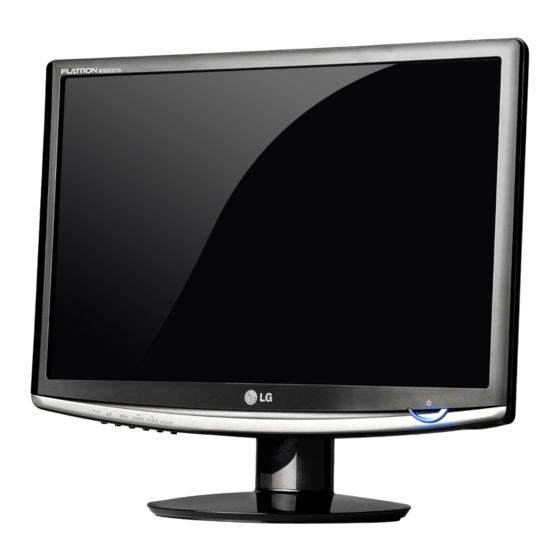

LG W1954TQ User Manual

Tft lcd monitor
Hide thumbs

Advertisement

M
ake sure to read the Important Precautions before using the product.
Keep the User's Guide(CD) in an accessible place for future reference.
S
ee the label attached on the product and give the information to your
dealer when you ask for service.
User's Guide
W1954TQ
W2254TQ

Advertisement

loading

  Also See for LG W1954TQ

  Related Manuals for LG W1954TQ

  Summary of Contents for LG W1954TQ

  • Page 1 Important Precautions before using the product. Keep the User's Guide(CD) in an accessible place for future reference. ee the label attached on the product and give the information to your dealer when you ask for service. User’s Guide W1954TQ W2254TQ...
  • Page 2: Important Precautions

    Important Precautions This unit has been engineered and manufactured to ensure your personal safety, however improper use may result in potential electrical shock or fire hazards. In order to allow the proper operation of all safeguards incorporated in this display, observe the following basic rules for its installation, use, and servicing.
  • Page 3 Important Precautions Do not use this display near water such as near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool. Displays are provided with ventilation openings in the cabinet to allow the release of heat generated during operation.
  • Page 4: Connecting The Display

    Connecting the Display Before setting up the monitor, ensure that the power to the monitor, the computer system, and other attached devices is turned off. Connecting the stand Place the monitor with its front facing downward on a soft cloth. Assemble the Stand Base(Front, Rear) into the Stand Body in the correct direction.
  • Page 5: Disassembling The Stand

    Connecting the Display Disassembling the stand Put a cushion or soft cloth on a flat surface. Change your lock on the product as it follows and turn it in the arrow direction. If you can't release the stand base even the locking rib is at a release position, Please push the indicated rib down and retry it.
  • Page 6: Positioning Your Display

    Connecting the Display Before setting up the monitor, ensure that the power to the monitor, the computer system, and other attached devices is turned off. Positioning your display Adjust the position of the panel in various ways for maximum comfort. Tilt Range: -5˚~15˚...
  • Page 7: Using The Computer

    Connecting the Display Using the Computer Make sure to turn off the computer and product. Connect the cable as below sketch map form Connect DVI-D Cable Connect D-sub Cable (PC) Connect D-sub Cable (Mac) NOTE This is a simplified representation of the rear view. This rear view represents a general model;...
  • Page 8: Using The Cable Holder

    Connecting the Display Using the cable holder (This feature is not available in all models.) Cable holder...
  • Page 9: Front Panel Controls

    Control Panel Functions Front Panel Controls Control Button Button MENU Button Function Use this button to enter CINEMA MODE,AUTO BRIGHT,TIME CONTROL,LIVE SENSOR,SMART items,for more information,refer to page A16. Use this button to enter EZ ZOOMING, 4:3 IN WIDE, PHOTO EFFECT items, for more information, refer to page A17-A18.
  • Page 10 (display mode). The best display mode is: W1954TQ : 1440 x 900 W2254TQ : 1680 x 1050 Use this button to turn the display on or off.
  • Page 11: On Screen Display (Osd) Control Adjustment

    On Screen Display (OSD) Control Adjustment Screen Adjustment Making adjustments to the image size, position and operating parameters of the display is quick and easy with the On Screen Display Control system. A short example is given below to familiarize you with the use of the controls. The following section is an outline of the available adjustments and selections you can make using the OSD.
  • Page 12: On Screen Display(Osd) Selection And Adjustment

    On Screen Display(OSD) Selection and Adjustment The following table indicates all the On Screen Display control, adjustment, and setting menus. Main menu Sub-menu CINEMA MODE AUTO BRIGHT TIME CONTROL LIVE SENSOR SMART EZ ZOOMING 4:3 IN WIDE NORMAL GAUSSIAN BLUR PHOTO EFFECT SEPIA...
  • Page 13 On Screen Display(OSD) Selection and Adjustment You were introduced to the procedure of selecting and adjusting an item using the OSD system. Listed below are the icons, icon names, and icon descriptions of the all items shown on the Menu. Press the MENU Button, then the main menu of the OSD appears.
  • Page 14 On Screen Display(OSD) Selection and Adjustment Main menu PICTURE PICTURE MENU : Exit : Decrease : Increase SET : Select another sub-menu COLOR COLOR MENU : Exit : Decrease : Increase SET : Select another sub-menu Sub menu Description To adjust the brightness of the screen. BRIGHTNESS To adjust the contrast of the screen.
  • Page 15 On Screen Display(OSD) Selection and Adjustment Main menu TRACKING TRACKING MENU : Exit : Decrease : Increase SET : Select another sub-menu Sub menu Description To move image left and right. HORIZONTAL To move image up and down. VERTICAL To minimize any vertical bars or CLOCK stripes visible on the screen background.
  • Page 16 On Screen Display(OSD) Selection and Adjustment Main menu SETUP SETUP MENU : Exit : Adjust : Adjust SET : Select another sub-menu If this does not improve the screen image, restore the factory default settings. If necessary, perform the white balance function again. This function will be enabled only when the input signal is an analog signal.
  • Page 17 On Screen Display(OSD) Selection and Adjustment The OSD screen will appear when you touch the smart button on the right bottom of the monitor. Main menu CINEMA MODE AUTO BRIGHT TIME CONTROL LIVE SENSOR SMART Sub menu It focuses better on the moving picture in selected area.
  • Page 18 On Screen Display(OSD) Selection and Adjustment The OSD screen will appear when you touch the FUN button on the right bottom of the monitor. Main menu EZ ZOOMING 4:3 IN WIDE Sub menu EZ Zoom lowers the display’s resolution in single-step increments.
  • Page 19 On Screen Display(OSD) Selection and Adjustment Main menu PHOTO EFFECT Sub menu - NORMAL: The PhotoEffect function is disabled. - GAUSSIAN BLUR: This option is to add the effect to the screen that the dark and sharp image becomes brighter and more blurred. - SEPIA: This option changes the screen to be Sepia tone.
  • Page 20 On Screen Display(OSD) Selection and Adjustment The OSD screen will appear when you touch the the monitor. Menu Name Icons Sub-menu Name Main menu MENU : Exit : Move SET : Select To adjust the USER sub-menu function,press the AUTO/SET Button. MENU : Exit : Decrease : Increase...
  • Page 21: Troubleshooting

    Troubleshooting Check the following before calling for service. No image appears No image appears Is the power cord of the display connected? Is the power indicator light on? Is the power indicator flickering? Do you see an "OUT OF RANGE" message on the screen? Do you see a "CHECK SIGNAL CABLE"...
  • Page 22: Display Image Is Incorrect

    Troubleshooting Display image is incorrect Display Position is incorrect. On the screen background, vertical bars or stripes are visible. Any horizontal noise appearing in any image or characters are not clearly portrayed. Important Check Control Panel --> Display --> Settings and see if the frequency or the resolution were changed.
  • Page 23: Unrecognized Monitor

    Troubleshooting Display image is incorrect The screen color is mono or abnormal. The screen blinks. Have you installed the display driver? Have you installed the display driver? Do you see an "Unrecognized monitor, Plug&Play (VESA DDC) monitor found" message? • Check if the signal cable is properly connected and use a screwdriver to fasten if necessary.
  • Page 24: Specifications

    10 % to 80 % non-Condensing Temperature -20˚C to 60 ˚C Humidity 5 % to 90 % non-Condensing ), Detached ( O ) W1954TQ Without Stand 45.05 cm / 17.73 inches 32.67 cm / 12.86 inches 6.00 cm / 2.36 inches...
  • Page 25 Specifications Display 22 inches (55.8 cm) Flat Panel Active matrix-TFT LCD Anti-Glare coating Visible diagonal size: 55.8 cm 0.282*0.282 mm pixel pitch Horizontal Freq. Sync Input Vertical Freq. Input Form Video Input Signal Input Input Form Resolution Recommend Plug&Play DDC 2B (Digital), DDC 2AB (Analog) Power On Mode Consumption...
  • Page 26: Preset Modes (Resolution)

    Specifications Preset Modes (Resolution) W1954TQ Display Modes (Resolution) 640 x 350 720 x 400 640 x 480 640 x 480 800 x 600 800 x 600 832 x 624 1024 x 768 1024 x 768 1152 x 870 1152 x 900...
  • Page 27 Digitally yours...

This manual is also suitable for:

W1954tq-pfW2254tqW2254tq-pf
