Biamp MDS Installation & Operation Manual

MDS Microphone Discussion System
.Installation & Operation Guide

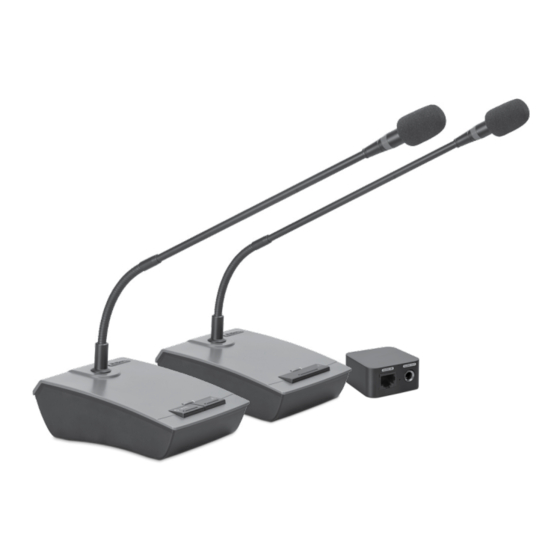

PRODUCT DESCRIPTION
The MDS microphone discussion system is a highly
flexible small to medium size tabletop discussion system
using a unique circuit loop design: easy to set up, using
standard Cat 5 cables for linking up to 20 units in a daisy
chain. The system accepts one chairman unit and up to 19
delegate units.
The power supply unit can be connected anywhere in the
chain, preferably in the middle of the system when more
than 10 units are connected. The chairman and power
supply unit can be located anywhere in the system. The
microphones are equipped with easily identifiable LEDs
on the base unit and the flexible gooseneck microphone.
Some models have a telescopic neck.
FEATURES
• The delegate unit MDS.DEL is equipped with a talk
button. When the microphone is active, the LED
indicator above the talk button and the colored LED
ring on the microphone is lit. Press the talk button to
activate the microphone. Press the talk button again
to deactivate.
• The chairman unit is equipped with a talk and mute
button. When the mute button is pressed, only the
chairman unit will be active. All delegate microphones
will be muted and deactivated. The LED on the
chairman unit will blink when the mute function is
active. It will light up steady when the talk button is
pressed (equivalent to the delegate unit).
A: 9300 S.W. Gemini Drive Beaverton, OR 97008 USA
SETUP AND USE
The interconnection cable is a Cat 5 standard straight
cable, according to EIA-568-B. Maximum cable length is
determined by the number of units in use. In a system with
20 units, the recommended maximum length between
each unit is 5 meters.
The Cat 5 cables are inserted at the rear of the MDS units.
Every unit has an IN and OUT connector, however, both
connectors are equivalent. It doesn't matter where you
connect the Cat 5 cable.
Example: for a system with 9 delegate microphones and 1
chairman unit, you need:
• 1 x MDS.INT connection interface with power supply
• 1 x MDS.CHAIR chairman unit
• 9 x MDS.DEL delegate units
• 10 x standard straight Cat 5 cables (not supplied with the
MDS units)
• It is not necessary to have a chairman unit in a system. Only
one chairman unit can be used in a system.
• Do not speak loudly into the microphone from a short
distance. The ideal distance to the microphone is 15 to 50
cm.
• Only use the power supply supplied with the MDS.INT unit.
• Do not connect the Cat 5 cables from the MDS system to a
computer network, router or network switch.
• To prevent feedback noise, turn down the gain levels of all
units before operating the system.
• Maximum system cable length: 100 m (10 x 10 m - 20 x 5 m)
