- Page 1 Networked Paging Station-1 Operation Manual Biamp Systems | 9300 S.W. Gemini Drive | Beaverton, OR | 97008 | USA | +1.503.641.7287 | www.biamp.com...
- Page 2 blank 4Sep07...
-
Page 3: Table Of Contents

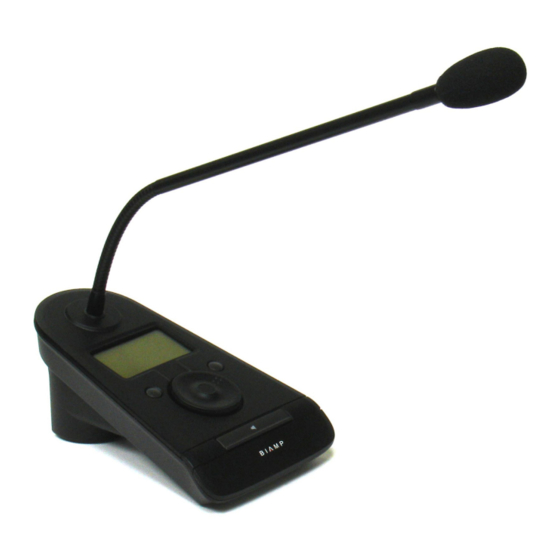

Paging Station TABLE OF CONTENTS INTRODUCTION Networked Paging Station-1 is a microphone console using a single cable to Front Panel Controls pg. 2 carry audio, control, and power, with an innovative user-interface, designed Rear Panel Connectors pg. 3 exclusively for use with AudiaFLEX systems. It provides a powerful and easy-... -
Page 4: Front Panel Controls
Networked Paging Station-1 - Front Panel Controls LCD Panel: This Liquid Crystal Display panel provides menus, selections, and status indication during setup and normal operation. Cancel : This physical button is used to cancel or exit from selected functions during setup, or to cancel multiple page routing selections during normal operation. -
Page 5: Rear Panel Connectors
Networked Paging Station-1 setup functions without an available CobraNet network connection (PoE). power + data: This RJ45 connector utilizes CAT5 cabling to interface the Networked Paging Station-1 to an AudiaFLEX system. This connection is made to the primary CobraNet port of an AudiaFLEX unit, either directly (single station) or via network switches (multiple stations). -
Page 6: Setup Pgs. 4
Networked Paging Station-1 - Setup Setup can be done with or without the unit connected to a functional AudiaFLEX system. To enter setup, turn the Scroll Wheel while holding down all three buttons (Cancel, Enter, & Push-To-Talk). An icon in the lower-left corner of the LCD panel indicates that pressing ®... - Page 7 Networked Paging Station-1 - Setup To change the microphone input gain, scroll to the Mic icon and press Enter. Use the Scroll Wheel and Enter button to make a selection. Use the Cancel button to exit from a selection or screen. The default setting (16dB) may be sufficient for most applications.
-
Page 8: System Connections Pgs. 6
Paging Station-1 units and all AudiaFLEX units should be connected together on a common CobraNet network. In the system design, each Networked Paging Station-1 unit is associated by name with a Networked Paging Station block (Station ID). Multiple Networked Paging Station-1 units may be assigned the same name (Station ID), and will assume identical page routing schemes (soft-buttons) as those programmed in the corresponding Networked Paging Station-1 block. - Page 9 Networked Paging Station-1 - System Connections...
-
Page 10: Specifications & Block Diagram
SPECIFICATIONS & BLOCK DIAGRAM... -
Page 11: Warranty
WARRANTY BIAMP SYSTEMS IS PLEASED TO EXTEND THE FOLLOWING 5-YEAR LIMITED WARRANTY TO THE ORIGINAL PURCHASER OF THE PROFESSIONAL SOUND EQUIPMENT DESCRIBED IN THIS MANUAL 1. BIAMP Systems warrants to the original purchaser of new THIS WARRANTY IS IN LIEU OF ALL OTHER products that the product will be free from defects in material WARRANTIES, EXPRESS OR IMPLIED. -
Page 12: Ce Declaration
DIRECTIVES below except as noted herein. Any alterations to the product not agreed upon and directed by Biamp Systems Corporation will invalidate this declaration. Product Models: Networked Paging Station 1 Product Description: Desk Paging Station for networking with audio DSPs.
